Yk-Phd1610 CNC Drilling and Marking Machine for Steel Plates in Tower Fabrication

Product Description

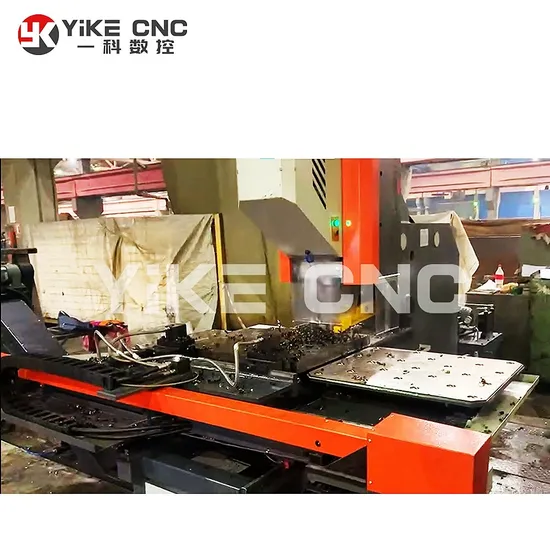

YK-PHD1610 CNC drilling and marking machine for steel plates in tower fabrication
Product Description
APPLICATION INDUSTRY:
Used for drilling steel plates/ joint plate/ connection plates in the field of angle tower transmission, steel structure and steel bridges.
PRODUCT FEATURES:
The machine-frame is made by C-type structure, with good rigidity and big handling space. Clamping system can adapt to different work pieces. There is a drilling spindle box, mounted on a CNC servo feed sliding table, vertical direction of drilling processing. Spindle adopts precision spindle, high rotation precision, good rigidity. Equipped with BT40 cone hole, with a butterfly spring automatic broach mechanism, hydraulic cylinder tools loosen, tools change is convenient. The workpiece is fixed by hydraulic clamping. There are 1 hydraulic cylinder side positioning device,1 vertical pressing cylinder and 2 hydraulic clamps to position and clamp the workpiece respectively. The machine is equipped with automatic lubrication device, which can automatically lubricate the moving pairs such as guide rail and screw. Product Parameters

Model		YK-PH1610
Max size of work piece L×W, mm		1600×1000
Marking unit (Optional)	Marking force, kN	80
	Character size, mm	14x10
	Qty. of characters	40
Drilling spindle	Qty. spindle	1
	Spindle taper	BT40
	Max. Drill diameter, mm	Φ40
	Drill thickness, mm	≤40
	Spindle speed, r/min	30-3000
	Motor power of spindle, kW	15
	Spindle feeding stroke, mm	300 (100~400)
Min. distance between hole and plate edge, mm		25
Qty. of hydraulic clamps		2
Programming mode		Auto CAD or lofting software
Total power (kW)		≈ 35
Overall dimensions, L*W*H		≈ 3500*3400*2800
Gross weight of machine, kg		≈ 8200
