Two-component Dual Plunger Melt spinning Machine

Product Description

Product Description

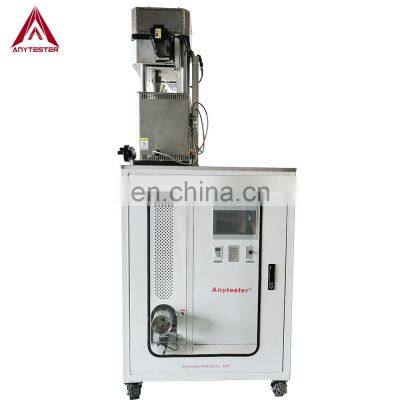

Product DescriptionAT226 Series Plunger-type Melt Spinning Machine is used to carry out the melt spinning of polypropylene, polyester, polyamide and other special materials with plunger metering system. The raw material melts and flows into the plunger-type cylinder. The plunger-type cylinder driven by the servo motor can precisely monitor and control the flow of melt liquid. The melt liquid passes through the filtering plate, distributing plate and then is extruded through the spinneret plate to spin. The spun fiber can be direct wound onto the winding roll or passes through coagulating bath (optional), heat stretching (optional), relax hot setting (optional) and then be wound onto the winding roll.SpecificationModelAT226AAT226BNumber of plunger metering part12Material-feeding partStructureScrew feeder & driving motorAdjust screw speed to control feeding amountMaterial316L stainless steelDesigned capacity of stock bin200mlPower of driving motor200WPlunger metering partStructureMelting & meteringCylinder material of plunger pump306 stainless steelInner diameter40mmLength100mmDesigned pressure5MpaHeat power2000WTemperature controlling rangeRT+10~450℃Controlling accuracy±0.5℃Heat modeCeramic heat loopMetering pumpOperating temperature≤450℃Heat methodElectric heatingCapacity of pump22~30000kmol/hourSpinning partMaterial of spinneret plateSUS630Number of spinneret orifice1Number of mesh on filtering plate200Ratio of length to diameter of spinneret plate2.5:1Spinning temperature rangeRoom temperature~320℃Max. heat power of furnace1.5KWWindingMotor power0.4KWMax. rotation speed2800r/minSize of winding roll¢200×200mmPacking & DeliveryPackagingPackage Size(cm)120*90*180CMWeight350 KgPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment ItemT/TEXWFOBCFR(C&F)CIF50% T/T in advance, paid the balance before shipmentFOBCFR(C&F)50% T/T in advance,paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 50,000usdDelivery Time60 days after receiving payment for one containerRecommend ProductsOur CompanyHistorySince 1982 with more than 20 years' experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productContacting Us Lily ChengWebsiteMobile Phone+86 180 5517 3820Whatsapp+86 180 5517 3820Skype 1933039910@qq.comWechat+86 180 5517 3820
