Monthly Deals Sheet Metal Coil Decoiler Straightener for Automatic Press Line
| US$3,000.00-20,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
UL
Usage
Sheet
Voltage
380V
Automatic Grade
Automatic
Principle
Small Deformation
Certification
TUV, CCC, ISO9001, CE
Warranty
12 Months
Customized
Customized
Condition
New
Straightener
2 in 1 Decoiler Straightener
Coil Pressure Arm
Optional
Inverter
Optional
Expansion Type
Manual or Hydraulic
Coil Diameter
1200mm
Color
Customized
Transport Package
Wood Box
Specification
coil with up to 600mm
Trademark
WORLD
Origin
China
HS Code
84622190
Production Capacity
1000PCS/Year
Product Description

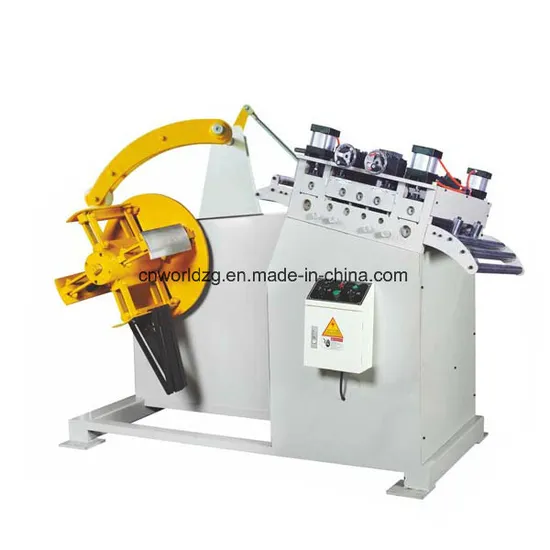

sheet metal coil decoiler straightener for automatic press line a) Straightener and decoiler are combined in one machine, reducing overall dimension, saving space and reducing feeding error.b) All rolls are made of solid bearing steel, have all been quenched, hard-chrome plated, high-hardness, strong resistance to abrasion long service life.
c) The machine adopts air cylinder pressing material, straightening gap adjustment adopts synchronous worm gear, turning the handle one cycle can adjust the roller height 1mm. So as to very suitable for thickness material and having high precision adjustment.
d) Suit for stamping and processing all kinds of Hardware, Toy, Auto parts, then feeding and straightening, accurate and durable.
Specifications
| Model No | UL-200A | UL-300A | UL-400A | UL-500A | UL-600A |
| Material thickness | 0.3-2.2mm | 0.3-2.2mm | 0.3-2.2mm | 0.3-2.2mm | 0.3-2.2mm |
| Material width | 200mm | 300mm | 400mm | 500mm | 600mm |
| Straightener roller | Upper 3/lower 4 | Upper 3/lower 4 | Upper 3/lower 4 | Upper 3/lower 4 | Upper 3/lower 4 |
| Feeding roller | 4set | 4set | 4set | 4set | 4set |
| Straightening speed | 15m/min | 15m/min | 15m/min | 15m/min | 15m/min |
| Straightening part adjustment | 4 manual wheel | 4 manual wheel | 4 manual wheel | 4 manual wheel | 4 manual wheel |
| Coil inner diameter | ∅450-530mm | ∅450-530mm | ∅450-530mm | ∅450-530mm | ∅450-530mm |
| Coil outer diameter | ∅1200mm | ∅1200mm | ∅1200mm | ∅1200mm | ∅1200mm |
| Coil weight | 500kg | 1000kg | 1000kg | 2000kg | 3000kg |
| Coil press arm | OPTIONAL PART | OPTIONAL PART | OPTIONAL PART | OPTIONAL PART | OPTIONAL PART |
| Expansion method | MANUAL | MANUAL | MANUAL | MANUAL | MANUAL |
| Model No | UL-200B | UL-300B | UL-400B | UL-500B | UL-600B |
| Material thickness | 0.4-3.5mm | 0.4-3.5mm | 0.4-3.5mm | 0.4-3.5mm | 0.4-3.5mm |
| Material width | 200mm | 300mm | 400mm | 500mm | 600mm |
| Straightener roller | Upper 3/lower 4 | Upper 3/lower 4 | Upper 3/lower 4 | Upper 3/lower 4 | Upper 3/lower 4 |
| Feeding roller | 4set | 4set | 4set | 4set | 4set |
| Straightening speed | 15m/min | 15m/min | 15m/min | 15m/min | 15m/min |
| Straightening part adjustment | 4 manual wheel | 4 manual wheel | 4 manual wheel | 4 manual wheel | 4 manual wheel |
| Coil inner diameter | ∅450-530mm | ∅450-530mm | ∅450-530mm | ∅450-530mm | ∅450-530mm |
| Coil outer diameter | ∅1200mm | ∅1200mm | ∅1200mm | ∅1200mm | ∅1200mm |
| Coil weight | 500kg | 1000kg | 2000kg | 2000kg | 3000kg |
| Coil press arm | OPTIONAL PART | OPTIONAL PART | OPTIONAL PART | OPTIONAL PART | OPTIONAL PART |
| Expansion method | MANUAL | MANUAL | MANUAL | MANUAL | MANUAL |
