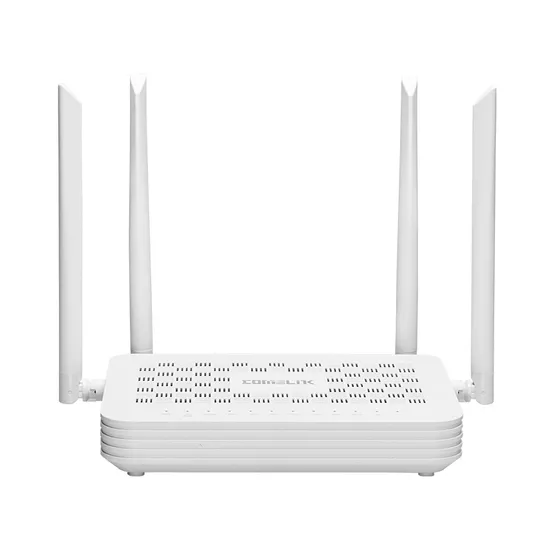

Kexint Xpon ONU Dual Band 3000Mbps Ax3000 WiFi6 ONU
Basic Info.
Model NO.
COME-4463G
Certification
CE, ISO, RoHS
Condition
New
Antenna
4
Distance
0~ 20km Max
Chipset
5vt, 2518+Mtk Mt7916+Mt7976
Max. LAN Data Rate
3000Mbps
Function
Easy Mesh Function
Keywords
Itu-T G.984.X and IEEE802.3ah
External Power Supply
DC 12V/1.5A
Transport Package
Carton
Specification
150mm*100mm*40mm
Trademark
KEXINT
Origin
China
HS Code
8517622990
Packaging & Delivery
Package Size
35.00cm * 30.00cm * 15.00cm
Package Gross Weight
4.000kg
Product Description
Product DescriptionThe AX3000 WIF6 ONU is a GPON optical terminal access device (AX3000Mbps) that is highly integrated with dual-frequency Wi-Fi6. It is the end-product of optical fiber for operators. It supports ultra-bandwidth access through GPON upstream technology and provides users with basic WIFI functions, routing, and gigabit Ethernet functions.
The upstream network ports of the UT-GP4491 are GPON ports. The downstream user ports include four GE electrical ports, one USB port, one TEL port, and AX3000 WiFi6 WLAN ports.
Downstream rates of up to 2.488Gbps for GPON mode, 1.244Gbps for EPON mode, and upstream rates up to 1.244Gbps Fiber access and gigabit ports provide incredibly fast transfer speeds
Supports802.11AX,Dual-band WIFI6 AX3000 (2 ×2 MIMO (2.4G&5G))
Supports OMCI (ONT Management Control Interface) and OAM remote management
Easy MESH function Detailed Photos Product Parameters
| XPON Standards | ITU-T G.984.x and IEEE802.3ah |
| Chipset | 5VT, 2518+MTK MT7916+MT7976 |
| Interface | 1 SC/UPC Port or 1 SC/APC Port4 10/100/1000Mbps RJ45 Port1 POTS Port 1 TEL PORT 1 USB WIFI (2.4G & 5.8G) |
| Data Rates & Wavelength | Upstream:1.244Gbps, 1310nmDownstream:2.488Gbps for GPON mode and 1.244Gbps for EPON mode, 1490nm |
| Distance | 0~ 20Km Max |
| External Power Supply | DC 12V/1.5A |
| Dimensions (Length * Width * Height) | 150mm×100mm×40mm |
| Weight (Full-Loaded) | ≤0.5kg |
| Environmental Requirements | Working temperature: 0°C~40°CStorage temperature: -40°C~70°CRelative humidity: 10%~90%, non-condensing |
| XPON Standards | ITU-T G.984.x and IEEE802.3ah |
| Chipset | 5VT, 2518+MTK MT7916+MT7976 |
| Interface | 1 SC/UPC Port or 1 SC/APC Port4 10/100/1000Mbps RJ45 Port1 POTS Port 1 TEL PORT 1 USB WIFI (2.4G & 5.8G) |
| Data Rates & Wavelength | Upstream:1.244Gbps, 1310nmDownstream:2.488Gbps for GPON mode and 1.244Gbps for EPON mode, 1490nm |
| Distance | 0~ 20Km Max |
| External Power Supply | DC 12V/1.5A |
| Dimensions (Length * Width * Height) | 150mm×100mm×40mm |
| Weight (Full-Loaded) | ≤0.5kg |
| Environmental Requirements | Working temperature: 0°C~40°CStorage temperature: -40°C~70°CRelative humidity: 10%~90%, non-condensing |
| XPON Standards | ITU-T G.984.x and IEEE802.3ah |
| Chipset | 5VT, 2518+MTK MT7916+MT7976 |
| Interface | 1 SC/UPC Port or 1 SC/APC Port4 10/100/1000Mbps RJ45 Port1 POTS Port 1 TEL PORT 1 USB WIFI (2.4G & 5.8G) |
| Data Rates & Wavelength | Upstream:1.244Gbps, 1310nmDownstream:2.488Gbps for GPON mode and 1.244Gbps for EPON mode, 1490nm |
| Distance | 0~ 20Km Max |
| External Power Supply | DC 12V/1.5A |
| Dimensions (Length * Width * Height) | 150mm×100mm×40mm |
| Weight (Full-Loaded) | ≤0.5kg |
| Environmental Requirements | Working temperature: 0°C~40°CStorage temperature: -40°C~70°CRelative humidity: 10%~90%, non-condensing |
| XPON Standards | ITU-T G.984.x and IEEE802.3ah |
| Chipset | 5VT, 2518+MTK MT7916+MT7976 |
| Interface | 1 SC/UPC Port or 1 SC/APC Port4 10/100/1000Mbps RJ45 Port1 POTS Port 1 TEL PORT 1 USB WIFI (2.4G & 5.8G) |
| Data Rates & Wavelength | Upstream:1.244Gbps, 1310nmDownstream:2.488Gbps for GPON mode and 1.244Gbps for EPON mode, 1490nm |
| Distance | 0~ 20Km Max |
| External Power Supply | DC 12V/1.5A |
| Dimensions (Length * Width * Height) | 150mm×100mm×40mm |
| Weight (Full-Loaded) | ≤0.5kg |
| Environmental Requirements | Working temperature: 0°C~40°CStorage temperature: -40°C~70°CRelative humidity: 10%~90%, non-condensing |
