Jet Universal Milling Machine Xz6326 Senmo China for Sale
| Negotiable | 1 Set (MOQ) |
Basic Info.
Model NO.
XZ6326
Type
Worktable Milling Machine
Structure
Rocker
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
CE
Condition
New
Table Size
1120X260mm
Size (Width)
14mm
Centre Distance
50mm
Transport Package
Full Closed Plywood Box
Trademark
SENMO
Origin
China
HS Code
84596990
Product Description

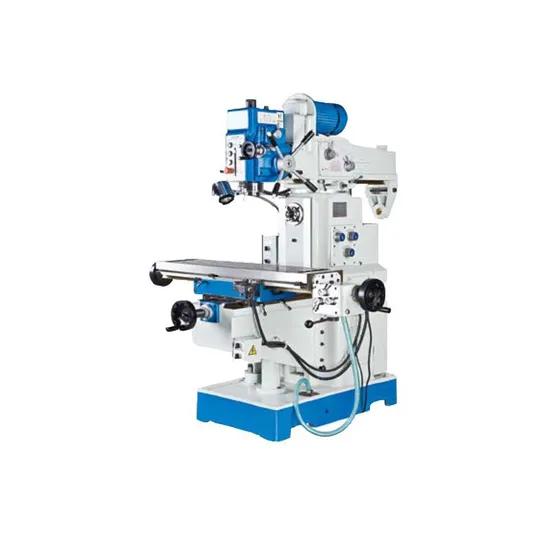

| Universal Milling Machine XZ6326 |
| Specifications | XZ6326 |
| Table size | 1120x260mm |
| T slot | 5 |
| Size (Width) | 14mm |
| Centre distance | 50mm |
| Max. load of table | 200kg |
| Longitudinal travel (manual/auto) | 600mm |
| Table cross travel (manual/auto) | 300mm |
| Table vertical travel (manual/auto) | 380mm |
| Spindle taper | ISO40 |
| Spindle speed/step--Vertical | 67-2010rpm/12steps |
| Spindle speed/step--Horizontal | 38-1310rpm/12steps |
| Max.drilling dia. | 30mm |
| Max. end milling width | 125mm |
| Max. vertical milling dia. | 25mm |
| Max. tapping dia. | M16mm |
| Quill travel | 120mm |
| Swivel angle of headstock | ±45º |
| Vertical spindle axis to column surface | 220-760mm |
| Vertical spindle nose to table surface | 80-460mm |
| Horizontal spindle axis to table surface | 0-380 |
| Horizontal spindle axis to arm bottom | 175mm |
| Arm travel | 520mm |
| Longitudinal/cross feed | 24-720mm/min/8steps |
| Vertical/step | ― |
| Longitudinal/cross rapid speed | 1040mm/min(X) |
| Rapid traverse vertical | ― |
| Automatic spindle feed | 0.1/0.15/0.3mm/rev (3steps) |
| Main motor | 1.5/2.2kw(V)/2.2kw(H) |
| (X/Y/Z) feed motor | 0.37kw(X) |
| Coolant motor | 0.04kw |
| Packing size | 160x152x222cm |
| N.W/G.W | 1350/1500kg |
| Standard Accessories | Optional Accessories |
| Machine Work lamp | Digital readout system |
| Coolant system | Spindle protect guard |
| CE electrical cabinet | Pendent control station |
| Drill chuck | Dividing head device |
| Drawbar | Rotary table |
| Chip tray | Clamping kit |
| Manual lubrication oil pump | Vice |
| X axis geared power feed | Y axis electronic power feed |
Our Services
What we can do for you? 1. Experienced staffs answer all your questions in time. 2. Customized design is available, more details to let you know our machines well. 3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
