US$20,000.00-40,000.00
|
1 Set
(MOQ)
|
Basic Info.
Classification of Financial Binding Machine
Full-automatic
Classification of Wire Binding Machine
Depends on Customer Require
Specification
9m*4.7m*2.7m
Product Description

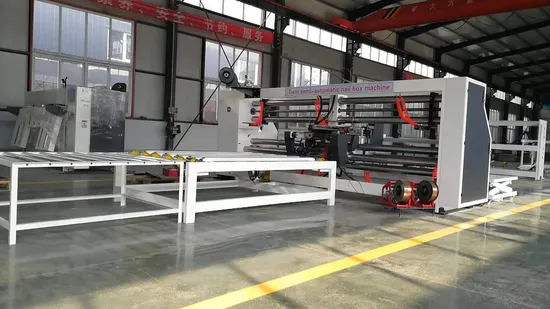

Automatic single piece type stitching machine 2600 model detailed specifications:
model | QS-2600 | Max. Paper size | 1200×2550mm |
Mechanical speed | 600/ 600 nails/min | Min. Paper size | 300×606mm |
Nailing distance | 30-120mm(can be adjusted within this range) | Total power | 10HP |
Nailing number | 1-99 nails | Box specification | ::780 200 Length: max:780 min:200 :580 :180 Width: max:580 min:180 |
Nailing types | ,, Single/double/strengthen | Machine external size | L10000mmW2300mmH:1800mm |
Nailing line specifications | 2.0mm×(0.65-0.75mm) | Machine weight | 5 T |
:
Note:Machine external size is loading container size
Main spare parts list:
No. | Name | Brand | Origin | Note |
01 | Machine head servo motor | YASKAWA | JAPAN | |
02 | Feeding servo motor | YASKAWA | JAPAN | |
03 | PLC | Omron | JAPAN | |
04 | , Contactor /intermediate relay | SHSL | Taiwan | |
05 | Reducer | ZhenYu | Hangzhou | 2 2 sets |
06 | Reducer | ZhenYu | Hangzhou | 2 2 sets |
07 | , Photoelectric/proximity switch | Schneide | France | |
08 | Touch screen | WEINVIEW | Taiwan | |
09 | Circuit breaker | Schneide | France | |
10 | Bearings | C&U | Jiangsu | |
11 | Stitching head whole unit | Changping | Guangdong | |
12 | Inverter | Delta | Taiwan | |
13 | , Cylinder,solenoid valve | Airtack | Taiwan | |
:
High speed automatic stitching machine main spare parts and functions instructions:
★,,,.
Imported double servo drive,accurate precision,reduce mechanical transmission part,can effectively reduce the mechanical failures.
★,(,,,).
The stitching machine adopts touch screen operation,parameters(nailing distance,nailing number,nail type and rear baffle)setting process are convenient and fast.
★PLC.
The whole control system of the stitching machine adopts Omron PLC control system.
★.
All the switches in the control box are produced by Taiwan SHSL.
★,()
Base mold and blade of the automatic stitching machine adopt German tungsten steel(wear resistant) material.
★,,.
The whole set of stitching head are made of special steel,computer gong precision processing.
★/,//,.
Single and double nailing can be done at one time,can meet different requirements of different customers.
★
Feeding unit is equipped with electric adjusting mechanism.
★
Equipped with pneumatic clapping function.
★
Main machine electric movement.
★
Carton size computer adjustment and supporting fine-tuning system.
,,,,,,,,,,,..
Regarding the feeding system of the machine,stitching head and rear baffle are all adopt servo motor drive.Operating on the touch screen to adjust mechanical rear baffle directly,accurate,convenient and no need workers measure the size with a ruler to adjust the machine,which changes the shortcomings of ordinary automatic stitching machine using gears and bearings to drive the machine,reduce the failure rate of the machinery,and prolong the service life.It's an ideal equipment for the carton factory.
