Custom Colors SAE 100 R7/R8 Thermoplastic Nylon PU Rubber Hydraulic Hose

Product Description

Product Description SAE 100 R7 Thermoplastic Hydraulic Hose:
SAE 100R7 is a thermoplastic elastomer hydraulic hose used for medium-pressure applications. It is typically used to convey petroleum-based fluids, water-based fluids, liquefied petroleum gas, fuels, and liquid transfer in low to medium-pressure hydraulic systems. It applies to various industries such as construction, mining, agriculture, shipbuilding, machinery, automotive, and aerospace. Due to its good chemical stability and wear resistance, SAE 100R7 is also commonly used for hydraulic transmission in high-temperature environments.
FEATURES: 1. The resin hose is made of special synthetic rubber, which has excellent oil resistance, heat resistance and aging resistance.
2. The resin hose has high pressure and excellent pulse performance. 3.The tube body is tightly combined, soft in use, and small in deformation under pressure.
4. Resin hose has excellent bending resistance and fatigue resistance.
5. The length of the steel wire wound resin hose is 20 meters, and it can be made within 50 meters according to the requirements. CONSTRUCTION: This hose shall consist of a thermoplastic inner tube, and a layer of synthetic fiber reinforcement, and a hydraulic fluid and weather resistant thermoplastic cover. APPLICATIONS: This section covers hose for use with petroleum base hydraulic fluids within a temperature range of -40ºC~ +93ºC. Medium pressure hydraulic and pneumatic systems. Meets or exceeds SAE 100R7 requirements. For pneumatic or gaseous systems, use perforated (pin-pricked) hose. Construction and agricultural equipment - Agricultural brake systems- Forklift Trucks - Articulating and telescopic booms - Aerial platforms Scissor lifts - Cranes - General hydraulics - Industrial gases SAE 100 R8 Thermoplastic Hydraulic Hose SAE 100 R8 thermoplastic hydraulic hose is suitable for delivering synthetic, petroleum or water-based hydraulic fluids and it is mainly used in high pressure working conditions. It is composed of three parts: tube, reinforcement and cover. The tube is made from high quality hydraulic fluids resistant thermoplastic, making the hose widely used for the delivery of hydraulic fluids. The reinforcement is made from suitable synthetic fiber. The cover is made from weather and hydraulic fluids resistant thermoplastic, making the hose have longer service life.

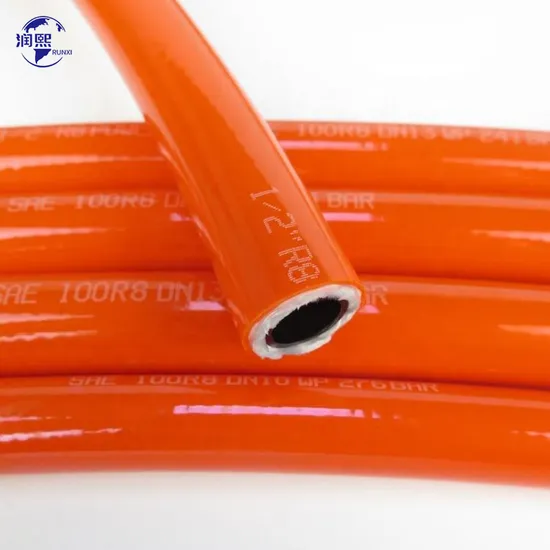

SAE 100 R8 hose shall consist of a thermoplastic(such as nylon, polyurethane, or polyester) inner tube resistant to hydraulic fluids with suitable synthetic fiber reinforcement, and a hydraulic fluid and weather resistant thermoplastic cover.

CONSTRUCTION:
This hose shall consist of a thermoplastic inner tube, and a layer of synthetic fiber reinforcement, and a hydraulic fluid and weather resistant thermoplastic cover.

APPLICATIONS:
This section covers hose for use with petroleum base hydraulic fluids within a temperature range of -40ºC~ +93ºC.
Medium pressure hydraulic and pneumatic systems. Meets or exceeds SAE 100R7 requirements. For pneumatic or gaseous systems, use perforated (pin-pricked) hose.
Construction and agricultural equipment - Agricultural brake systems- Forklift Trucks - Articulating and telescopic booms - Aerial platforms Scissor lifts - Cranes - General hydraulics - Industrial gases

FEATURES:
1. Non-conductive due to its appropriate materials.
2. Good resistance to oil.
3. Good resistance to weather and hydraulic fluids.

Advantages:
1. The resin hose is made of special synthetic rubber, which has excellent oil resistance, heat resistance and aging resistance.
2. The resin hose has high pressure and excellent pulse performance.
3.The tube body is tightly combined, soft in use, and small
in deformation under pressure.
4. Resin hose has excellent bending resistance and fatigue resistance.
Product Parameters Hydraulic Hose Size Chart:

SAE 100R7 thermoplastic hose
SIZE	SIZE	I.D		O.D	W.P		P.P		B.P		min B.R		W.T
mm	Inch	Min	Max	Max	Mpa	Psi	Mpa	Psi	Mpa	Psi	inch	mm	Kg/m
5	3/16	4.6	5.4	11.4	21	3045	42	6090	84	12180	3.54	90	0.073
6.3	1/4	6.2	7.0	13.7	19.2	2780	38.5	5580	77	11165	3.94	100	0.090
8	5/16	7.7	8.5	15.6	17.5	2535	35	5075	70	10150	4.53	115	0.128
10	3/8	9.3	10.3	18.4	15.7	2275	31.5	4565	63	9135	4.92	125	0.155
12.5	1/2	12.3	13.5	22.5	14	2030	28	4060	56	8120	7.09	180	0.224
16	5/8	15.5	16.7	25.8	10.5	1520	21	3045	42	6090	8.07	205	0.277
19	3/4	18.6	19.8	28.6	8.7	1260	17.5	2535	35	5075	9.45	240	0.330
25	1	25.0	26.4	36.7	7	1015	14	2030	28	4060	11.81	300	0.403

SAE 100R8 thermoplastic hose
SIZE	SIZE	I.D		O.D	W.P		P.P		B.P		min B.R		W.T
mm	Inch	Min	Max	Max	Mpa	Psi	Mpa	Psi	Mpa	Psi	inch	mm	Kg/m
5	3/16	4.6	5.4	14.6	35	5075	70	10150	140	20300	3.54	90	0.086
6.3	1/4	6.2	7.0	16.8	35	5070	70	10150	140	20300	3.94	100	0.097
10	3/8	9.3	10.3	20.3	28	4060	56	8120	112	16240	4.92	125	0.178
12.5	1/2	12.3	13.5	24.6	24.5	3550	49	7100	98	14510	7.09	180	0.246
16	5/8	15.5	16.7	29.8	19.2	2780	38.4	5560	76.8	11120	8.07	205	0.312
19	3/4	18.6	19.8	33	15.7	2275	31.4	4550	62.8	9100	9.45	240	0.36
25	1	25.0	26.4	38.6	14	2030	28	4060	56	8120	11.81	300	0.505

→ Click to View More Hydraulic Hoses and Other Fittings.
Applications Hydraulic hoses are used in a variety of applications across industries such as construction, agriculture, mining, oil and gas, and transportation. Their features and capabilities make them indispensable in many industries.
Cooperation RUNXI's products are exported to more than 30 countries, such as Iran, Russia, USA, The UK, DAE, Korea, Vietnam, Iraq, Singapore, Indonesia, Azerbaijan and Japan,and some African countries, etc. We have obtained high praise from clients domestic and abroad due to the excellent quality and competitive price.
At RUNXI & JIAYAO Company, emphasis is placed on human resource development as we believe in the Group's philosophy "Organization Development through Self Development". We have competent professionally qualified and experienced staff in each of our functions. The Company assists & encourages its employees for their professional qualifications and also invests in developing staff through in-house, out-sourced and international training.
Company Profile JIAYAO CO., LTD.(For manufacturing) & HENGSHUI RUNXI INTERNATIONAL TRADE CO., LTD. (For export) are located in Yuying Street, Guangchuan Town, Jing County, Hengshui City, Hebei Province, China. we are a technology-based enterprise which is specialized in the area of R&D, marketing of multiply rubber products, rubber hose production line and telecommunication towers.
Our company specializes in Telecom towers, High pressure hoses, Hydraulic hoses, SAE & DIN series hoses, Drilling Rotary hose, Choke & Kill Line, Bop hoses, Suction and Discharge hose, Fabric hoses, Metal Flexible hose, Fireproof hose, Silicone hose, Hose Assembly, and Hose Production Line, etc.
Packaging & Shipping Delivery time depends on our order quantity, we usually 3-5 days one container.
After finishing the hose crimping machine, hose cutting machine and hose skiving machine, we will pack the hose. In general, the packing will use woven bag and plastic film. Special packing is available according to customers' requirements.
Certifications
FAQ Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white wearable woven bags. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 20 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
