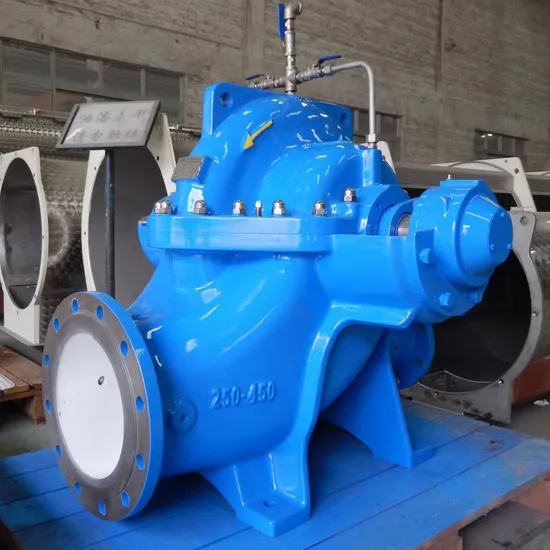

Single-Impeller Mine Water Axially Split Case Double Suction Centrifugal Pump

Product Description

The SCP pump is a high-performance, single-stage, axially split casing (middle open) pump with a double suction impeller, suitable for both horizontal and vertical installations. It excels in applications such as water supply, drainage, irrigation, power stations, construction, hydropower, fire-fighting, air-conditioning, and the building industry. It handles clean water, abrasive mediums like sand and oxide scale water, corrosive mediums like seawater, and high-temperature fluids up to 150°C.
With a capacity range of 52 to 35,000 m³/h and heads from 10 to 300 meters, the SCP pump operates under pressures up to 3.5 MPa. The axially split casing design allows for easy maintenance without disassembling the piping or motor. The dynamically balanced double-entry impeller ensures minimal axial thrust and efficient performance. The pump's durable construction includes an asbestos-free seal and long-life bearings, making it an ideal choice for demanding environments needing reliable and efficient fluid handling.
Application
.Clean water or medium similar to water in phisical and chemical properties:
.Water supply,drainage,irrigation, power station,construction.
.Hydropower station,fire-fighting,air-conditioning, building industry.
.Abrasive medium:Sand water,oxide scale water,others.
.Corrosive medium:Desalination,bittern,sea water,others.
.High temperature medium:Heating network circulating water, all kinds of chemical liquid.
Structure Design
SCP is single stage, axially split volute casing pump with double suction impeller, for horizontal and vertical installation.
Drive shaft end of the horizontal pump optionally on the left or right side. Flanges drilled to ISO, DIN , BS OR ANSI.
Specifications
.Capacity (Q):52- 35000m³/h
.Head (H): 10-300m
.Scuction diameter:150-1600mm
.DsichargeI diameter: 100-1400mm
.Operating pressure (P): ≤3.5MPa
.Operating temperature (t):-15ºC- +150ºC (above 80ºC,contact Tianjin Elecmotor)
.Abrasive medium:≤4%
Vibrations
.The normal operating range of pump is 0.4~1.2 times of rated capacity.
.The vibration values of pump are according to ISO2372-1974
Materials

Casing	.In-line axially split design which permits removal of the complete rotor without moving the pipe and motor. .Short distance between bearings. .Leak-tight due to compact joint flange with long, prestressed bolts. .Counter-rotation possible with similar parts. .Double volute casing reduces radial forces on the impeller and consequently the bearing loads. .Easy mounting self-aligning upper casing. .Flange drilled to ISO, DIN, BS or ANSI. .Smooth surface inside and epoxy coating as required. .Replaceable wear rings protect the casing at the impeller running clearances. .Heavy duty casing design for high working pressure
Impeller	.Computer- optimized double entry impellers. .Minimal axial thrust due to double-entry impeller. .Impeller is statically and dynamically balanced according to ISO1940. .Optional impeller wear rings.
Seal	.Asbestos-free, potable water quality softpacked stuffing boxes. .Unbalanced mechanical seal, according to DIN 24960. .Balance mechanical seal for operating pressure>16 bar on required. .Cartridge-type mechanical seal on required
Bearing	.Adopt antifriction bearings with world famous brand, sealed with life grease lubrication for long service life. .Open gland, enough space for service activities. .Optional: oil lubrication with constant level oiler. .Horizontal: grease lubricated ball bearings on both side, oil lubrication is optional.For the big size, sliding bearing is available. .Vertical: grease lubricated ball bearing
Shaft	.Heavy duty shaft completely sealed and dry for zero corrosion. .Short and rigid with negligible vibrations. .No threads exposed to pumped medium, long operating life and no corrosion. .Adjustment-free assembly. .Quick and easy assembly/dismantling of the rotor components due to elastically prestressed mountings. .Maximum interchangeability shafts design entire series for 2900 rpm and 1450 rpm model just six shafts and six bearings assemblies.
