High Quality Blow Bottle Cap Plastic Molding Machine Injection Mold with CE Sz-3000A
| US$27,000.00-40,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
SZ-3000A
Type
Injection Blow Molding
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
CE
Shaping Mode
Injection Mould
Surface Finish Process
Polishing
Mould Cavity
Multi Cavity
Process Combination Type
Compound Die
Application
Household Appliances, Commodity, Home Use
Runner
Hot Runner
Design Software
Ug
Installation
Fixed
Standard
Hasco
Customized
Customized
Plastic Material
PP/PE
Transport Package
Wooden Case
Specification
SZM
Trademark
ShenZhou
Origin
Jiangsu, China
HS Code
8480790090
Production Capacity
50 Set/Sets Per Month
Product Description

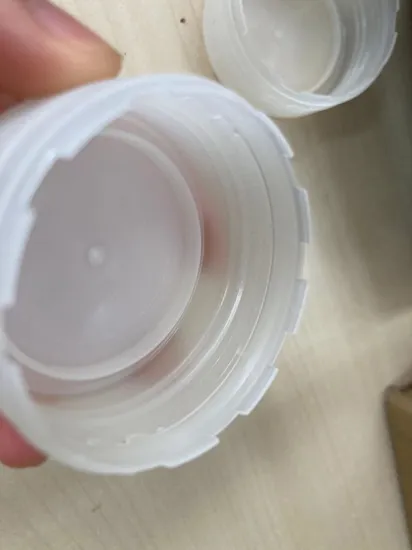

We can produce various types of water bottle caps, barrel caps, combination caps, butterfly caps, 5-gallon bottle caps, and Wet wipes cover.Product Description
Product Parameters
1. Customized mold Information:
| ITEM | UNIT | SZ-3000A | ||
| INJECTION UNIT | ||||
| SCREW DIAMETER | mm | 60 | 65 | 70 |
| SCREW LID RATIO | L/D | 22.7 | 21 | 19.5 |
| THEORETICAL SHOT VOLUME | CM3 | 848 | 995 | 1154 |
| SHOT WEIGHT(PS) | g | 772 | 905 | 1050 |
| INJECTION PRESSURE | Mpa | 207 | 176 | 152 |
| THEORETICAL INJECTION RATE(PS) | g/s | 241 | 283 | 328 |
| PLASTICISING CAPACITY | g/s | 35.2 | 43.3 | 51.8 |
| SCREW TORQUE | N.m | 2530 | ||
| MAX.SCREW ROTATE SPEED | r/min | 150 | ||
| INJECTION STROKE | mm | 300 | ||
| CLAMPING UNIT | ||||
| MAX.CLAMPING FORCE K | KN | 3000 | ||
| MAX.OPENING STROKE | mm | 590 | ||
| SPACE BETWEEN TIE BARS | mm | 610×610 | ||
| MOULD HEIGHT | mm | 220-630 | ||
| MAX.DAYLIGHT | mm | 1220 | ||
| EJECTOR FORCE | KN | 70.6 | ||
| EJECTOR STROKE | mm | 150 | ||
| EJECTOR QUANTITY | 9 | |||
| OTHER | ||||
| PUMP MOTOR POWER | KW | 30 | ||
| PUMP PRESSURE | Mpa | 16 | ||
| HEATING POWER | KW | 22 | ||
| HEATING ZONE | 5 | |||
| SIZE | m | 6.7×1.75×2.25 | ||
| NET WEIGHT | t | 11 | ||
| OIL TANK CAPACITY | L | 560 | ||
| INTERNATIONAL DESIGNATION | 3000-1750 | |||
| Mold information | Content |
| To be discussed | The price is for reference only,the specific price can be negotiated;if there are any other requirements,please state in advance |
| Product material | ABS,PP,PC,PA,PMMA,PS,POM and etc. |
| Moldbase | FUTABA,LKM,HASCO,DME,you can choose |
| Cavity material | 45#,50#,P20,H13,718 2738,NAK80,S136,SKD61 etc |
| Runner | cold/hot runner |
| Cavity | multi or single cavity |
| Customized | Per customer request |
| Lead time | about 25 days,depond on reality project |
| Package | standard exported wooden box packed |
| Design software | UG,PROE,CAD,Solidworks |
2. Detail information of bottle cap mold mould steel:
| Mould material | Mould hardness | Mould life |
| P20 | HRC 29-33 | 300000 shot |
| H13 | HRC>43 | 1000000 shot |
| 718 | HRC 30-36 | 500000 shot |
| S136 | HRC 48-52 | 50000 shot |
| 2344 | HRC>48 | 800000 shot |
3. PET Preform mold:
| Name | Mult-cavity preform mould |
| Cavity | 16 24 30 36 .... |
| Material | PET |
| Mould steel | S136 |
| Runner system | hot runner |
| Gate type | valve gate |
| Eject way | stripper |
| Mould running | full automatically |
| Customized | Per customer request |
Why Choose Us
Detailed Photos
Certifications
Company Profile
FAQ
1. Why choose us?
We not only supply the mold, but also the machine and related parts. Port city, convenient transportation.
2. How to ensure the quality of mould?
Debug on the machine before delivery to ensure no quality problems before delivery.
3. What about our after-sales service?
There is a perfect after-sales service system, super long warranty period, any product problems can contact us at any time.
4. About the price?
Higher discount for bulk purchase, price can be negotiated.
5. How long will delivery take after placing an order?
High production efficiency,short delivery time, specific circumstances can be negotiated.
