Wall Panel Clay Roof Tile Extruding Machine Fired Clay Red Brick Machine

Product Description

Product Description
DOUBLE STAGE VACUUM CLAY BRICK EXTRUDER

This serious of machines adopt the latest manufacturing technology from Europe, its specialized for extruding high-end ceramic materials, cement products, and other types of semi-hard materials. The equipment's material, technical structure, electrical system as well as operating system are manufactured in accordance with European standards, which have features of high degree of automation, easy operation, long life and saving maintenance costs.
Scope of application:

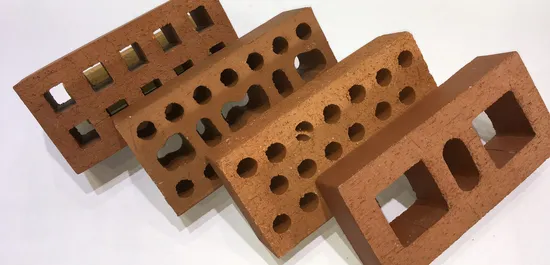

High-performance vacuum extruder is widely used in building materials manufacturing industries of all types of high-end ceramics, clay tiles and hollow blocks, cement and other building materials extrusion, the equipment has advanced features, mature technology, stable performance and high efficiency.
FEATURES AT A GLANCE

European standards
This serious of machines adopt the latest manufacturing technology from Europe.
Planet Reducer
This serious of machines adopt planet reducer so the production performance and easy maintenance is guaranteed.

Flexibility
Vary extrusion screw diameter and adjustable extrusion die enable the machine to work with different sizes of bricks/tiles.

Descriptions		Remark
Model No.	KJL56/50-S
Output	50-60 ton/h
Voltage	380v
Frequency	50hz
Vacuum degree	90%
Extrusion pression	3.0 mpa
Bottom screw dismeter	560/500 mm
Main bearing brand	NSK
Total power	160+90+11 kw
Total weight	20000kg	with motor and refucer
Dimensions	7000*5500*2600mm	installation

Successful project
Company Profile
Nanjing Brickmac Engineering Co., Ltd.
is professional turn-key brick project provider and brick making machinery supplier in Nanjing, Jiangsu Province, China. We provide:
a) Turn-key design and technical consultation of bricks/tiles production line;
b) Manufacturing and set up of brick/tile machinery, dryer and kiln.
We export machinery to over 15 countries including Vietnam, India, Nepal, Uzbekistan, Malaysia, South Africa, etc. Our product range including Box feeder, Crusher, Mixer, Vacuum Extruder, Brick Cutter, Bricks Loading & Unloading system,
Robotic Setting Machine, Tunnel Dryer, Chamber Dryer, Tunnel Kiln, Assembly tunnel kiln, Kiln Gas Burner, Bricks Packing
System, etc.
