CNC Roller Notching and Logo Milling Machine

Product Description

Xk8450fb cnc roller notching milling machine
Product Description

1. Introduce of products
XK9350 series CNC notching & logo making machine is suitable for processing less than 500 mm in diameter, the length of the roll is less than 2500 mm, can be automatically processed from 6 ~ 50 rebar roll of various specifications crescent, the same height rib (completely meet customers' standard). Machine tool according to customer requirements of automatic cutting different handedness, helix Angle of rib, in roll weeks to any parts or not equal dividing or Spaces; Can automatically on roll at any position of making any kinds of logo you need. Can also according to your requirements for any non-standard roll groove type, text and tag processing. Satisfy a variety of functions and more efficient working you need on this machine .
We have lots of experiences on processing rebar. We have been making an in-depth study and analysis about the domestic and foreign similar products of advanced technology consistently. On this basis, what we have been always doing constantly is for XK9350 series CNC machine products technological updates and structure in recent years. The process craft , the technical content and performance of the machine substantial improvement is our perpetual purpose. We have formed a complete series of product structure. And we has the independent intellectual property rights.
On our existing mature kinds of machines, according to the structure function mainly, machines are split into cutter rapid rotation milling machine and swinging head milling. As their difference these two kinds of machine have their own divided merit and demerit .As our technology innovation and development, we designed new XK9350FA notching & logo making milling machine. The machine dropped the idea of many manufacturers use swing cutting type milling head and rotation with the overall change of cutting type milling head to crescent groove and the structure of the text, design, processing and switching scheme. We adopted novel rapid rotation knife cutting mechanism and quick change structure for milling logo. Rapid rotation knife of transmission, positioning clamping and supporting structure adopts a series of new type of functional structure to keep fast, stable and reliable. This machine has obtained national patent.
2.Details of products

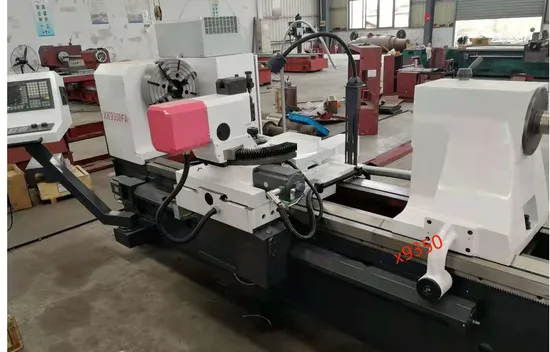

XK9350FA CNC notching & logo making machine Appearance
Machine processing range: Ф500×2500mm
Suitable groove size : φ5~φ50mm
Working mode : rapid rotation cutter for milling rib & swing head For making logo.
Materials of roller : to be satisfied for processing chilled cast iron ,combined roller, high-speed steel and tungsten carbide.
a. This series machine has a single V guide rail structure, super audio quenching, HRC48 above, good rigidity, can bear larger cutting force, good abrasion resistance, good guideway orientation precision, good accuracy stable.
b. Rapid rotation axis of transmission, positioning, clamping and supporting structure adopts a series of new type of functional structure, traditional dropped the idea of high-speed rotating fly knife driving part adopts the structure of worm and worm wheel (worm gear and worm can easily wear failure in the high-speed transmission, and the efficiency of the bottom). Ensure efficient fast, throwing knives structure processing cross rib trough, fly knife system support rigidity. Stable and reliable. This structure has obtained national patent, this machine has won two national patents.
c. Rapid rotation-holder support structure learning characteristics of the same kind of machine from Italy, support block adopt arc surface support, the support effect is good, at the same time at the top of the tool rod with top support activities, to improve the support stiffness and precision of the tool holder.
Rapid rotation unit has high rigidity, high precision, reasonable structure.
d. Rapid rotation unit of servo drive transmission mechanism adopts pure gear (6 levels of precision, grinding), smooth, high rigidity, high precision of transmission.
e. Milling head spindle adopts frequency conversion stepless speed regulation of motorized spindle, power 2.2 KW, top speed of 8000 RPM. Can processing on high hardened materials.
Rapid rotation unit support structure was unloaded into milling head carving, convenient and quick.
XK9350FA typical machining parts
f. Milling head adopts the latest circular arc rolling guide bearing, can solve the problem of milling head support rigidity, at the same time greatly improve the sensitivity and positioning precision of the direction of rotation.
g. Machine adopts ball screw transmission (avoid gear rack transmission inaccurate faults), the numerical control system, automatic control, to achieve a pass to the next pass automatically move, precise position, without manual movement.
h. Standard configuration using a full set of German SINUMARIK Siemens 808 d nc system, a full set of original servo motor, drive, make sure the system, servo performance improvements to the best state.
i. CNC system embedded in the development of the cooperation with Siemens company automatic programming software, simply type roll diameter, specifications, parameters, such as automatic editor generated crescent groove machining program and lettering. Reduce the tedious programming work, improve processing efficiency.
Detailed Photos
Product Parameters

Model Item		Unit	XK9350FA	Remarks
1	Processing project		Processing a rib groove roller (crescent rib, high rib groove etc.) Marks the engraving
2	Workpiece material / type		Common material, high speed steel roll, composite roller, tungsten carbide roll ring
3	Applicable screw-thread	mm	Φ5~φ50
4	Max. diameter of workpiece	mm	φ500
5	Min. Diameter of workpiece	mm	φ100
6	Max. length of workpiece	mm	2500
7	Cutting type		Milling-head swinging cutting and "fly-cutter" cutting
8	Headstock spindle bore-hole		MT5#
9	Headstock chuck	mm	4-jaw chuck φ400
10	The fly-cutter spindle speed / power	rpm /kw	0~600(fly-cutter) /2.5
11	The milling head spindle speed / power	rpm /kw	200~8000(Milling-head) /2.2
12	Diameter of tailstock sleeve	mm	180
13	Tailstock spindle bore-hole		MT5#
14	The minimal unit of axis feed	mm /°	0.001
15	System control axis		4 axis(X,Y,Z,A)
16	Electric box air conditioner	W	500
17	Cooling pump motor	W	90
18	Total Gross weight	kg	5500
19	Overall dimensions (L×W×H)	mm	4000×1580×1900
20	CNC system		SINUMERIK 808D ,Servo drive
