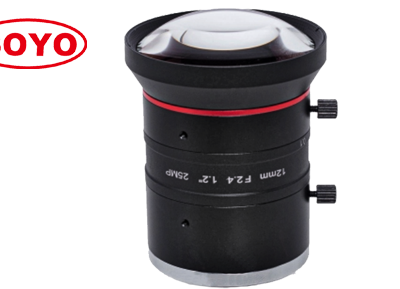

12mm 1.2" 25Megapixel Lenses Manual iris Machine Vision FA 0.39% TV Low Distortion Industrial Recognition 8K Camera Optical Lentz Automatic CCTV Lens C Mount Factory Automation SMT AOI ITS Positioning Measurement Scan
High resolution : 25 megapixel cover all 8K & 4K
Large format : 1.2" size covering 1.1", 3/4, 2/3", 1/1.8", 1/2" camera
Low distortion: 0.39% TV / -0.28% Optical low distortion for machine vision
Application : Automation, machine vision, medical, life science, ITS, SMT, AOI

Model		S12MV1224-25M
Resolution		25 Megapixel
Format		1.2" (2.74μm)
Focal Length		12mm
Max image circle		Φ19.3mm
Aperture (Close)		F2.4 Manual iris
Angle of View (°)	1.2"	76.2*62.4*55.33
M.O.D		0.1m
Relative Illumination		81.4% ( WD=300mm F2.8 )
Distortion		0.39% ( TV ) ; -0.28% (Optical )
B.F.L		18.5mm , WD=600mm
CRA		6.02°
Size		Φ50*66.96mm
Projector		Center ≥200lp/mm; Edge Φ16 ≥160lp/mm
Mount		C
Weight		300g
Marks		AT430~680nm T≥85%; 15G Element
