Round Yarn Dryer Wire for Paper Making Machine

Product Description

Product Description Flat yarn dryer screen's application in paper machine:
Polyester dryer fabric is made with the latest non-woven technology and equipment in the world. Polyester material is one of the most advanced drying and filtration materials in the world. Polyester screw dry net adopts high-quality anti-hydrolysis polyester mono-filament, which is formed by forming, weaving, finishing, and shaping. It has unique properties:
1) Acid resistance, alkali resistance, wear resistance, high-temperature resistance, and long service life, which is several times the woven dry blanket, canvas, and ordinary dry net.2) Flat mesh surface, high tensile strength, good permeability, and high heat transfer efficiency.3) Easy to install and use, with no imprinting on the interface, and no deformation during use.

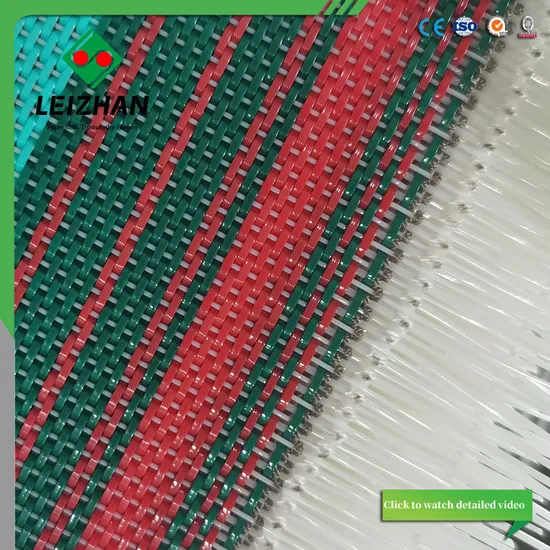

Detailed Photos
Product Parameters

Polyester Dryer Fabric
Weaving Kind	Fabric Model	Wire Diameter mm		Density(root/cm)		Tensile strength(N/cm)			Air Permeability		Weight Kg/m2	Thickness mm
		Warp	Weft	Warp	Weft	Surface	Joint	Socket Screw-ring interface	M3/m2h	CFM
Flat wire dryer fabric	4106-2	0.35x0.68	0.50	19.6	15.7	2200	1500	900	5500	345	1.10	1.62
	15505	0.25x0.40	0.50	17	13.5	2000	1500	900	6500	406	0.75	0.83
	20654	0.33x0.52	0.65	22	7.5	2000	1400	800	10000	625	1.02	1.35
	18688	0.30x0.58	0.35	20	18.5	2000	1400	800	1600	100	1.2	1.40
			0.68
	16904	0.29x1.06	0.90	15.2	8.6	2600	1800	1500	1920	120	1.33	1.54
			0.98
