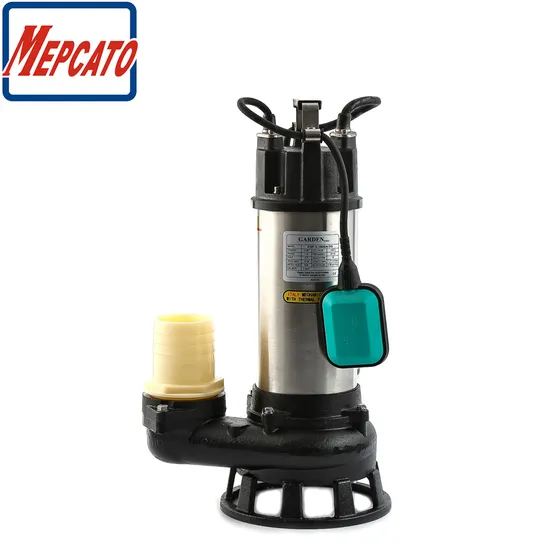

1HP High Flow Powerful Electric Cast Iron Centrifugal Submerged Sewage Muddy Wastewater Drainage Pump with Floater Switch for Industrial Construction Sites

Product Description

CS Series Cast Iron Sewage Submersible Pump
Features


2" and 3" Outlet Floater
Motor Features
- Single phase
- Insulation class: B
- Protection class: IP68
- Motor Thermal Protector
Applications

Performance

Model	Power		Caliber	Phase	Polarity	Voltage	Ampere	Capacitor	Capacity	Head	Length	Width	Height	Weight	Max. Solids
	HP	KW	Inch	φ	P	V	A	μ f	L/min	m	cm	cm	cm	kg	mm
CS - 2.75S	1	0.75	2"	1	2	220	5.5	25	460	12	28.5	22	47	21.3	15
CS- 2.75S (3G)	1	0.75	3"	1	2	220	5.5	25	650	12	28.5	22	47	22.4	15
CS - 2.110S	1.5	1.1	2"	1	2	220	6.7	40	620	15	28.5	22	47	24	15
CS- 2.110S (3G)	1.5	1.1	3"	1	2	220	6.3	40	900	13	28.5	22	47	25	15
CS - 2.150S	2	1.5	2"	1	2	220	9.45	40	700	17	28.5	22	47	25	15
CS- 2.150S (3G)	2	1.5	3"	1	2	220	9.2	40	1170	15	28.5	22	47	26.1	15

Packaging & Shipping
Certifications
Company Profile
Our Advantages
1. Highly efficient motor design for 24 hours continuous duty use.
2. Adopt Italian imported mechanical seal for double waterproof protection.
3. Design with Oil Chamber, provides for the most durable seal design, lubrication and cooling.
4. Motor with Thermal Protector to prevent motor failure due to pump problem or accidental run-dry conditions.
5. Internal wires connect by terminal design, solid and reliable.
6. Power cable rubber seal designed by filling epoxy to raise humidity-resistance.
7. Each pump with laser printed serial number to record the production date.
8. All pumps are 100% tested in pump head line and completed pump production line.
9. The special test all the pumps will perform is the low voltage start-up test.
FAQ
