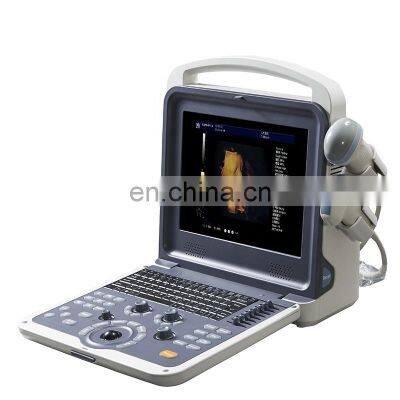

HC-A011 newest portable 4D color doppler ultrasound system

Product Description

Product Description
HC-A011 newest portable 4D color doppler ultrasound systemProduct DescriptionFeatures for HC-A011 newest portable 4D color doppler ultrasound system: Technical specifications:Displaying modeB,B/B,4B,B/M,M,PW,B/C,B/C/D,B/D, duplex, triplex, CFM,4DSignal processing:Full-digital beam forming, dynamic filter, dynamic real time receiving focusing, RDA, spectral processing, CFM processing, real-time dynamic focusing, dynamic aperture in all fieldsImage processing:THIPSHI TM broadband multi-frequency harmonic imageSpeckle-reductionPower adjustableSmoothing functioniBeam TM intelligent space image technologyiZoom TM undistorted full screen imageFree Xros MEngineer control technology with low power consumptionEdge enhancement Image optimizing disposalOne-key optimizationImage conversionDoppler Sound output volume adjustableWall filter adjustableBase line adjustableSampling frame adjustableSpectrum sampling volume adjustableSpectrum sampling volume angle adjustablePRF adjustableGeneral measurementB mode-distance, circumference, area, volume, angle, area Red, Diam RedM mode- distance, time, velocity, heart rate Abdomen measurementLiver, GB, Aorta, GBWT, CBD, Portal Vein, SpleenOB packagesEDD table :GS ,BPD, CRL,FL,YS,TAD,LV,OFD,NT,AC,HC, APAD, Cxlength.Gynecological packagesUterine measurement (Uterine diameter, uterine endometrial); left/right ovary measurement; left/right sacculus measurement; Cervix; Uterine depthUrology packagesLeft/right kidney measurement, Volume, CortexSmall parts MeasurementLeft/ right thyroid, volume, Isthnus and calculating reportCardiac Measurement PackageHeart rate, Valve speed, LV, aortic, mitral, ventricularSkeletal & MusclesSkeletal & Muscles, distance, area, Hip angleVascularSenosis D, senosis A, Lt/Rt VVA, Lt/Rt Rulb, Lt/Rt ICAScanning depth300mmBody markAbdominal ,Cardiology, Gynecology, Obstetrics, Small partsCine loopAutomatically & manually, speed controlImage storage formatBMP, JPEG, PNGInput/output portsVGA, USB port, DICOM portStandard ConfigurationMain unit, 12 inch LED monitor, 3.5Mhz convex probe, 7.5Mhz linear probe,2 probe connectors, hard disk,battery,DICOM 3.0Options6.5Mhz transvaginal probe, 3.5Mhz micro-convex probe, 3.5Mhz phased array probe, 4D volume probe, trolley, USB laser printer and Video printer 1. 12 inch high resolution medical LED monitor ,the weight is 6.5KG,easy to take 2. Portable clamshell design, compact, smart and easy to take 3.Satellites orbiting type control panel and backlit keyboard design 4. Built-in floating standard keyboard 5. Unique design for power key and reset key 6. Friendly user’s operation interface 7.High resolution 2D image and sensitive Color Doppler blood flow imaging system 8. Intelligent one touch optimization9.Can be matched with several kinds of probes (such as convex probe, linear probe, transvaginal probe, phased array probe…)10. Abundant peripheral (Such as USB, DICOM 3.0, VGA…)11. Built-in SSD (Solid State Disc) improves the stability and reading speed12. Built-in large capacity rechargeable Li-ion battery, standby time is up to 2 hours (option)13.Can be updated to 4D (option)14. Optional accessory filter15. Independent research, can change the software according to customer demanding, can cooperate by OEM.16. Supply good after-sales service, our own service engineer to solve the problem as soon as possible 17. Supply factory visiting 18.PC system(Windows XP), can update the system in customized, can match with any types of printer 19. Can use the key to overturn the 4D image in X Y Z diSmart design:The familiar PC system makes the system intuitive and easy to use. Flexible design allows system to be used conveniently.rector Pictures for HC-A011 newest portable 4D color doppler ultrasound system: Packaging & Shipping Company Information Clients and Projects contact Our Services FAQ1. How to place order of HC-A011 newest portable 4D color doppler ultrasound system?A: Firstly we confirm product details and then send the Proforma Invoice, You make payment to us through Alibaba Trade Assurance or T/T, Western Union or MoneyGram, after we confirm your payment then ship the product to you once finished production. 2. For HC-A011 newest portable 4D color doppler ultrasound system product,What’s the minimum order quantity (MOQ)?A: For disposable material,We have our own MOQ,For our HC-A011 newest portable 4D color doppler ultrasound system our MOQ:1pc,3. What is your warranty?A: For most products the warranty is for 12 months, some products we provide 18 months warranty. For HC-A011 newest portable 4D color doppler ultrasound system , we provide 12 months warranty.4. What’s your delivery time?A: Generally it is 5 working days if goods in stock. within 10 working days if the goods need production, And also the delivery time depands on quantity. For HC-A011 newest portable 4D color doppler ultrasound system , the delivery time is 10 working days.5. How to ship the product?A: The shipping way normally depand on your quantity,total CBM and weight. We have our own shipping company to provide best shipping cost and efficient way.
