63t 2500mm Nc Press Brake Torsion Bar Plate Bending Machine Folder

Product Description

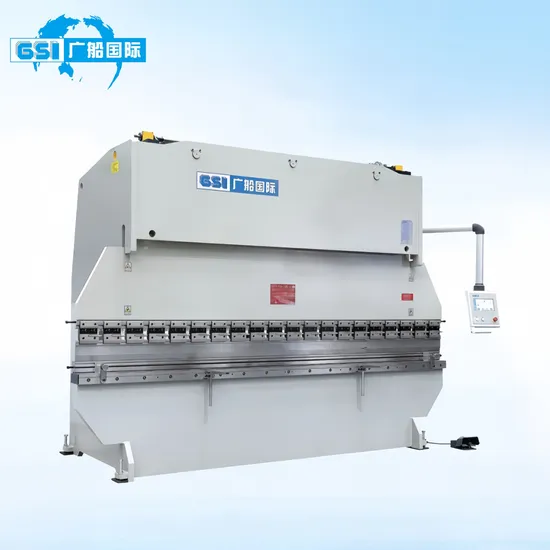

Product DescriptionTorsion Bar Synchronous NC Press Brake ACK63/2500
Product Features:
- Two stage speed control, first rapidly descending (fast forward) and then slowly pressurizing (work forward);
- The back gauge is driven by a motor, with manual adjustment and digital display;
-Three cylinder synchronous downward pressure can compensate for the slight deformation of the workbench and pressure beam after being subjected to force.
-The working mode includes jog, single operation, and continuous operation. The reversing and pressure holding time can be controlled through a time relay. The lower workbench panel has a full-length T-shaped groove for easy installation of molds of different specifications.
- According to the thickness and bending length of the plate, the corresponding bending pressure can be adjusted
Product Details
On the basis of A series, the opening height and throat depth are increased. The frame parameters are the same as those of AB series.
Quick clip is installed to facilitate the replacement of the press tool. The press tool can be directly installed without quick clip. The opening can be enlarged as well as the processing range of AB series.
Overall Welded Structure
The frame adopts a overall welded steel plate, and has undergone surface polishing, rust removal treatment, and vibration aging treatment to eliminate internal forces, which has good rigidity and stability. -Taking frame rigidity strengenling treatment and finite element mechanical analysis, ensure the overall stability of the rack. Integrated Hydraulic System
- Integrated hydraulic system, slide up type, wide speed adjustment range, stable and reliable operation.
Mechanical Torsion Axis Forced Synchronous Operation
- The upper and lower motion balance of the knife beam adopts mechanical torsion axis forced synchronous operation;
-Using mechanical positioning blocks ensures the accuracy of repeated positioning of the upper mold.GSI-P10T CNC System
- Developed by GSI and professional CNC system company;
- Adopts high-performance industrial computer and high-definition touch screen;
- Humanized intelligent operating system,intelligent prompt,learning and using now ;
- Greatly reduces the learning difficulty;
-Standard 2 axes(x+y axes), Optional 3 axes (x+y+r axes).High Strength Frame
- The frame is thickened and Strenthened;
- Ensure the overall stability of the frame;
- Reduce deformation during bending.Fast Clamp
- The standard equipped fast clamp will help you replace the top punch in very short time.
- Convenient and time-saving. Fast intermediate loading and unloading function to improve work efficiency.
Main Technical Parameters of ACK Series Torsion Axis Synchronous NC Bending Machine

No.	Model	Nominal Pressure (kN)	Table Length (mm)	Distance Between Columns (mm)	Throat Depth (mm)	Slide Stroke (mm)	Open Height (mm)	Main Motor Power(kw)	Back Gauge Operating Range (mm)	Speed			Overall Dimension			Weight (kg)
										Approaching Speed (mm/s)	Working Speed (mm/s)	Return Speed (mm/s)	L(mm)	W(mm)	H(mm)
1	ACK63/2500	630	2500	2050	320	150	450	5.5	500	60	12	90	2650	1350	2500	4800
2	ACK100/3200	1000	3200	2500	450	150	480	7.5	500	70	10	80	3350	1600	2680	7800
3	ACK100/4000	1000	4000	3100	450	150	480	7.5	500	70	10	80	4150	1600	2830	10000
4	ACK125/3200	1250	3200	2500	450	150	480	11	500	70	10	80	3350	1600	2780	8500
5	ACK125/4000	1250	4000	3100	450	150	480	11	500	70	10	80	4150	1600	2930	10600
6	ACK160/3200	1600	3200	2500	450	150	480	11	500	60	8	60	3350	1650	2880	10500
7	ACK160/4000	1600	4000	3100	450	150	480	11	500	60	8	60	4150	1650	2980	12500
