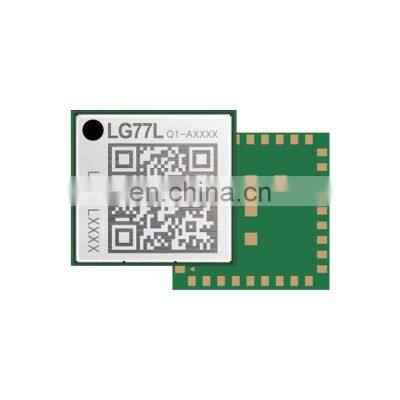

Ultra Low Power Consumption Multiple GNSS Module LG77L LG77LA LG77LB LG77LC

Product Description

Product Description
DescriptionOverview● The LG77L is a series of GNSS modules which supports concurrent reception of GPS, GLONASS (or BeiDou), Galileo, and QZSS. It can acquire and track any mix of GPS, GLONASS (or BeiDou), Galileo and SBAS signals. Compared with single GPS systems, enabling multiple GNSS systems increases the number of visible satellites, reducing the time-to-first-fix and improving the positioning accuracy, especially when driving through dense urban canyons.● By combining EASY™ (Embedded Assist System), an advanced AGNSS feature, with GLP (GNSS Low Power), a low-power mode, the LG77L achieves high performance, low power consumption and fully meets industrial standards. The EASY™ technology allows the module to calculate and predict orbits automatically by using the ephemeris data (of up to 3 days duration) which are stored in the internal RAM. As a result, the LG77L can acquires a fix position quickly, even at lower signal levels with low power consumption. With the GLP technology, on the other hand, the LG77L can adaptively adjust the on/off time based on the environmental and motion conditions to achieve a balance between the positioning accuracy and power consumption.● Its enhanced performance makes the LG77L ideal for industrial PDAs, consumer and industry applications. Extremely low-power consumption makes it a great solution for power-sensitive applications, such as portables.Key Features● Supports anti-jamming technology and a multi-tone active interference canceller● Multiple low-power modes ensure ultra-low power● consumption● Supports UART and I2C interfaces● Maximum update rate: up to 10Hz● Supports SDK commands developed by Quectel● Supports AGNSSWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Cable / ConnectorSIMCard HolderSensorIC
