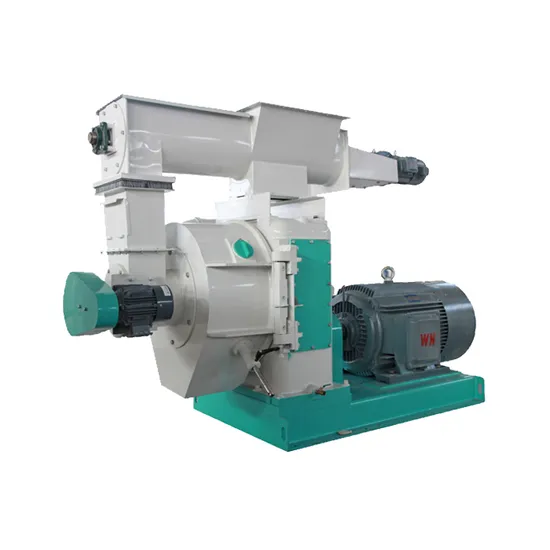

Machine Can Make DIN Plus Wood Pellets Specification

Product Description

Machine Can Make DIN Plus Wood Pellets Specification
1. Raw Materials:

(1). This pellet machine mainly used for making wood pellets , the pellets used for industry, boiler factories , the machine can be produce φ6.0,φ8.0,φ10.0,φ12.0 pellets.
(2)The machine adopt imported SKF or NSK bearings, the motor brand is Siemens or china famous Wannan brand
(3)Driven by gear .more strong than by belt, and the capacity 10% higher than by belt .
(4)the machine also matched the safty equipment , once overload , the safty pin will crack, to protecting the machine lifetime .
2. Machine Can Make DIN Plus Wood Pellets Specification Quotation Details :
(1)Payment: 40% payment should be prepaid by telegraph transfer, the balanced 60% should be paid within 5(five) days after got the copy of B/L
(2)Delivery Time: 25- 30 days after receive the advance payment
(3)Price based on FOB Shanghai port,China Per Set
(4)Packing: Standard export packing by Fumigation-free wooden cases
(5)MOQ:1set
(6)Validity of Quotation: 2 months
(7) Warranty Period: 18 months except the spare parts

3. Machine Can Make DIN Plus Wood Pellets Specification Main Data:

Model	Main Power(kw)	Capacity(kg/h)	Feeder Power(kw)	Force feeder power(kw)	Die Diameter(mm)
MZLH35	55	400-600	1.1	1.1	350
MZLH420	90	1000-1200	1.5	1.5	420
MZLH508	110	1500-2000	1.5	1.5	508
MZLH558	132	2000-2500	3	2.2	558
MZLH678	185	3000-3500	3	2.2	678
MZLH768	220	3500-4000	3	3	768

4.Wood Pellet Mill More photos:
5. MZLH420 wood pellet mill with automatic lubrication machine :
6. Inner Photos :
7. Machine In Factory Photos:
8. Wood Pellet Line In Customer Factory Site:
Any more information you need Machine Can Make DIN Plus Wood Pellets Specification, please feel free to contact with us.

Mr. Jason
Chongqing Qiaoxing Machinery & Equipment Company
Website: http://qiaoxingmachinery.en.made-in-china.com
Add: Room 6088, Building 4th, No. 319 of Haier Road in Jiangbei District, Chongqing Municipality, Chongqing, China
