Floor-Type Blin Wooden Case 560*480mm China Metal CNC Lathe Bl-H50t/Tc/Ty

Floor-Type Blin Wooden Case 560*480mm China Metal CNC Lathe Bl-H50t/Tc/Ty

US$34,000.00-51,000.00 1 SET (MOQ)

Basic Info.

Model NO.
BL-H50T/TC/TY
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE
Condition
New
Chuck Size
8′′/10′′/12′′
Max. Swing Dia. Over Bed
560mm
Max. Turning Length
470mm
Spindle Bore
66/86mm
Spindle End Type
A2-6/A2-8
Spindle Speed
4000/3500rpm
Spindle Motor Power
11/15kw
Tool Turret Type
12t
Transport Package
Wooden Case
Specification
560*480mm
Trademark
BLIN
Origin
China
HS Code
8461500090
Production Capacity
480 Units/Year

Packaging & Delivery

Package Size
250.00cm * 320.00cm * 250.00cm
Package Gross Weight
250.000kg

Product Description


- Adopt TAIWAN technology, designed by TAIWAN engineer, most parts adopt GERMANY/JAPAN/TAIWAN brand

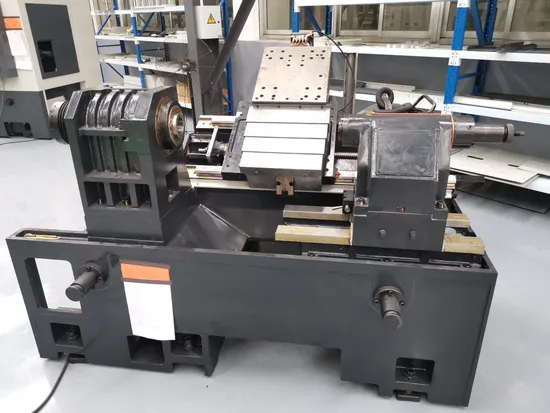

- Adopt 30°integral slant bed design
- X,Z axes adopt 45mm big width linear guideway,super high rigidity
- Adopt modularization design, easy for various especial configuration choice, such as tool setter etc
- Adopt MEEHANITE class cast iron, after aging treatment, small distortion, good torsional strength, good heat stability
- Base adopt multilayer strengthening rib, ensure bed's strength and stability
- Adopt high precision integral spindle unit, spindle motor adopt high performance servo motor, big output torque,high speed,wide adjustment range
- Spindle adopt double line ROLLER type bearing, high rigidity, suitable for heavy cutting
- Adopt high precision C3 class pre-stretched ball screw(double nuts), coupled with feeding motor directly by linkager, no gap,high transmission rigidity
- H50T mount 12T hydraulic-servo tool turret
- H50TC mount C axes and 12T Powered tool turret
- H50TY mount C axes and 12T Powered tool turret with 90°Y axes
Details:
Item Specification Unit BL-H50T BL-H50TC BL-H50TY
Capacity Chuck size / 8''(10''*,12''*)
Max. swing dia. over bed mm Φ560
Max. swing dia. over saddle mm Φ300
Max. turning length mm 485(8'' chuck);
475(10'' chuck*);
440(12'' chuck*)
355(8'' chuck); 450(8'' chuck)
Max. turning dia. mm Φ400 Φ290 Φ330
Standard turning dia. mm Φ200(8'' chuck);
Φ250(10'' chuck*);
Φ300(12'' chuck*)
Φ200(8'' chuck) Φ200(8'' chuck)
Spindle Spindle bore mm Φ66(Φ86*)
Spindle end type / A2-6(A2-8*)
Spindle speed rpm 4000(3500*)
Max. bar through dia. mm 51(74*)
Spindle motor power kw 11(15*)
X/Z axes X/Y/Z axes linear guideway type / BALL type
X/Y/Z axes linear guideway width mm 45/30/45
X/Y/Z axes ball screw O.D. mm Φ32/Φ32/Φ40
X/Y/Z axes ball screw pitch mm 10
X axes travel mm 230 250 220
Y axes travel mm / / 90
Z axes travel mm 610 500 500
X/Z axes rapid moving speed m/min 24/24
Y axes rapid moving speed m/min / / 8
Tool turret Tool turret type / 12T Hydraulic-servo tool turret 12T BMT55 Powered tool turret 12T BMT55 Powered tool turret with Y axes
Toolshank size mm 25×25, Φ40 25×25, Φ32(ER32) 25×25, Φ32(ER32)
Tailstock Tailstock quill taper / MT4#
Tailstock quill dia./travel mm Φ80/80
Accuracy Positioning accuracy(X/Z) mm 0.008/1000
Repeat positioning accuracy(X/Z) mm ≤0.005
Others Overall size mm 2600×1800×1900
N.W. kg 4000 4100 4200

*As option
Main parts list:
Item Brand
Spindle unit TAIWAN-ROYAL
Tool turret GERMANY-SAUTER/TAIWAN-YULIN/SWIFT
Ball screw JAPAN-THK
Ball screw bearing JAPAN-NSK
Linear guideway JAPAN-THK
Lubrication system TAIWAN-ISHAN
Rotary oil cylinder&chuck TAIWAN-AUTOGRIP
Hydraulic parts TAIWAN/JAPAN
Heat exchanger Joint-venture
Main electricity parts FRANCE-SCHNEIDER

Standard configuration:
-SIEMENS 808D ADVANCED CNC controller
-Hydraulic chuck
-Hydraulic tool turret
-Hydraulic tailstock
Optional configuration:
-SYNTEC/SIEMENS 828D/FANUC 0i TF CNC controller
-C axes& powered tool turret
-Y axes
-Automatic chip conveyor
-Tool setting probe
