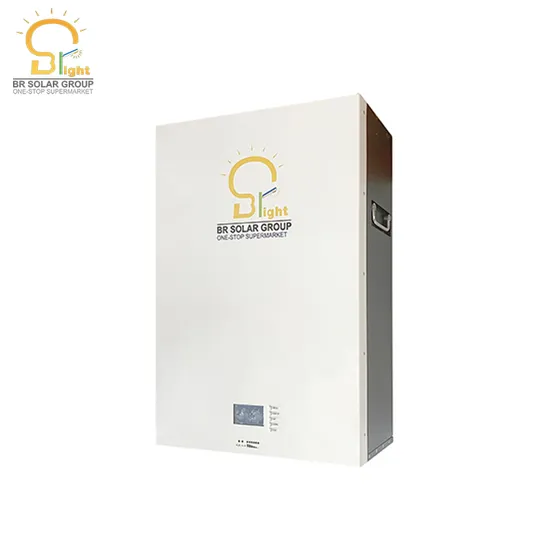

Good Service Storage 48V 100ah Li Ion LiFePO4 200ah Lithium Battery
| US$750.00-1,599.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
BR-BLH Lithium Battery
Rechargeable
Yes
Size
680*485*180mm
Model No.
RS-LFP48V100ah
Battery Size
680*485*180mm
Nominal Capacity
5/7.5/10kwh
Cycle Life
More Than 6000 Times
Material
LiFePO4 Battery
Display
LCD Indicator
Optional Part
Storage Battery
Battery Cell
3.2V 50ah Prismatic Cell
Inverter Matched
Solax, Deye, Goodwe, Growatt, Sofar, Gmde
Transport Package
Standard Export Carton with Foam Inside
Specification
600*300*520mm
Trademark
BR SOLAR
Origin
Jiangsu, China(Mainland)
HS Code
8507600090
Production Capacity
100000PCS/Month
Product Description
Specification For Lithium Battery
| Model | BLH-4800W | BLH-7200W | BLH-9600W | |
| Nominal Voltage | 48V (15series) | |||
| Capacity | 100Ah | 150Ah | 200Ah | |
| Energy | 4800Wh | 7200Wh | 9600Wh | |
| Internal Resistance | ≤30mΩ | |||
| Cycle Life | ≥6000 cycles@ 80% DOD, 25ºC, 0.5C ≥5000 cycles@ 80% DOD, 40ºC, 0.5C | |||
| Design Life | ≥10 years | |||
| Charge Cut-off Voltage | 56.0V±0.5V | |||
| Max. Continuous Work Current | 100A/150A(Can choose) | |||
| Discharge Cut-off Voltage | 45V±0.2V | |||
| Charge Temperature | 0°C~60°C (Under 0°C extra heating mechanism) | |||
| Discharge Temperature | -20°(~60°( (Under 0°Cwork with reduced capacity) | |||
| Storage Temperature | -40°C~55°C@ 60% 25% relative humidity | |||
| Dimensions | 680 x485 x180(220)mm | |||
| Battery Maximum parallel number | 15PCS | |||
| Weight | Approx:50kg | Approx:82.5kg | Approx:110kg | |
| Protocol (optional) | RS232-PC, RS485(B)-PC RS485(A)-Inverter,Canbus-Inverter | |||
| Certification | UN 38. 3, MSDS, ULl 97 3(Cell),IEC62619(CelI) | |||
The whole module is non-toxic, non-polluting and environmentally friendly;
Cathode material is made from LiFePO4 with safety performance andlongcycle life;
Battery management system(BMS)has protection functions includingover-dis-charge, over-charge, over-current and high/low temperature;
Small size and light weight, comfortable for installation and maintenance.
Packing & Shipping
Project of BR SOLAR
Our Projects are applied all around the World We Choose A Quality Material, Quality Is Our Culture.So Our Solar Products Have Been Successfully Applied In More Than 110 Countries Including UN Projects and NGO Projects.
Certificates Of BR SOLAR
Payment Terms and Delivery
| Payment Terms | T/T | EXW | 30% In Advance, 70% Balance Paid Before Delivery |
| FOB | |||
| CFR/C&F | 30% In Advance, 70% Against Copy Of B/L | ||
| CIF | |||
| L/C | Total Amount Above USD100,000, We Accept L/C At Sight | ||
| West Union | Total Amount Less Than USD1,000 | ||
| PayPal | |||
| Delivery Time | 15-20 Working Days After Receiving Down Payment | ||
