Launch Tlt235sb 3500kg Economical Hydraulic Two Post Lift for Small & Medium Sized Vehicles

Product Description

Packaging & Shipping

Package Size	2900*550*660cm
Package Gross Weight	645kg

Product Description LAUNCH The First-level Agent Distributor!
Better Service, Lower Price, Stock available LAUNCH TLT235SC CAR LIFT: Economical Two Post Lift For Small & Medium-sized Vehicles With double hydraulic cylinders and high strength chain drive, the 3500KG load capacity two post lift TLT235SB guarantees a stable and smooth lifting and lowering. Its patented slider bracket design improves the replacing efficiency.As the first priority, safety has been considered from design to manufacture. TLT235SB is equipped with bilateral manual safety unlocking system, 24V low voltage control box and cylinder travel limit switch. It is CE certificated.
LAUNCH TLT235SC CAR LIFT Features:
Bilateral manual safety unlocking system.
The cable and oil pipe are fully concealed; with decent and elegant appearance.
Double hydraulic cylinder and high strength chain drive makes stable and smooth lifting and lowering.
Wire rope equalization system forces synchronous movement of two carriages and effectively prevents vehicle from tilting.
24V low voltage control box(IP54 level)ensures operator's safety.
24V cylinder travel limit switch effectively protects cylinder and extends its lifespan.
Door rubber pad protects car door from being damaged in collision.
More lifting pads with different height meets the requirements for light lorries and SUVs.
Passed 115% dynamic loading test and 150% static loading test .
CE certificated.
Symmetric and asymmetric installation types are optional. (For SC model)
Specification:

Parameters	Specifcations
Rated Load	3500kg
Lifting Height	1850mm
Initial Height	110mm
Lifting Time	≤50s
Lowering Time	≥20s, ≤40s
Passing Width	2436mm
Overall Width	3400mm
Overall Height	3840mm
Motor Power	2.2kW
Motor Voltage	3 phase/380V or Single phase/220V
Working Noise	≤75dB(A)
Working Oil Pressure	16MPa

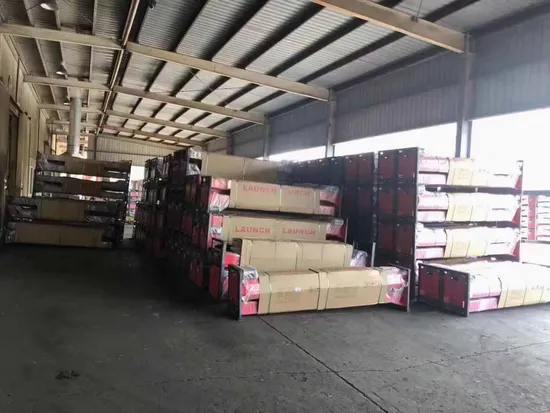

Detailed Photos Overseas Warehouse
Why Choose Us
Customer Review
Company Profile Shenzhen Hilson Electromechanical Equipment Co., Ltd. was founded on March 29, 2004, with a registered capital of 10 million.
It is an officially authorized first-class distributor of Launch. The company has a full range of LAUNCH products, a large number of stock inventory, fast delivery, perfect quality assurance and after-sales service. In recent years, the company's annual sales have reached as much as 27 million, the enterprise has a good development prospects and development situation. Our company provides a variety of automotive diagnostic tools and automotive equipment testing tools, covering scanners, car key programming, ECU tuning, service light reset, airbag reset and so on. Such as X-431 series. As a first-class agent of LAUNCH, our company provides customers with quality and quantity-assured products based on the principle of "Quality First, Reputation First". We are committed to be the leader in the automotive diagnostic industry and the top and most trusted supplier in China.
LAUNCH TECH CO.LTD hereby authorizes Shenzhen Hilson to enjoy primary distributor rights and sell the designated products of Launch on the designated e-commerce websites.
FAQ
1. Who are we? We are based in Guangdong, China, start from 2004,sell to Domestic Market(83.00%),South America(6.00%),North America(5.00%),Western Europe(3.00%),Eastern Europe(3.00%). There are total about 5-10 people in our office. 2. How can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3.What can you buy from us? LAUNCH Full Serise Car Diagnostic tool .Such as X-431 PAD V ELITE; X-431 PAD VII; X-431 PRO; CRP123X/CRP129X; CRP 919E BT 4. Why should you buy from us not from other suppliers? The company as LAUNCH authorized first-class agents, complete products, has a full range of LAUNCH products, with a large number of spot inventory, fast delivery, perfect quality assurance and after-sales service. 5. What services can we provide? Accepted Delivery Terms: FOB,EXW,DDP; Accepted Payment Currency:USD; Accepted Payment Type: T/T,Credit Card,PayPal; Language Spoken:English,Chinese
