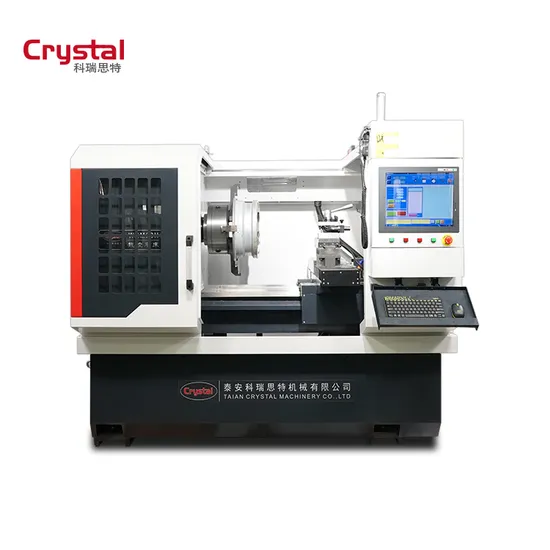

Wrm28h Mag Wheel Repair Diamond Wheel Cutter Aluminum Wheel Repair Lathe Machine
| US$14,000.00-16,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
WRM28H
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE
Condition
New
CNC System
PC
Repairing Alloy Wheel
Max 28"
Max. Swig Over Bed
720mm
Max. Swig Over Cross Slide
540mm
Cross Slide Travel
350mm
Size of The Three-Jaw Chuck
10′
Range of Spindle Speed
50-2000rpm
Spindle Bore
60mm
Stations of Tool Carrier
4 Position
Net Weight
1850kgs
Machine Base
Whole Cast Iron Base
Motor Power
7.5kw
Weight
2150kg
Packing Size
2290/1730/2200
Taper of Spindle Bore
1:20(Φ90)
Transport Package
Wooden Case
Specification
2200/1620/1870mm
Trademark
Crystal
Origin
China
HS Code
8458110090
Production Capacity
45 Sets/Month
Product Description
CNC alloy wheel lathe machines are designed for repair and refurbish alloy wheel , Be applied to the full face and lip of the wheel. The machine is very easy to operate ,operator don't need to learn complicated programme and do higher efficiency ,spectacular finishes
Alloy Wheel Repair Lathe Specifications
| ITEMS | WRM28H | |
| Max. swig over bed (mm)(inch) | Φ770(30') | |
| Max. Diameter of alloy wheel(mm) (inch) | Φ710(28') | |
| Max. Stroke of the X-axis(mm) | 390 | |
| Max. Stroke of the Z-axis (mm) | 880 | |
| Width of the rail (mm) | 300 | |
| Length of the rail (mm) | 1320 | |
| Size of the three-jaw chuck (inch) | 13'' | |
| Range of spindle speed (RPM) | 500-2000 | |
| Spindle speed control | Automatic | |
| Spindle bore (mm) | Φ82 | |
| Taper of spindle bore | 1:20(Φ90) | |
| Taper of spindle nose | A2-10 | |
| Adjustable stroke of carrier in X direction | 100mm | |
| Max. size of tool post | 25×25mm | |
| Stations of tool carrier | 4 position | |
| Min. setting unit of motor | (Z) long 0.001mm, (X) cross 0.001mm | |
| Moving speed of post | (Z) long 8m/min, (X) cross 6m/min | |
| Motor power | 7.5KW | |
| Machine size | (L/W/H) (mm) | 2200/1620/1870 |
| Package size | | 2300/1720/2170 |
| Net weight | 2400KGS | |
