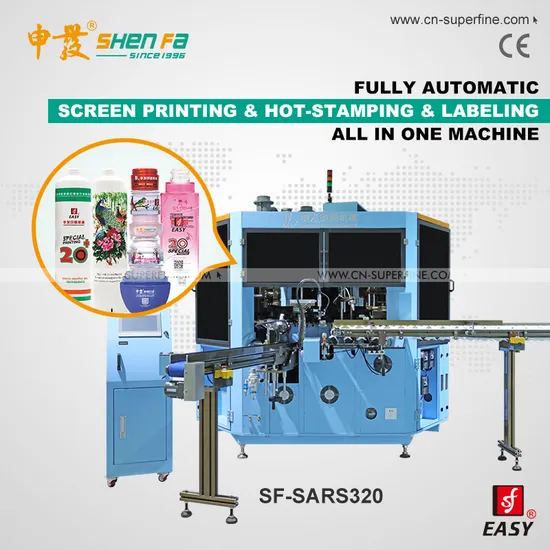

Automatic Multi-Function Screen Printing Machine for Cosmetic Tube Jars Printing

Product Description

Features:
1. Screen turntable utilize reliable PLC system and touch screen control with its carousel transport system makes it the most advance screen printing system available.
2. To satisfy different printing needs, to fulfill the purpose of multi-functional, and all-in-one production line.
3. Automatic feeder can be designed for specific products to increase efficiency.
4. To satisfy different requirements, auto cursor positioning, varnish system, stamping system or ink jet-direct systems are optional.
Paramers:

Model No.:	SF-SAR320
Product Size :	φ(20 - 80) X L (20 - 55)mm
Max. Speed :	60 pcs / min
Air Pressure :	5 - 7 bar
Machine Size :	2900 X 2300 X 2500mm
Power :	AC380V 50/60Hz 18Kw

Printed sample and machine detail
Automatic loading and unloading device
Electrostatic dust collection function device
Tube UV varnishing before screen printing device
I-Mark sensor for positioning function
Screen printing device
Hot stamping device
Labeling device
Assembling workshop
