PVC Powder Heating and Cooling Mixer for Plastic Pipe Production Line/High Speed Mixer
| US$500.00-15,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
WS
Application
Granules, Liquid with Suspended Solids, Powder
Application Area
Chemical
Certification
CE, ISO, SONCAP
Condition
New
Mixing Drum Shape
Circular Groove
Stirring Type
Forced
Warranty
1 year
Working
High Speed Mixer
Voltage
Customizable
Color
Customizable
Electric Parts
ABB/Omron/Siemens
Gurantee
1 Year
Delivery Time
35 Days
Motor
Siemens
Mixer Type
Powder Mixer
Operating Type
Continuous Operating
Layout Type
Vertical and Horizontal
Transport Package
Seaworthy Packing
Specification
10-3000L
Trademark
WINSOAR
Origin
China
HS Code
8477800000
Production Capacity
5000sets/Year
Packaging & Delivery
Package Size
3000.00cm * 1500.00cm * 1900.00cm
Package Gross Weight
3000.000kg
Product Description

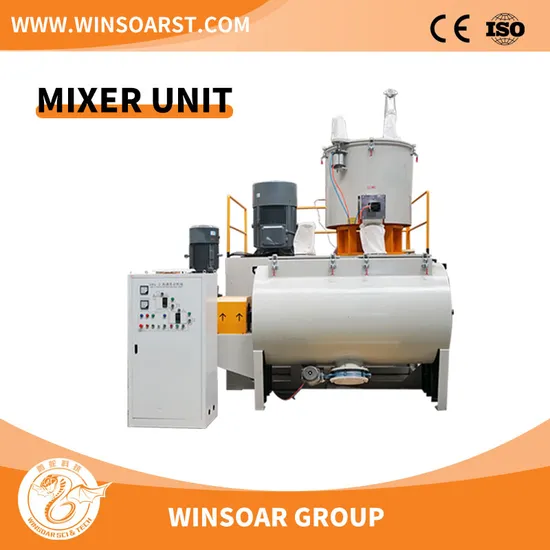

Product Description| SRL-Z series vertical type heating/cooling mixer | ||||||
| Suitable for plastics, rubber, chemical and food industry, for power or granulate material blending, coloring and drying. Typical application includes: production of PVC dry blend, filling and modification of plastics, pre-mixing of compounding process and premix of wood-plastic Composites. Features: All important parts (bow, mixing tool, control) are manufactured in our company, which ensure the quality of machine. All material in contact with product is SS304 or aluminum alloy and the product will not be contaminated. High cooling efficiency, short mixing time, easy and convenient to clean high output. Mixing tool can be designed according to different application. Mixing tool coated with wear-resistant material, which can increase service life and past dynamic and balance test, running smoothly. | ||||||
| Technical parameters of SRL-Z series vertical type heating/cooling mixer unit: | ||||||
| Model | Total volume(L) | Effective volume(L) | Motor power(kw) | Shaft speed(rpm) | Heating/cooling method | Discharging |
| SRL-Z100/200 | 100/200 | 75/160 | 12/22/7.5 | 650/1300/90 | Electrical/Water | Pneumatic |
| SRL-Z200/500 | 200/500 | 150/320 | 30/42/11 | 460/920/90 | Electrical/Water | Pneumatic |
| SRL-Z300/600 | 300/600 | 200/360 | 40/55/11 | 475/950/90 | Electrical/Water | Pneumatic |
| SRL-Z500/1000 | 500/1000 | 375/650 | 55/75/15 | 475/950/90 | Electrical/Water | Pneumatic |
| SRL-Z500/1600 | 500/1600 | 375/1200 | 55/75/18.5 | 475/950/68 | Electrical/Water | Pneumatic |
| SRL-Z800/2000 | 800/2000 | 600/1500 | 83/110/22 | 370/740/68 | Electrical/Water | Pneumatic |
