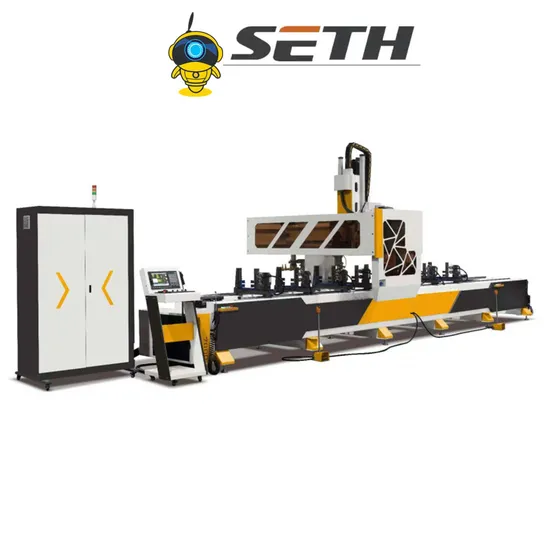

CNC machining center for aluminum profile
4-Axis CNC Profile Machining Center Gantry Type Aluminium 4-Axis CNC Profile Machining Center
4-axis profile machining center Designed for economical and efficient machining of aluminium and thin-walled steel profiles All operations, such as routing, drilling, tapping, thread milling, notching and sawing, are performed while the profile bar is stationary to protect the profile surfaces Machining with all tools at angles continuously adjustable from -90° to +90° Equipped with 8 positions umbrella tool magazine allows fast machining and short tool changing time,thus optimizing the machining cycles Auto clamp avoidance system improves the efficiency and safety Operator cam software with graphic 3D display of workpieces(optional) The magazine can be equipped with T slot saw blade for end milling of transom profiles. Angle heads are available for double and end machining (0°-90°-180°-270°) (optional) Creative dual industrial operation system and windows operation system Electronic light curtain protection for operator's safety Two separate working zones enable machining in shuttle operation (optional) 18.5" panel PC, USB ports and network connection Automatic Central Oil Lubrication System 4-axis controller camQuix (optional) Options
Shuttle operation for working on two sides Angle routing head for machining from below T slot blade for milling profile tenon and mullion Automatic tool sensor and length measurement Auto Chips conveyor system Barcode scanner Label printer Tool holders Collet chuck Saw head Tools 3.Technical Data

Model No.	LGS-cnc-7000
Travel Stroke
X-Axis	7000mm
Y-Axis	500mm
Z-Axis	350mm
A-Axis	0-180°
Spindle
Power	12.0KW
Max. Speed	24000rpm
Tool Shank	HSK 63
Tool Magazine
Magazine Type	Umbrella
Tool Shank	HSK 63
Capacity	8
Tool Chang Time	3-5s
Worktable Avoidance	Automatic Clamp Avoidance
Power Supply
Voltage	415V/380V/220V As per requirements
Transformer Requirement	25 KVA
Air Source	0.6Mpa~0.8Mpa
Air Consumption	120L/min
Cooling
Processing	Mist Spray Cooling System
Spindle	Air-Cooling
Lubrication
Ball Screw	Automatic Central Oil Lubrication System
Linear Guide	Automatic Central Oil Lubrication System
Dust Collection
Standard	Manual Push-pull Drawer
Optional	Chip Conveyor System
Protection
Machine Protection	Protection Doors
	Electronic Light Curtain Sensor Protection
Machine Data
Dimension(LxWxH)	9000x2300x2500mm mm
Weight	6000kg
Operation Requirements
Total Power	19.5KW
Environment Temperature	5~40 C. Degree
Environment Humidity	30~70
Vibration Intensity	<0.5G
Protect from floating dust, Corrosive Air
Grounding Resistance	<10Ω

5-axis profile machining center Designed for economical and efficient machining of aluminium and thin-walled steel profiles All operations, such as routing, drilling, tapping, thread milling, notching and sawing, are performed while the profile bar is stationary to protect the profile surfaces 6-side machining. From below with an angle head (optional) Equipped with 8 tools+1 big saw blade alongside umbrella tool magazine allows fast machining and short tool changing time,thus optimizing the machining cycles Auto clamp avoidance system improves the efficiency and safety Operator cam software with graphic 3D display of workpieces(optional) High-precision grinding stable and durable gear rack and pinion,ball screw,linear guide ensures smooth and accurate machining. Creative dual industrial operation system and windows operation system for convenient and more option operation Electronic light curtain protection for operator's safety Two separate working zones enable machining in shuttle operation (optional) 18.5" panel PC, USB ports and network connection Automatic Central Oil Lubrication System 5-axis controller camQuix (optional) Options Shuttle operation for working on two sides Angle routing head for machining from below Automatic tool sensor and length measurement Auto Chips conveyor system Barcode scanner Label printer Tool holders Collet chuck Saw head Tools Technical Data

Model No.	SETH-LGS-CNC-7000
Travel Stroke
X-Axis	7000mm
Y-Axis	600mm
Z-Axis	500mm
A-Axis	±120° (bigger than 0-180°)
C-Axis	±230° (bigger than left&right 0-360°)
Spindle
Power	17.0KW
Max. Speed	24000rpm
5-Axis Head	HSK F63/BT40
Tool Magazine
Magazine Type	Umbrella
Tool Shank	HSK F63/BT40
Capacity	8+1
Tool Chang Time	3-5s
Fixed Blade Dia.	400mm (500mm Optional)
Worktable Avoidance	Automatic Clamp Avoidance
Power Supply
Voltage	415V/380V/220V As per requirements
Transformer Requirement	25 KVA
Air Source	0.6Mpa~0.9Mpa 600L/min
Cooling
Processing	Mist Spray Cooling System
Spindle	Oil-Cooling
Lubrication
Ball Screw	Automatic Central Oil Lubrication System
Linear Guide	Automatic Central Oil Lubrication System
Dust Collection
Standard	Manual Push-pull Drawer
Optional	Chip Conveyor System
Protection
Machine Protection	Protection Doors
	Electronic Light Curtain Sensor Protection
Machine Data
Dimension (LxWxH)	10500x3600x2800mm
Weight	10000kg
Operation Requirements
Electricity	29KW 3Phase
Environment Temperature	5~40 C. Degree
Environment Humidity	30~70
Vibration Intensity	<0.5G
Protect from floating dust, Corrosive Air
Grounding Resistance	<10Ω

Features:
1.Uses for milling all kinds of holes and slots of aluminum doors, windows
and curtain walls or industrial aluminum profiles, and can perfectly
realize drilling and milling with 3D programming software.
2.Imported control system, servo motor, high-quality ball screw, linear
guide pair and bearing are adopted to ensure high machining accuracy
of the equipment.
3.The fixture position can be placed automatically.
4. Double worktable can process two or two profiles at the same time,
with interactive feeding and non-interference.
5. With 12-station tool magazine, automatic tool change.
6. Adopt high-speed motorized spindle imported from Italy, which
can finish machining at any angle within 90, and has high working
efficiency.
7. The 9-meter extension model can be customized.
1. Aluminum Facade Machining Center is advanced industrial CNC 4-axis profile machining systems.
2. Suitable for aluminum profile and other light alloys, as well as UPVC profile processing.
3. The milling head can drill within a range of 90 ° ~0 ° ~-90 ° with according tools at any position.
4. The machine completes milling, drilling, flexible tapping, grooving, steel drilling(within 3 mm) and other multi-functional precisely in one time, the profile was conveyed by the precise stationary avoid profile damage.
5. Adopts imported high precision linear guide ways, ball screws, gear racks and servo motor, ensuring smooth motion, positioning and processing in high precision.
6. High-quality imported automatic tool change based on automatic travel magazine, minimum the tool change time and rotation noise, maximum stability, precision, and cutting ability.
7. Magazine is equipped with 9 tool positions as standard, adjustable pneumatic special fixture to ensure efficient processing.
8. Double working areas for two kinds of profile loading, milling one after another, interactive feeding, non-interference.
9. Multiple safety protection structure to ensure operator safety.
10. Operation system based on the window environment. Friendly interface and remote control for quick trouble shooting.
11. Automatic clamp position function.
12. Online with ERP software, can realize scanning code and automatic processing(optional).
13. Gantry Type structure. High strength welding structure, heat aging and annealing processing,
guarantee high rigidity and high stability.
14. UPS & AC is included for protecting operation system.
Main parameters:Standard configuration:
Power supply:380v,50Hz
Working pressure:0.6~0.8 Mpa
Total power:16 kw
Spindle power:9kw
Spindle rotary speed:24000rpm
Spindle maximum output torque:6.4 NM
Tool magazine: 8+8
Tool shank model: ISO30
Clamps No.: 8
Processing travel:X-6000 Y-500 Z-300
Feeding speed: X50m/min Y25m/min Z10m/min
Processing size: 6000x450x300
Lubrication : automatic
Cooling :Oil mist pump
Overall dimension:9000x2230x3060mm
Weight: 5700kg

The machine has drilling, boring, milling, reaming, reaming, rigid tapping, linear interpolation, arc interpolation, helix interpolation, three coordinate linkage and other processing functions; Use international special CNC numerical control system; Suitable for all kinds of basic large parts, plate parts, plate parts, shell parts, mold and other precision parts processing; Adopt imported spindle reducer to meet the needs of high torque and high-speed processing; With high precision, high speed, high flexibility, environmental protection characteristics; Widely used in: aerospace, shipbuilding, power generation, military industry, heavy machinery, locomotives, machine tools, textile machinery, printing machinery, mold manufacturing and other industries.
