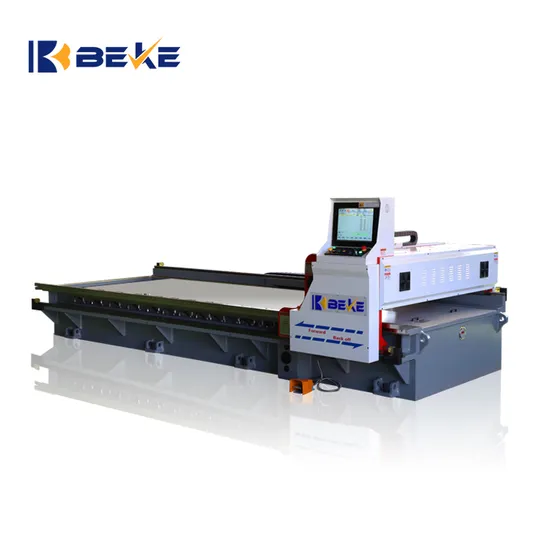

Automatic CNC Groove V Sheet Slot High Speed V Grooving Cutting Machine
Basic Info.
Model NO.
grooving machine
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Open-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
CNC Gantry Type Sheet Metal Plate Groovi
Gnkp 1500/3200
Max Width of Metal Sheet
1500mm
Max Length of Metal Sheet
3200mm
Max Thickness of Metal Sheet
4mm
Min Thickness of Metal Sheet
0.3mm
Min Distance Between V-Groove
7.5mm(Can Be Customized)
Machining Speed
0-90m/Min(Stepless Speed Regulation)
Main Motor Power
5.5kw
Hydraulic System
1.5kw/8L/10MPa
Transport Package
Plastic Film
Specification
5250*2400*1700mm
Trademark
BEKE
Origin
China
HS Code
8462490000
Production Capacity
50 Set/Month
Product Description
Product DescriptionProduct Parameters
| MODEL | GNKP-1500*3200 | ||
| Machining Capacity | Plate | Material | Q345 |
| Length | 3200mm | ||
| Width | 1500mm | ||
| Thickness | 0.3mm-4mm(Sheet flatness<3mm) | ||
| Minimum edge | 7.5mm(Can be customized according to customer needs) | ||
| Body workbench panel thickness | 60mm (Q345) | ||
| CNC Specifics | Control Type | CNC controlled 4 axes(X, Y, Z1, Z2) | |
| Display | 17-inch high-definition LCD touch screen | ||
| Storage Capacity | 99 groups can be stored, and 999 small V ports can be slotted in one group | ||
| Transfer Method | Ball screw/linear guide/rack and pinion | ||
| Machining Speed | X Axis Forward-Cutting | 0-90m/min() | |
| X Axis Backward | 0-90m/min | ||
| Tool holder (Y1 axis) and end pressing material (Y2 axis) | 20m/min | ||
| Tool holder (Z axis) up and down | 20m/min | ||
| Machining Precision | Y1 Precision | ±0.01mm | |
| Y1 Stoke | 1500mm | ||
| Z Precision | ±0.01mm | ||
| Z Stoke | 55mm | ||
| Driving Mode | X-Axis | 5.5KW Lnverton Servo Motor | |
| Z-Axis | 1KW Mitsubishi Servo Motor | ||
| Y1&Y2-Axis | 1KW Mitsubishi Servo Motor | ||
| Clamping Device | Hydraulic System | 1.5Kw/8L/10Mpa | |
| Dimensions | Length | 5250mm | |
| Width | 2400mm | ||
| Height | 1700mm | ||
| Weight | 8000kg | ||
| Table Flatness | ±0.02mm/M | ||
| Main Power | 380V/50Hz/3Phase | ||
