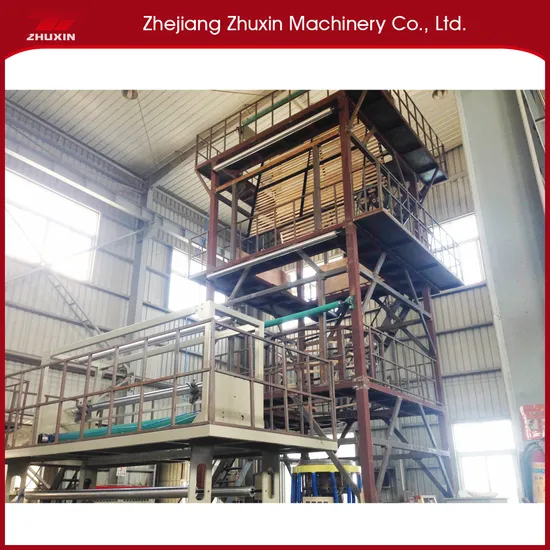

Zhuxin PE Three-Layer Plastic Blowing Film Machine

Product Description

Zhuxin PE Three-Layer Plastic Blowing Film Machine We are Film Blowing Machine manufacturer/supplier from china factory. We also can produce the Film Blowing Machine according to the client's requirement.
We are always try our best to become the good Film Blowing Machine manufacturer/Supplier and welcome the customer from all over the world to contact with us. PRODUCT INFORMATION Categories: Film Blowing Machine Brand: Zhuxin Paper bag machine, film blowing machine Model: 3SJ-50/55/65 FOB port: Ningbo sea port Terms of Payment: L/C, Western Union, T/T Comments: It with single rolling friction, lift up and down which is suitable for industrial film and agricultural film.

Model		3SJ-50		3SJ-55		3SJ-65
Suitable material		HDPE,LDPE,LLDPE		HDPE,LDPE,LLDPE		HDPE,LDPE,LLDPE
Reduced diameter of film(mm)		800-1200		1000-1500		1200-2000
Single-face Thickness of film(mm)		0.028-0.20		0.028-0.20		0.03-0.20
Max.output(kg/h)		120		150		200
Extruder
Screw diameter	50*3		55-60-55		60-65-60
Screw L/D	28:1/30:1
Screw material	Sacm-645/38 crmoala
Cylinder material	Sacm-645/38 crmoala
Cylinder cooling(w)	370*2/3		370*2/3		550*3/3
Driving motor(kw)	15*3		A18.5+B22+C18.5		A22+B30+C22
Cylinder temperature control	3*3		3*3		3*3
Average power consume(kw)	80		95		120
Type of die
Die size(mm)	280		350		500
Temperature control	4
Air ring	1
Air blower power (kw)	7.5		11		15
Center steady stick	1
Take up unit
Roller width(mm)	1600		2100		2600
Take-up speed(m/min)	5-50
Take-up motor(2.2)	1.5		2.2		2.2
Winding Unit
Type	Surface friction type
Winding motor(kw)	1.5		2.2		2.2
Winding speed(m/min)	5-50		5-50		5-50
Voltage	380V,50HZ,3PHASE
Outline diameter (L*W*H)(mm)	9500*4500*7500		10500*5000*9000		11500*5500*10000
Weight(T)	5.5		4		5
Optional equipment 1.Auto loader 2.Film surface treater 3.Air compressor 4.Air cooling device 5.Air shaft

PERFORMANCE AND CHARACTERISTICS Applicable for the materials as LDPE, HDPE, LLDPE, etc. It is widely used to manufactuer composite film basic material, liquid film, contractive film, protective film, cable film, macromolecule adhensive film, multi-functional industrial film products, can better meet operational requirements of high accuracy and high speed color printing, composite and painting products.
2.Features of the machine set
The tractor adopts horizontal swing rotation which replaces the die rotation and simplifies die structure. It solves problems of leakage, poor, sealing, and maintenance and improves the quality of film.
The IBC internal bubble cooling system improves film quality and transparency, finally increases the output.
High precision fold diameter control system reduces deviation by controlling air blower speed and adjusting air flow.
EPS photoelectron correct errors system can correct automatically, which ensures the roll film evenly. High accurate mould and effective air cooling system ensure high quality film and output.
