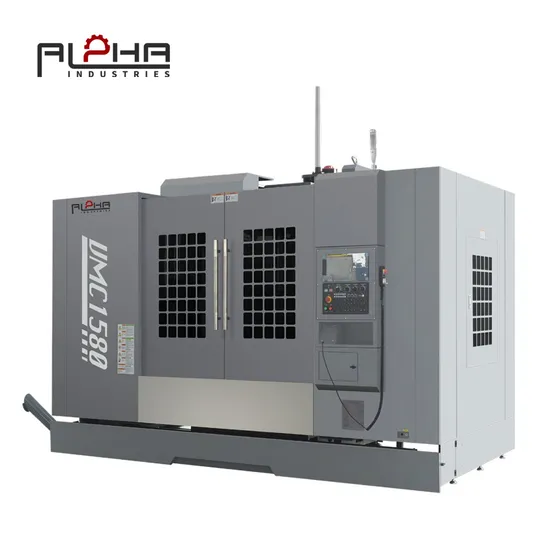

Lathe Tool Fabricado En China Vertical Machining Center Vmc1580 CNC Machine

Product Description

Product Parameters

Model	Model	VMC1370	VMC1580
Travel	X-axis	1300mm	1500mm
	Y-axis	700mm	800mm
	Z-axis	700mm	700mm
	Spindle nose to table surface	110-810mm	BT40:190-890mm BT50:210-910mm
	Spindle center to column surface	750mm	855mm
Worktable	Table size	1400×700mm	1600×800mm
	Max. loading	1000KG	1500KG
	T-slot width	18mm	22mm
	T-slot quantity	5	7
Spindle	Spindle taper	BT40	Taiwan danquan (BT40-10000 / BT50-6000)
	Spindle speed	10000rpm	10000rpm 6000rpm
	Spindle motor	BT40:11/15KW	BT40:11/15KW BT50:15/18.5KW
Tool	Max. tool dia.	φ80/φ150mm	BT40:φ80/φ150mm BT50:φ110/φ220mm
	Max. tool length	300mm	BT40:300mm / BT50:350mm
	Max. tool weight	8KG	BT40:8KG BT50:15KG
Rapid Movement	X, Y axis rapid feed	24000mm	24000mm
	Z axis rapid feed	20000mm	18000mm
	Cutting feed	1-10000mm/min	1-10000mm/min
Accuracy	Position accuracy	±0.08mm	±0.01mm
	Repeat positioning accuracy	±0.003/300mm	±0.08mm
Power Device	Power form	3-phase AC 380V±10% 50Hz±10%
	Capacity	20KVA	30KVA
Coolant System	Capacity	450W	750W
	Cooling pump power	380V	380V
	Cooling pump flow	2m³/h	2m³/h
	Rated head	30m	37m
Air Supply	Using air pressure	0.6MPa	0.6MPa
Dimension and Weight	Dimensions	3700×2750×2800mm	4050×3080×2900mm
	Net weight	8200Kg	12000Kg
Linear Guide Rail Diameter (X/Y/Z)		45mm/45mm/45mm	55mm/45mm/55mm

Company Profile
Certifications
Exhibition
Packaging & Shipping
FAQ
FAQs
Q1: How is the warranty?
A1: Warranty time is 15 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: We have stock for popular models, we produce according to order.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 40 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services under Alpha brand.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
