High Efficiency New Product ER EQ Type Electric Chain Hoist 0.25 Ton 0.5 Ton 1 Ton 2 Ton 3 Ton 5 Ton 7.5 Ton with Hook Troelly Type

Product Description

Product Description

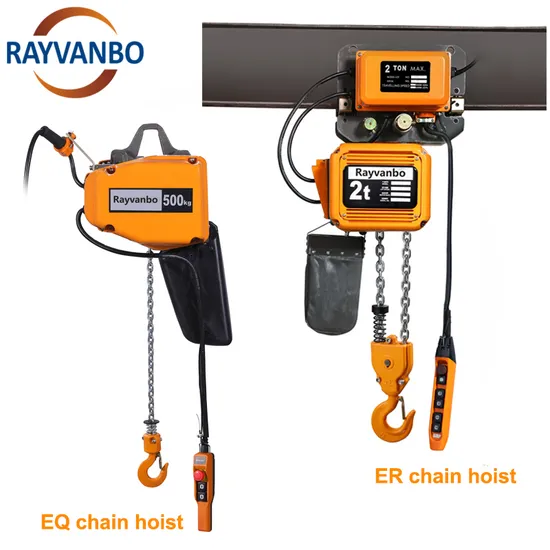

ER model electric chain hoist EQ model electric chain hoist
1. Electric Motor:
* The hoist is powered by an electric motor, typically mounted on the hoist body or housing. * The motor provides the necessary power to drive the lifting mechanism 2. Lifting Mechanism:
* The lifting mechanism consists of a chain or wire rope that is wound around a drum or sprocket. * In the case of an electric chain hoist, a load chain is used. The chain is designed to handle heavy loads and is driven by the electric motor. 3. Load Chain:
* The load chain is a durable chain made of high-strength materials, capable of withstanding the weight of the load being lifted. * It is attached to a lifting hook or other load attachment device. 4. Lifting Hook or Attachment:
* The lifting hook or attachment is the point where the load is connected to the hoist. * It is designed to securely hold the load during lifting and lowering operations. 5. Control System:
* Electric chain hoists are typically equipped with a control system that allows operators to control the lifting operations. * Control options may include push-button pendant controls, radio remote controls, or in some cases, a control panel on the hoist itself. 6. Safety Features:
* Electric chain hoists often come with various safety features, such as overload protection, emergency stop buttons, and limit switches to prevent overtravel. * Some hoists also have thermal protection to prevent the motor from overheating during prolonged use. Product Details
Product Parameters

Type	Capacity(Ton)	Lifting Height(m)	Lifting Speed(m/min)	Gourd	Sports Car
ER01-01Y	1	4	7.0	47	38
ER02-01Y	2	4	7.0	91	44
ER02-02Y	2	4	3.5	54	44
ER03-01Y	3	4	7.0	104	55
ER03-02Y	3	4	3.5	108	55
ER05-02Y	5	4	3.5	132	77
ER075-03Y	7.5	4	2.3	175	77

Type	Capacity(Ton)	Grade	Package	Chian Size(mm)	Net Weight	High Speed(m/min)	Low Speed(m/min)
EQ 0.25-1 IS	0.25	M5	50*35*34	5.6	30	15	3
EQ 0.5-01 IS	0.5	M5	50+35*34	5.6	30	7.8	1.6
EQ 01-01 IS	1	M5	60*40*38	7.1	40	5.2	1
EO 02-02 1S	2	M5	60*45*40	7.1	40	2.6	1.5
