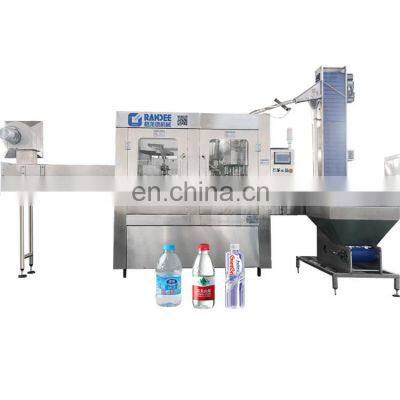

Water bottle machine filling automatic small bottle water filling and capping machine for mineral water

Product Description

Product Description
Water bottle machine filling automatic small bottle water filling and capping machine for mineral water Product DescriptionMachine description:1. The automatic water filling machine use direct connection technology between air conveyor and in-feeding starwheel to substitute in-feeding screw and conveyor to ease the process of bottle-size-changing. 2. Neck-hanging technology is applied in bottle transportation of the automatic water filling machine. Instead of traditional starwheel, we use neck-hanging gripper to make bottle-size-changing easily , without equipment height adjustment ,only arch board and starwheel such little nylon parts need to be changed. 3. Specially-designed rinser grippers which are made of stainless steel are firm and endurable, with no contact to screw part of the bottle to prevent second pollution in this automatic water filling machine. 4. Rapid gravity filling valve with high flow makes filling faster with accurate liquid level and without any liquid loss. 5. Splint of starwheel using twist descending way to simplify the process of bottle-size-changing. The automatic water filling machine applies to the production of purified water and mineral water. Features:1.It is adopted that direct connection between air conveyor and inlet starwheel instead of screw and conveyor chains, which is easier for bottle changing.2.There is no need to adjust the height of equipments through neck holding tech for bottle transportation. And what is only to change some spare parts.3.High speed filling line is of clamp transferring technology. Bottle shapes are more varied, and the working table inside the machine is more laconic.4.By 3-in-1 monoblock, the bottle goes through rinsing, filling and capping with little abrasion, and the transferring is stable, bottle changing is easier.5.Specially designed stainless steel bottle clamp dose not contact the thread parts of the bottle neck, avoiding the second contamination.6.High speed and large flow filling valve assures the high filling speed and exact fluid level.7.Parts contact with the liquid are all of excellent stainless steel or food level plastic. The electric system is of international brand and achieves the national food sanitary standard.8.The bottle-out starwheel is of screwdown shape. When bottle size is changed, there is no need to adjust the transferring chain's height.9.3-in-1 monoblock is composed of rinser, filler, capper, frame, sealing window, main motor and transferring system, cap unscrambler and electric control system etc. Main technical parameter:ModelCGF8-8-3CGF14-12-5CGF16-16-6CGF18-18-6CGF24-24-8CGF32-32-10CGF40-40-12Capacity(500ml/BPH)200030004000600080001200016000Suitable bottle shape and size(mm)Both PET round of square bottle, 220-2000ml, Dia:50-180, Height: 150-340Compressed air pressure0.3-0.7MPaBottle washing mediumSterile waterWashing pressure0.25MPaMain motor(KW)1.52.22.22.235.57.5Dimension(mm)2000*1600*23002200*1800*23002400*1900*23002500*2000*23002700*2100*23002970*2260*27003780*2800*2700Weight(KG)2000250030003500450065008500 Machine show:Deatils informationDeatils show:Washing part:1.The bottle enters into the rinsing part of three-in-one machine through air conveyor.2.All 304/316 stainless steel rinse heads, water spray style inject design.3.304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.4.After the gripping, the bottle is turned upside down with 180 degree and cantred above a spraying nozzle which directs a stream of rinse water into the bottleFilling part:1.304/316 Stainless steel high precision filling nozzle2.Filling volume adjustable in fine tank, same liquid level after filling3.All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean4.304/316 stainless steel filling pump5.Efficient spray nozzle rinse thoroughly and save water for flushingCapping part:1.Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping2.All 304/316 stainless steel construction3.No bottle no capping4.Automatic stop when lack of bottle5.Capping effect is stable and reliable, Defective rate ≤0.2%6.Suitable for PET bottle screw capAir conveyor:1.Air conveyor is fixed on the floor, with fan installed on the top.2.Air filter is positioned at every entrance of air fan, to prevent dust blown into bottles.3.Bottles are held on the neck in the conveyor and transported into filling machine by blowing power.4.All are made of stainless steel SUS 304 /316.5.Rack made by high quality carbon steel welded.6.High qualityProduct conveyor belt:1.Energy saving. High efficient. Adapt to customer factory layout2.Special lubrication system, keep products clean, health, safety3.Extended service life4.Electric eyes design keep whole line running safety and quickly5.Overload protection mechanism to effectively ensure the safety of the machineRelated productRO System This RO system we can make to match up with your water filling machine from capacity from 500L/Hr to 50000L/hr.This system included sand filter, carbon filter, sodium exchanger, precision filter, Reverse Osmosis, UV, Ozone generator, Ozonized Tower, Pure water tank.This system is made of SUS304 or SUS316 material, thickness is 2.5mm-3mm we promised. Blowing Machine with different options 1. Semiautomatic Blowing Machine for 800BPH-2000bph from 0.2-2.5L bottle with 2 or 4 cavities.2.Full automatic blowing machine from 2 cavity, 4 cavity, 6 cavity, 8 cavity, 9 cavity,etc from 2500BPH to 12000BPH for 500ml bottle. Automatic PVC sleeve labeling machine Capacity: 100-350bottles/min can be chosenLabel material: PVC PET OPS, etcBottle material: PET PE PP GlassBottle Diameter: 28 ~ 120mmBottle Height: 15~320mmBottle shape: round, square, ellipse, rectangularLabel length: 30~250mm(max) Automatic pet film shrink packing machine Flow: Feeding→ pushing bottles→ film covering and sealing→ shrinking→ coolingSpeed: 8-12packages/minPower (rated/real): 26kw / 16kwMax. packing size: 420*300*350mm(LxWxH)Max. sealing size: 650mm Company InformationOur teamFAQQ1: How to find suitable machine or complete beverage production line?A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn •Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements • Discussion: Specify the items and what are you exactly looking for. Q2: Are you a trading company or a manufactory?A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms . Q3: Do you have technical support after we purchased your machines?A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems. Q4: If you buy our machines, can you offer us wear-out spare pats?A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing. Contact information:If you are interested in our product, please send me an inquiry.
