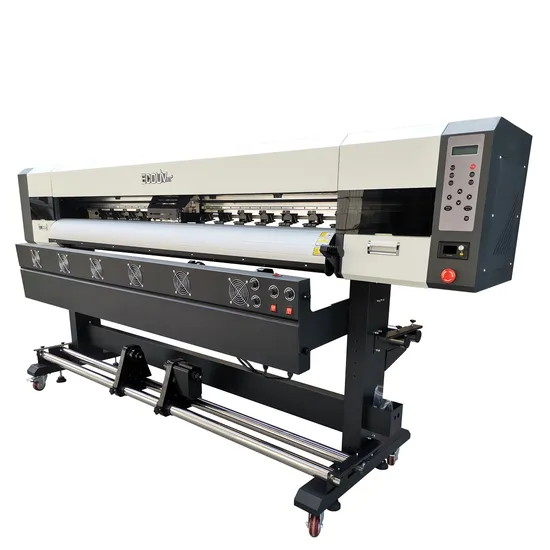

1.2m 1.6m 1.8m 6feet 2heads Large Format Eco Solvent and Sublimation Printer
Basic Info.
Model NO.
DS-7402SJ
Plate
Lithography Printing
Structure
Inkjet Printer
Color & Page
Multi-Colour Printing Press
Usage
Paper Printer, Label Printer, Cloths Printer
Automatic Grade
Semi-Automatic
Printing Interface
LAN Cable
Printing Speed
Inkjet Printer
System Supported
Windowsxp64
Printing Type
Digital Inkjet Printer
Ink Type
Eco Solvent Ink
Printhead
Dx5, Dx7, XP600, I3200, I1600
Printing Width
1.65m, 1.85m, 2.55m, 3.25m Eco Solvent Printer
Rip Software
Maintop
Take-up System
Dual Motor Take-up System
Heating System
Front Infrared Heating System
Dry System
Pre, MID, After Heating Dry System
Application
Indoor Outdoor Advertisement
Transport Package
L3000 X W 900 X 720mm
Specification
plywood box and wrap film
Trademark
ECOUVjet
Origin
Shanghai, China
HS Code
8443322100
Production Capacity
6200sets/Year
Product Description
1.2m 1.6m 1.8m 6feet 2heads large format Eco Solvent and sublimation printerWish you Enjoy your Most Assured Purchasing From DoSIGN Printing Machines
Description:
1.6M, 1.8M, 2.5M, 3.2M are high-precision Eco-solvent printer or Roll to Roll UV Printer with a width of 1.6m, 1.8m, 2.5m, 3.2 meters , The print heads are using dual DX5, DX7, XP600, i3200, i1600, 4720 or 5113, Heads with 6 colors C, M, Y, M ; C, M, Y, K, LC, LM, and can install DX5 DX7 print heads for option, It can be used for indoor and outdoor advertising signs printing business, print on mate and glossy vinyl sitcker, frontlit flex banner, backlit banner, canvas, foil film, soft film etc. It is a high resolution printing machine up to 2880 dpi.
Specifications:
| Model | Large format Digital Eco Solvent Printer | ||
| Machine Width | 70cm, 1.3m, 1.6m, 1.8m, 2.5m and 3.2m for option) | ||
| Printheads | 1 or 2 Pieces XP600 / DX5 / DX7 / 4720 / I3200 / i1600 for option | ||
| Ink Type | Eco Solvent Ink, Soft UV Ink, Sublimation Ink | ||
| Max. Printing Width | 70CM, 1.3M, 1.6M, 1.8M, 2.5M, 3.2M | ||
| Maximum Resolution | 1440dpi Max. | ||
| Print Height | 1mm to 5mm adjustable | ||
| Ink Colors | 4 / 6 Colors(C,M,Y,M,Lc,Lm) | ||
| Printing Materials | Vinyl, Flex, Polyester, Backlit, window film etc | ||
| Data Interface | LAN Cable | ||
| Working Environment | Temperature 15ºC-30ºC | ||
| Humidity 40%-60% | |||
| Power | 50-60HZ 400W-1600W | ||
| AC220V±10% / AC110V±10% | |||
| Operating System | Windows XP, Windows 7, Windows 8 | ||
| Packing Dimension/ GW | L3000 X W 800 X 720mm / 280KG | ||
| Printer Dimension / NW | L2500 X W 800 X 1250mm / 220KG | ||
| Added Value | 2 Liters Big Capacity CISS system | ||
| Auto Feeding & Take-up Media System | |||
| Infrared Heating system & Front Dry Fans | |||
| LED Strip light for Carriage Position | |||
Details Photos:
Applications:
Packing & Delivery:
Customers Views:
Feedbacks:
Contact & Inquiry: 1----Send your inquiry online directly You will get big discount price soonest to get largest benifit and save your money.
Top Quality Printing machines and professional after-sales technology service is our company's developing life!
More printers details like Sublimation Printer, 3D UV Printer, T-shirt printing machines, dtg printer, edible printer etc, welcome you leave message to us or WhatsAPP directly. Thank you & Cheers in advance~~~~
