Double Rocker Arm Folded Arm Curve Edge Bander Machine

Product Description

Product Parameters

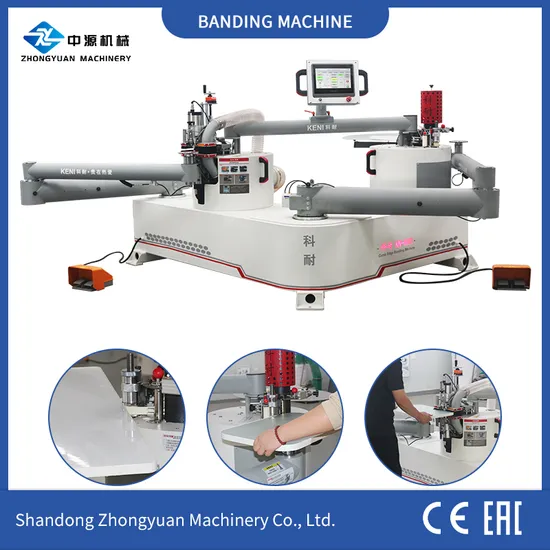

Double Stacked Arm Fully Automatic Curve Edge Banding And Trimming All-in-one Machine
1.Double stacking arm structure:Edge banding and trimming each have separate stacking arm work, which can easily realize 2-person processing and improve work efficiency.
2.Opening and closing limiter/pressing strip assembly:When feeding the belt, it automatically returns to its position; when the edge banding belt is finished, it automatically opens. (Avoid the accumulation of glue due to long-term rotation of the rubber roller)
3.The angle of the edge banding/trimming assembly is adjustable, suitable for a variety of plates, increasing compatibility. Edge banding rotation angle -70~+35° Trimming rotation angle ±45°.
4.Built-in arm brake:Release the suction cup and the brake will start automatically to prevent the arm from swinging.
5.Auxiliary automatic feeding:Applicable to irregular plates such as round, oval, rounded rectangle, etc., free your hands for small plates.
6.Automatic acceleration and deceleration:Automatically decelerates when reaching a corner, allowing workers to turn the board easily.
Edge Banding
1.Laser distance measurement docking:Using infrared laser sensing, docking error ±0.3mm (straight edge length greater than 40cm), precise head-to-tail docking, automatic edge banding strip breaking.
2.Internal coating PUR, EVA dual-use upper glue pot can quickly dissolve glue, touch screen one-button glue discharge, simple and convenient.
3.Auxiliary hot air:Heat and soften the edge banding strip to make the edge banding strip and the board more firmly attached.
4.Standard secondary auxiliary pressing wheel:The edge banding strip and the board are pressed twice to increase the banding firmness.
5.Upgraded cutter assembly:Ultra-fast response, ensure vertical cutting accuracy, fast cutting, no burrs.
6. Automatic spraying of glue remover:Avoid glue sticking at the bonding wheel and the pressure strip plate to ensure the edge banding effect.
7.Optional: Small workpiece operation platform.Suitable for small board edge banding.
Edge Trimming
1.Trimming start-stop device:The photoelectric device automatically senses the plate and stops rotating after 5 seconds if it does not sense the plate.
2.Profiling power wheel:During trimming, the plate rotates according to the speed of the profiling wheel.
3.Upper and lower trapezoidal knife design.Scrape as moving, scrape off the excess edge banding and glue line after trimming is completed.
4.Trimming cleaning device:Automatically sprays clean glue liquid, the spray can be adjusted.

Power supply voltage	380V/three-phase four-wire/50HZ	Trimming rotation angle	±45°
Total power	6.8kw	Edge width	14-70mm
Air source pressure	0.6-0.8Mpa	Edge thickness	0.5-3mm (related to the material of the edge)
Glue pot capacity	2600ml	Trimming board thickness	<14mm single-sided trimming, 14-70mm Upper and lower double trimming (related to trimming knife)
Glue pot temperature	110°C-210°C	Inner arc radius	≥20mm (special operation can seal radius 4mm)
Hot melt adhesive type	PUR/EVA	Edge sealing speed	0-30cm/s
External vacuum	Ф150mm	Profiling speed	0-24cm/s
Air volume	9800m³/h	Gas tank capacity	2L
Edge rotation angle	-70~+35°	Edge sealing material types	PVC\wood veneer\melamine\plastic and other materials

Detailed Photos
Product Application
Packaging & Shipping

Before all products are shipped, we will arrange quality inspectors to conduct quality inspections. We can send quality inspection videos to customers. After the inspection is qualified, we will arrange special personnel to pack the products into semi-wooden boxes or full wooden boxes. The entire packaging and shipping process is very strict. Company Profile
Shandong Zhongyuan Machinery Co., Ltd. is committed to developing ,manufacturing and servicing of the woodworking machinery industry, improving production efficiency for the majority of manufacturers, and contributing to the development of the industry.
The company's factory covers an area of more than 30,000 square meter, with more than 200 employees, more than 20 engineers of various types,more than 100 sales, an exhibition hall area of more than 1,500 square meter, and a warehouse area of more 4,000 square meter, providing customers with the best quality service as all times.
* In-depthcooperation with 8000 companies.
* 100 patents and certificates.
* Factory more than 30000 square meters.
* After sale Service experienced and knowledgeable team of technical support. Exhibition

Certifications
FAQ
Q1: I already have an edge banding machine and I would like a trimming machine. Do you have any recommendations?
A: Yes, we have a matching trimming machine. You can choose the product that suits you according to your actual production needs. Of course, we will also ask you some questions, such as plate size, plate thickness, equipment voltage, number of workers, and so on. With so many types of products, there is always one that is suitable for you.
Q2: Can your edge banding machine use PUR adhesive?
A: PUR glue has high requirements for glue pots. We recommend using models such as F14620-3700-3350 for up glue pots, depending on your specific needs.
Q3: Are you a factory or a trader?
A: We are a 20 year source production factory with rich production experience and a total of 8000+customers. We can provide you with thoughtful and accurate after-sales service.
Q4: How should I make the payment?
A: Firstly, you will pay a 50% deposit as a prepayment, and then we will start producing the equipment. After the
equipment is completed, I will send you photos and videos, and you can make the remaining payment. After receiving all the payment, we will arrange for the fastest container to ship to you. You will receive the equipment soon, and I will arrange professional technicians to coordinate with you regarding installation issues.
Q5: How long is the delivery time?
A: Conventional equipment takes 10-12 days, customized voltage or other parameters take around 30-45 days.
