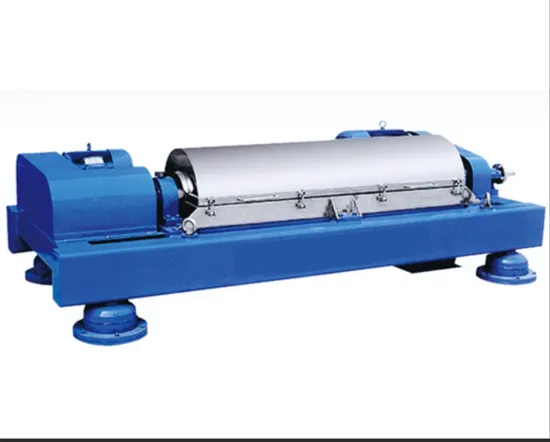

Shenzhou Plant Extraction Continuous Horizontal Sedimentation Centrifuge

Product Description

3- Phase Decanter Tricanter Centrifuge
Three phase horizontal spiral centrifuge with the standard horizontal spiral centrifuge works similar to solid density is different, relying on centrifugal force field to achieve settlement stratification, the lighter liquid closer to the rotation axis line, the closer the heavier liquid drum wall, the heaviest solid settling in the drum wall, the severity of their respective channels discharging the liquid from the door design, the solid phase is discharged of screw conveyor. Part of the machine can be equipped with three-phase separator to the heart pumps, one of which may be the second phase of the cardiac pump discharge, another liquid discharged through the liquid collection chamber cover. Using centripetal pump liquid discharge liquid gasification can reduce and prevent the liquid separated from each other within the casing leak remix. The use of three phase centrifuge can be divided into:
Light liquid / heavy liquid / solid phase three-phase separator Light solid phase / liquid / solid phase three-phase separator weight
Light liquid / solid phase / liquid phase separator weight
Standard three-phase centrifuge means for: light liquid / heavy liquid / solid phase of the three phase separatorMain applications
Industrial and municipal wastewater treatment
Oil & gas drilling mud/fluid control
Washing, classification and dewatering of amylum and starch
Mycelium separation from zymotic fluid of antibiotic
Dewatering of soybean and wheat protein
Dewatering of fish power and fish meet
Dewatering of grains
Clarification and extraction of fruit juice
Clarification and purification for animal and vegetable oil
Production and extraction of olive oil, palm oil, avocado oil
Separation and purification for coal tar
Grading of kaolin and graphite
Classification and dewatering for dyestuff and pigment
Float wash of extractive coal and dewatering of coal mud
Classification and dewatering for minerals
Vertical base design and symmetrical arrangement of motor and bowl assembly, that ensures stable operation and less vibration.
Main parts such as the bowl and conveyor are made of corrosion-resistant stainless steel or duplex steel, offering high maximum bowl speed and high centrifugal force.
Dual motor drive makes bowl speed and conveyor speed adjustable.
Screw conveyor flights tiled or lined with ceramic, tungsten carbide, or other hard alloys.
Optionla planetary gearbox and hydraulic gearbox, offering wide range of differential speed adjustment.
Multiple safety protection: bowl speed and differential speed detection, over-vibration protection, motor overload and overheat protection, bearing temperature monitoring, conveyor torque protection and gas-tight explosion-proof protection.
JG type rubber vibration isolator, no need of anchor bolts.
Wear protection
1.Scroll with welded hard facing or spray coating
2.Scroll Inlaid with tungsten carbide tiles
3.Bowl inner wall welding with high strength wear resistant strips
Solid discharge port 1.Tungsten carbide or ceramic bushing
2.Simple structure and easily replacement
3.LOW maintenance cost
Parameters

Models	Basket Dia (mm)	L/D Ratio	Bowl Speed (r/min)	G-force	Main Motor Power (kW)	Weight (kg)	Dimension (L*W*H) (mm)
LWS355*1460	350	4.17	4000	3100	22	2020	3235*1010*1029
LWS420*1680	420	4	3500	3080	30-37	3500	3459*1320*1303
LWS530*2120	530	4	3200	3040	45-55	4200	4054*1650*1431

Hydraulic scroll driving system The hydraulic conveyor driving is a closed driving system, including the centrifuge bowl and conveyor. It is independent from the bowl driving. The hydraulic conveyor driving is different from other mechanical conveyor driving system which relies on bowl rotating to generate differential speed. The hydraulic driving device is directly mounted on the conveyor assembly, and is driven by hydraulic pump aggregate. Therefore it is independent from the bowl driving system.

Operating principle The hydraulic conveyor gearbox is connected with the bowl of the decanter centrifuge, both of them rotates in high speed. The spline shaft on the gearbox rotor is connected with the conveyor, and rotates in different speed driven by the high pressure oil, that's we call the differential speed. The conveyor gearbox is connected with the hydraulic pump by flexible hose, so there is no need of gearbox between the bowl and conveyor. Conveyor torque gives pressure to the hydraulic system. With the action of such pressure, the different speed can by adjusted by adjusting the oil supply and flow rate.
Main features No gear driving device required
No damage to the parts due to overload
Free of torque vibration (fluttering)
Direct readable torque and differential speed △n
△n independent from bowl speed
Minimum moisture content of sludge
High clarification of liquid phase
Power for solid conveying varying from solid loads
Dewatering varying from changes in △n
"Constant" moisture content of sludge
Non-sensitive to feeding quantity, minimize blockage
Safety pin design ensuring safe operation
Our service
The technical and after-sale services are listed as follows:
1. Provide free technical training, guidance and information of accessories.
2. Our technical staff could instruct our customers on the installation of connector and accessories on site, and deal with technical and quality issues.
3. We guarantee more than 10 years' service life of our products with 2 years' warranty and life maintenance.
4. Once receive the customer complaints, we will response within 24 hours.
5. Free maintenance and replacement will be provided if defects result from quality failure of our product.
6. Our company will provide technical services by phone, fax, e-mail, etc., please refer to the contact details.
7. Our company will implement the contract strictly; deliver the products to location specified by our customers for free in accordance with the mode of transportation.
8. Our company will provide perfect after-sale services and technical support.
