6/ 12/ 24 / 48 Channel Seismic Cable and Seismograph Cable for Seismic Imaging, Land Survey Refraction, Reflection, Masw, Mam, Vsp and Rayleigh Wave Survey

Product Description

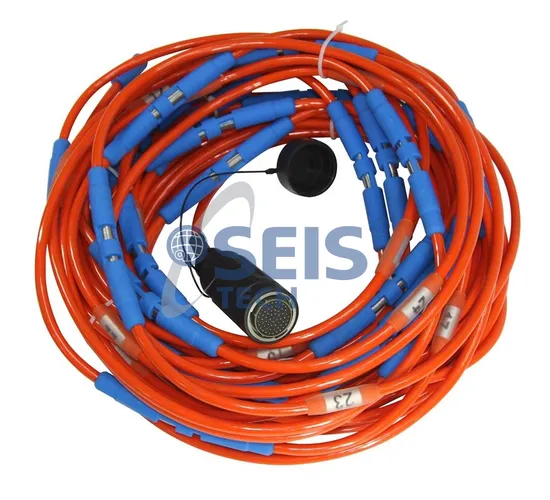

ST series portable seismic cables are specialized cables for geophysical exploration and seismic operations, mainly used for the transmission of seismic signals in seismic survey operations such as petroleum, coal, hydropower, metallurgy and engineering geophysical exploration.
- ST series portable seismic cable are specially produced for seismic exploration in various field operations, such as complex terrains, large mobility transportation, frequent releasing and collecting, severe climate environments and weak signal conditions.
- Cable take-out adopts molded type, with good contact, firm sealing and good waterproof performance.
- Seismic cable adopts special composite material, with strong wear-resistant, high tensile strength , light weight and good insulating performance.
- Cable production adopts short bar distance pairing, which will highly improve crosstalk defense.
- Custom channels, lead-in cable length, take-out interval and connector type are also available upon request.
- Compatible with various main stream seismographs,such us Geode, Strata Visor,SUMMIT, PASI GEA 24 and etc.
- Most widely Used Configurations:
*Seismic Refraction Cable : 24 - Channel Spread Cable Array with 1m Kooter Male Takeouts Interval and lead-in 10m,Single 61 Bendix (PTO6A-24-61S) end connector suitable for use with a Geometrics Geode Seismograph. Single End Connector with the other end sealed and terminated.
*Seismic Refraction Cable: 3 Sections Split Cable for 24-channel take-out cable: 24 chs / 20m KCL tko interval. /10m lead-in end cable, to connector to 61 pin connector GEODE seismograph. Three Section Split Cable
*Seismic Refraction Cable : 24 - Channel Spread Cable Array with 1m Molded Split Plate Takeouts Interval and lead-in 10m, Single 61 Bendix (PTO6A-24-61S) end connector suitable for use with a Geometrics Geode Seismograph. Single End Connector with the other end sealed and terminated.
*Seismic Imaging Cable: 24 wire wrap takeout's at 3 meter intervals. One end is dead end sealed and the other end is 10 meter leading cable terminated with a 61S connector ( Wired for Geode).
*Geometrics Geode Seismic System Cable: 24 Channel cables with Mueller Connections with 5m take out spacing.
*Geometrics Geode Seismic System Cable: 24 Channel cables with Mueller Connections with 2m take out spacing.
*Seismic Imaging Cable : 12- Channel Spread Cable Array with 5m Standard Split Plate Takeouts Interval and lead-in 5m at one end and terminated with NK2721C Female Connector at Each End.
*Geographic Imaging Cable : 12- Channel Seismic Cable with 3m Wire wrap Takeouts Interval and Lead-in 3m at each end and terminated with NK27 Female Connectors at Both Ends.
*Geophysical Survey Cable : 12- Channel of 10m of Geophone's Channel Separation, Wire Wrap Mueller Clip Take-out, Lead-in 10m at each end and terminated with 61 Pin Bendix Female Socket PT-06A-24-61S(SR) Connectors at both ends.
*Geophysical Survey Cable : 12- Channel of 10m of Geophone's Channel Separation, Wire Wrap Mueller Clip Take-out, Lead-in 10m at each end and terminated with 61 Pin Bendix Female Socket PT-06A-24-61S(SR) Connectors at both ends.
*Seismic Cable: 12 Muller takeouts with 5m spacing, double ended NK27 sockets with 10m lead cable at each end.
*Geography Surveying Cable: 6- Channel Seismic Survey Cable with KCK Screw Fit Female Takeouts, interval 1m and lead-in 1m at one end with cable end open. The other end is dead sealed.
*Seismic Cable-24C with Mueller type take-out, Channel interval 1m, lead-in cable 10m at one end equipped with Bendix style 61pin Female Connector
*Customized System Connector, Channel Numbers, Wiring, Take-out, Interval and Lead-in Cable are available upon request.

Cable Type	Conductor Structure	Cable Cores	Cable Outer Diameter(mm)	Net Weight ( kgs/km)	Working Temperature	Cable Take-out Type
ST-32	7X0.12	32	7.0	56.0	-40ºC ~ +70ºC	Split Type / Molded Type
ST-54		54	9.0	90.0	-40ºC ~ +70ºC	Split Type / Molded Type
ST-104		104	11.5	153.0	-40ºC ~ +70ºC	Split Type / Molded Type

Item	Data Sheet
Conductor DC Resistance at 20ºC(Ω/km)	≤234
Insulating resistance between conductors (MΩ/km)	≥1000
Crosstalk Attenuation 1KHz (dB)	≥100
Working Capacitance (Nf/km)	50
Tensile Strength (kgs)	≥90
Working Temperature (ºC)	-40ºC ~ + 70ºC

Item	Specifications
Channel Numbers	12 Channel / 24 Channel
Cable Outer Diameter	7.0mm /9.0mm /11.5mm optional
Connector Type	27 pin / 32 pin / 50 pin /55 pin /61 pin
Connector Lead-in Type	Connector lead-in at one end / Connectors lead-in at two ends.
Lead-in Cable Length	Most commonly used type: lead in cable 3m/ 5m /10m at one end or each end. Customized lead-in cable length available upon request.
Cable Take-out Type	Split spring take-out ( ordinary type or molded type optional )/ Mueller clip take-out / KCK take-out / Kooter take-out optional
Channel / take-out Intervals	Most commonly used type: 1m /2m / 3m/5m/10m. Customized Channel / take-out intervals available upon request.
Working Temperature	-40ºC ~ +70ºC
