Miboard Ifp75 V14. V2 Interactive Touch Flat Panel with Dp, HDMI out, 65W USB Type-C, Wi-Fi 6, 20W Subwoofer, Android 14. Airdms Management

Miboard Ifp75 V14. V2 Interactive Touch Flat Panel with Dp, HDMI out, 65W USB Type-C, Wi-Fi 6, 20W Subwoofer, Android 14. Airdms Management

US$640.00-800.00 1 Piece (MOQ)

Basic Info.

Model NO.
IFP75
Application
Education and Training System
Screen Type
Infrared
Resistive Touch Screen Type
Digital
Customized
Customized
Technology
Infrared Touch
Resolution
3840*2160
OS
Android 14 & Windows 11
Certificates
CE, FCC, RoHS
Brightness
350CD
Warranty
3 Years
Touch Points
40/50
Certificate
CE, FCC, RoHS
Color
Black/Grey
Transport Package
Kraft Paper Carton
Specification
1846× 215× 1180mm
Trademark
MiBoard
Origin
China
HS Code
8528591090
Production Capacity
10000 Units Per Year

Packaging & Delivery

Package Size
184.60cm * 21.50cm * 118.00cm
Package Gross Weight
69.000kg

Product Description

Product Description

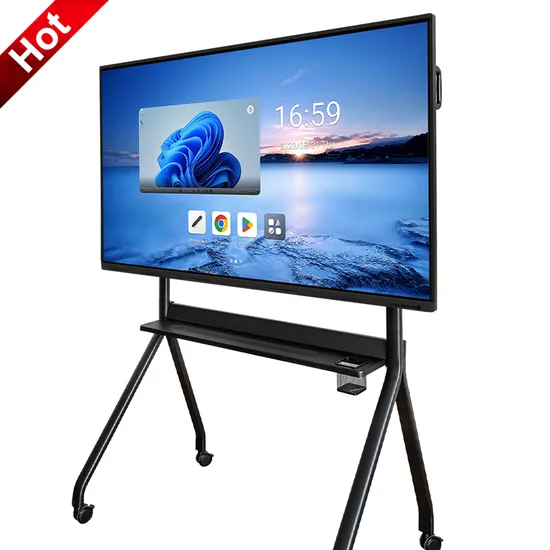

MiBoard IFP V14.V2 is an interactive touch screen, which uses infrared technology. It replaces projector and traditional interactive whiteboard. It creates smooth and natual writing experience. Dual OS, Windows and Android
Users can switch between Windows and Android OS freeely. It uses 8 cores A55 CPU, it has greatly improved the performance. User can run all kinds of app smoothly.
Integrated TranScreen Software
Transcreen defaultly supports mirroring Windows, Android to IPF up to 4 screens at the same time. It can customize up to 9 screens.
It allows students to share theirthoughts and ideas wirelessly from their portable devices (laptop or Smart Phone). Audience or students can remote control the IFP from their laptop or smart phone.
Mirror mobile phone by NFC easily
Users just need to install the Transcreen app in the mobile phone, and then close to the NFC, it will mirror mobile phone to IFP directly.
Multi-Users Management
Manage multiple users with support for up to 5 individuals, each enjoying customized options.

Integrated with DMS Remote Management APP, Manager can remote manager MiBoard IFP from anywhere. It can save a lot of time and money to do some maintain. Manager can remote manage the IFP apps, and also can remote install or uninstall app for the IFP. Manager can remote control the deskop of IFP, changing wallpaper, setting schedule for turning on or off and so on.
Intergrated with strong Whiteboard Software
Four students can write on the board at the same time without effecting with each other.
Dual thick tips of stylus With dual tips of stylus, teacher can write two colors with different thickness by the stylus. Product Parameters
Item Description IFP75
Panel Diagonal Size 75"
Backlight Type D-LED
Aspect Ratio 16:09
Resolution 3840*2160
Brightness(typ)/(min) 500
Display Size(mm) 1,652*930
Contrast Ratio (typ)/(min) 5000:1
Response Time(typ)/(min) 5ms
Depth of Color 10 bit
Viewing Angle 178°
Life time ≥100,000 hours
Touch Touch Technology High-precision Infrared Technology
Glass 4mm Anti-glare toughened glass
Touch Points 40 Points (Option: 50 points)
Touch Accuracy ≤1mm
Response time <8ms
Android CPU 8*A55
GPU Quad-core MaliG52 600MHz
RAM 4GB(8GB option)
eMMC 32GB(/64/128GB Option)
LAN Wired LAN: RJ45 IN 100M +RJ45 out 100M
Version Android 14.0
Wi-Fi Wi-Fi5 2.4G+5G+Bluetoothn5.0 (Wi-Fi 6 option)
Chipset GK6780V100
Video Input HDMI MAX 3840x2160@120Hz
HDMI Version 2.0
HDCP Version 1.1/1.3/1.4/2.2
Power Power Supply 110-240V 50/60 Hz
Power Consumption ≤270W
Ports Back Side Ports HDMI In*2, USB2.0*1, USB3.0*1, Touch Out*1, TF Card*1,
MIC In*1, RS232*1, RJ45 In*1, RJ45 Out*1, HDMI Out*1,
VGA In*1, DP*1, COAX*1, VGA Audio*1, EAROHONE*1.
Front Ports HDMl IN'1, Touch Out'1, USB 3.0'3,Type-C Full Function*1, NFC Sensor(Option)
Size Panel Size(mm) 1706*89*1014
Package Size(mm) 1846*215*1180
Weight Net Weight(KG) 54
Gross Weight(KG) 69
Speaker Audio Out Power 15W*2 8Ω (Speaker:20W, Subwoofer: 20W option)
Camera
(Optional)
4K AI face&voice tracking camera
Microphone
(Optional)
8 Built-in High Reception Microphone
Environment Working Temperature - 0ºC~40ºC, Operational humidity≤80% RH,
Storage temperature:-10ºC~60ºC, Altitude Below 5000 meters.
Accessories Remote Control*1, Power Cord*1(3m), HDMI cable(2m),
Touch Cable*1 (2m), Passive pen*1, Wall mount*1
Warranty 3 years return workshop
Special Features Built with Google Play, Enable Annotation in all Channels, Screenshot, Gesture Eraser,
Smart Writing, Dual Pens with two colors writing, Video conference support H323/H265.
Components Power Cable, HDMI Cable , Touch Cable, Controller, Wall Hanger, Passive Pen.
OPS(Optional) i5/i7, 6-13th Gen, RAM 8-32GB, SSD 256GB-1TB, Windows 11 Genius Version,
Wi-Fi 6.0 , Bluetooth 5.2 , LAN 1000MB
Optional Components Movable Stand, Webcam, Pen with two tips, OPS , Pointer, Microphone, Camera, Speaker.
Our Advantages
1.We use original grade A screen. It has not brightened dot and fleck.
2.We use original Tcom boards to make sure it has better display and better quality. The following is the third party Tcon board. It can not display as perfect as the original one and it is easy to be broken.
The following is from the third party Tcon board.
3.We can do OEM/ODM to our resellers if our customer order certain quantity. We can customize or design new carton for our customer.
4. We can customize the frame color, we can make black, grey, white, or other colors. We can customize power button shape and position. We can customize the logo and paste on the frame.
5. With physical front shortcut buttons, such as adjusting volume, main menu, setting, it will be much conevient for users.
Optional Functions
1. 20W Subwoofer for better sound quality 2. 65W USB-C full functions.
3. Support 50 points touch points for Windows.
4. NFC function for locking or unlocking screen. Teacher can use NFC card or mobile phone to lock or unlock screen freely,
so that student can not operate the IFP randomly.

Users can use NFC card to Shutdown, Boot, Lock Screen, Wakeup, Unlock and Enable touch. Workshop
Certifications
Packaging & Shipping

After Sales Service
Three years limited warranty. We always send some spare parts together with your order, and we also provide video training and online traing to our customers. We provide 7*24 hours technical support by phone, email, Whatsapp and so on. Customers will rest assure to use our product.
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
FAQ
1.Q: Can you do OEM/ODM to us?
A: Yes, we are factory.
2.Q: What is your minimum order quantity (MOQ)?
A: We accept any quantity of your order.
3.Q: What packaging options do you have?
A: We offer paper carton, wooden package, pallet package according to your shipment requirements.
4.Q: How long is the delivery time?
A: Normally our delivery time is about 7-10 days according to the quantity that you order. If you need urgently, we can try to delivery faster.
5.Q: What are your terms of payment?
A: We accept TT Advanced, Letter of credit, document of payment and so on.
6.Q: How do you guarantee quality?
A: We also send some spare parts together with your order. We always try to do strict QC testing and long time high temperature aging.
7.Q: Hong long is the warranty for your products?
A: We provide 3 years warranty.
