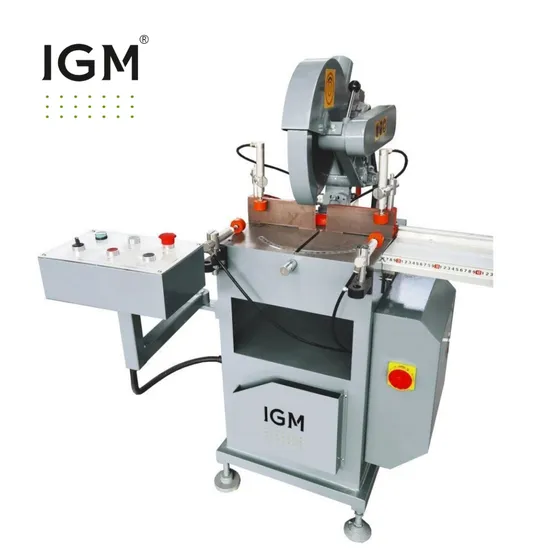

Digital Measuring Ruler UPVC Window Cutting Machine with 350mm Single Head

Product Description

Product Name:
Digital Measuring Ruler UPVC Window Cutting Machine With 350mm Single Head
Model: SJ02
Application : making PVC window and door
Function : Sawing angles
Detailed Photos
Rotating table, can cut 45 -90-45 degrees; saw blade diameter 350 mm, maximum cutting 110 mm
Horizontal and vertical clamping cylinders ensure that the UPVC profile does not move during cutting.
AirTac solenoid valve, stable quality.
Digital measuring ruler / Digital display conveyor can display the positioning length more intuitively, which is very convenient.
Product Description
Main Features
1. UPVC window cutting machine is not only can cut PVC, but also other lightweight metals.
2. Rotating worktable, the angle can be adjusted between 45 -90-45 degrees.
3. Pneumatic saw blade advance, with damping cylinder, smoother.
4. There are 4 pieces of clamping cylinders for horizontal and vertical operation.
5. Maximum cutting capacity is 110 mm.
6. Cooling spray system.
7. Equipped with air gun cleaning.
8. Optional: digital measuring ruler or CNC automatic positioning ruler to improve cutting accuracy and work efficiency.
9. The length of the conveyor table can be customized according to requirements.
Technical Parameters of UPVC window cutting machine.

Model	SJ02
Input Power	1.1 KW
Power Voltage	380V 50Hz 3Phase ( On request )
Air Consumption	30L /min
Spindle Speed	2850 r/min
Diameter of Saw Blade	350 mm
Cutting Height	110 mm
Cutting Width at 90°	150 mm
Machine Size ( Not Including Conveyors )	800*1000*1500mm
Gross Weight	200 KGS
Operation Manual	√
Operation Video	√
Color Customization	√
Coolant Spray	√
Air Gun	√

Packaging & Shipping
LCL:UPVC window cutting machine is packed in fumigation-free plywood, the pallet is thickened and raised, and the machine base is fixed with steel wire.
FCL: Generally, the outer packaging is plastic film, and the machine is fixed in a 20/40-foot container with steel wire or special packaging tape; the outer packaging can also be selected as a fumigation-free wooden box according to requirements. Extra-high-size machines require open-top cabinets.
We have many years of export and loading experience. While ensuring the safety of the machines, we rationally plan and utilize container space to save transportation costs for our customers.
