Advanced Technical Cold Feeding and Hot Feeding Rubber Extruder

Product Description

Advanced Technical Cold Feeding and Hot Feeding Rubber Extruder
Product Description
Hot feed rubber extruder machine is used for extruding different shape of rubber semi-product ,like rubber hose ,rubber tube,cable ,sealing strips,or used for supplying rubber material for calender machine line.
Extruder machine type : hot feed extruder ,pin cold feed extruder ,pin-barrel cold feed extruder ,and rubber strainer
Cold feed rubber extruder machine is used for extruding different shape of rubber semi-product ,like rubber hose ,rubber tube,cable ,sealing strips,or used for supplying rubber material for calender machine line.
Extruder machine type : hot feed extruder ,pin cold feed extruder ,pin-barrel cold feed extruder ,and rubber strainer .
Pin type cold feed rubber extruder machine is used for extruding different shape of rubber semi-product ,like rubber hose ,rubber tube,cable ,sealing strips,or used for supplying rubber material for calender machine line.Extruder machine type : hot feed extruder ,pin cold feed extruder ,pin-barrel cold feed extruder ,and rubber strainer .

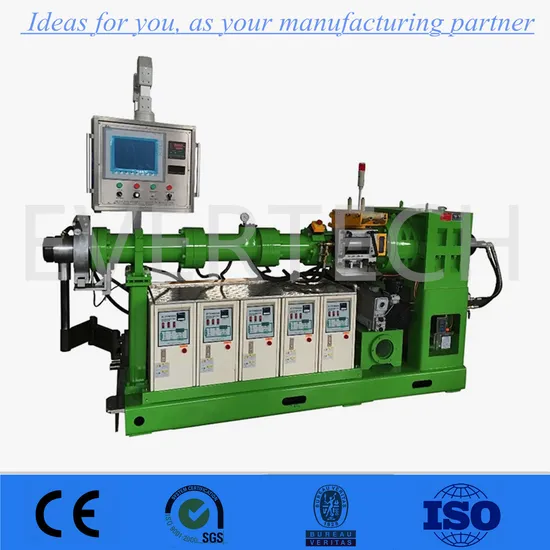

Detailed Photos
1. The Rubber Extruder Machine is used for extruding half-finished rubber products such as tire tread, rubber pipe, inner tube, cable and feeding rubber, etc.2. The machine is heat-feed and single screw extruder. The rotation speed could be changed. With the head piece changing. We can get different filtering and rubber-covering of press plate of semi-product for constant outline. So the machine has many uses.3. Our main products includes: Rubber product equipment, reclaimed rubber equipment, bias truck tyres equipment etc. We also have rubber mixing equipments such as Banburying Machine, Rubber Mixing Machine, Rubber Crusher, Refiner, Rubber Cutting Machine; Rolling equipments such as Calenders with two/three/four high mills, Linkage line, Placemat Finisher; Vulcanizing equipments such as Vulcanizing Press, Conveyer Forming Machine, Tyre Vulcanizer, Solid Tyre Vulcanizer, Flap Curing Press, Inner Tube Curing Press;4. We can design and manufacture all kinds of non-standard rubber machinery according to the requirements of the customers.

Item	Screw Diameter (mm)	Speed Ratio	Maximum Screw Speed (r/min)	Output (kg/h)	Overall Dimension (mm)	Weight (kg)
XJ-60	60	4.5:1	75	72	1500x604x1053	880
XJ-65	65	4.5:1	75	85	1594x604x1053	1000
XJ-85	85	4.8:1	65	190	2065x760x1164	1500
XJ-90	90	4.8:1	65	280	2100x760x1164	2400
XJ-115	115	4.8:1	60	420	2770x860x1344	3100
XJ-120	120	4.8:1	60	520	2800x860x1344	3600
XJ-150	150	4.6:1	55	1100	3411x900x1450	6100
XJ-200	200	4.35:1	45	2500	4549x1140x1750	7200
XJ-250	250	4.5:1	45	4200	4950x1150x1800	8200

The machine is hot-feed and single screw extruder. The rotation speed could be changed. With the headpiece changing, we can give different filtering and rubber covering of press plate of semi-product for contant outline, so the machine has many uses.
Packaging & Shipping
Equipment painting completed before delivery, and then wrapped with stretch film, avoid rubbing the paint off the surface, wooden packaging can be customized, key parts, such as electronic control box, will be wrapped by shockproof packaging materials, and then packed in wooden cases.
Company Profile
Qingdao Evertech Industry Co., Ltd. is a professional pressure vessel designer, manufacturer and exporter. We have manufacturing licenses for ASME U, ASME U2,NB,PED, D1, D2 and A2 pressure vessels. Composed of more than 20 senior experts and professional engineers, the research and development team, with more than 20 years of professional experience, is committed to product design, development and program optimization, and can provide high-quality solutions according to users' requirements in different operating conditions. Company has cover an area of 70000 manufacturing base and 15000 modern manufacturing plants, can provide customers both at home and abroad with composite autoclave, high pressure autoclave, high pressure reactor, AAC autoclave, deaerator, pouring tank pressure vessel products such as more than 800 sets, pressure vessel head more than 20000 sets high quality products and services, won widespread praise.
Our Service
During the whole business process, we offer Consultative Selling service.

1)Customer inquiry process:
Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.
2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.
3)Order process:
We offer below business term:

Accepted Delivery Terms	FOB, CFR, CIF, EXW, DDP
Accepted Payment Currency	USD, EUR, HKD, CNY
Accepted Payment Type	T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow
Nearest Port	Shanghai, Qingdao, Tianjing or rquired

4)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
5)Installation and after sale service:
Defines installing those products in the field and providing after-sales support.
FAQ
Q: Are your company a trading one or a factory ? A: We have our own factory and we have also register a trading company for more options (in order to make the business more simple) for more than 18 years focusing on test instruments field and 15 years exporting experience. As one of the toppest supplier in Qingdao, OEM/ODM is warmly welcome from all of you as long as you confirm us with your requirement.Q: How to choose the most suitable products? A: Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.Q: What's the delivery term? A: At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 10-15 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.Q: Do you accept customization service? A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.Q: Can we visit your factory before order? A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.Q: How about your warranty? A: Generally, our warranty is two years. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.Q: What is the order process? A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.Q: How to install and use the product? A:About the machine you grt from us, we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.1. 24 months warranty time2. Customization accepted3. OEM accepted4. Detailed installation drawings and video will be provided. If needed, we also have special experienced installing staff can go abroad to help customers install and check spray booth.5. Prompt after-sale service. We have established perfect after-sale service system. If needed, our staff will arrive in 72 hours to repair products.If you have interest in any of our products, please kindly contact us. If you have any questions or doubts, please also feel free to contact us.
