Pet Plastic Automatic Blowing Moulding Bottle Making Blower Jar Blow Molding Machine
| US$20,000.00-45,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
Lk-4000L
Making Method of Parison
Stretch Blow
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008, QS, GMP
Model
Lk-4000L
Control System
Computerized
Bottler Material
Pet
Bottle Volume
100ml to 2000ml
Machine Capacity
4000 Bottles Per Hour
Machine Installation Power
55kw
Suitable for
Water Bottle, Beverage Bottle, Oil Bottle...Ect
Workers Requests
1 Worker
Certificate
SGS, ISO, Ce,..
Weight
2400kgs
Transport Package
Wooden Export Package
Specification
ISO, SGS, CE
Trademark
LINKS
Origin
Zhangjiagang City, China
HS Code
84774010
Production Capacity
50/Month
Product Description

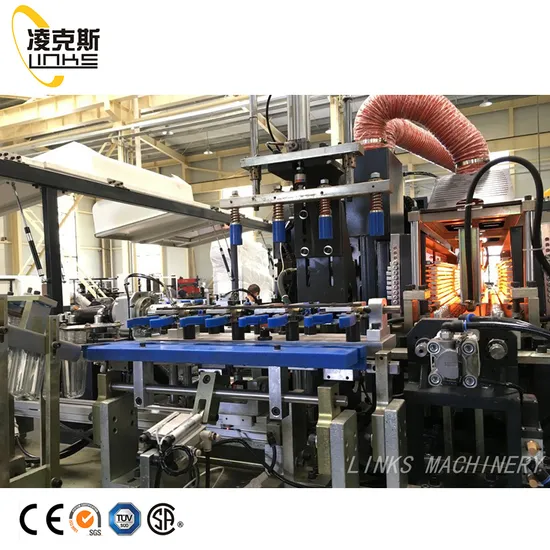

Automatic 4-Cavity PET Bottle Blow Moulding Machine*Introduction and Advantage
1). This PET Bottle Blowing Machine adopts the new type double bend arm and four pull rod-clamping structure (won the patent). Cross direction; middle mould board is move parallel; the distance between two mold bases is adjusted by the chain wheel. Thus, the clamping force is very strong.
2). The plastic bottle making machine frame is produced by the whole complete casting bottom, so that the machine is firm and running stable.
3). Full automatic plastic bottle blowing machine the straight slide way, reduce the friction and lengthen the life of the machine.
4). Double start working button, which is designed for avoiding the injury.
5). Power saving design that can increase your profits.
6). The single direction of pre-form placing and bottle picking, which increase the output.
7). Segregate type air controlling system, which is designed for avoiding waste pollution.
8). The stretching air cylinder is adjusted parallel from front to back, from left to right freely by regulator.
*Parameters
Model | LK-2000 | LK-4000L | LK-6000 | |
Theoretical Output(b/h) | 2200 | 4000 | 6000 | |
Clamping System | Cavities | 2 | 4 | 6 |
Clamping Unit(Kg) | 20000 | 48000 | 56000 | |
Mold Stroke(mm) | 120 | 130 | 90 | |
Stretch Stroke(mm) | 320 | 340 | 250 | |
Bottom Stroke(mm) | 30 | 30 | 30 | |
Cavity Pitch(mm) | 120 | 120 | 120 | |
Heating Pitch(mm) | 55 | 55 | 55 | |
Number of Holders(pcs) | 64 | 114 | 114 | |
Container | Max. Container Volume(L) | 2 | 2 | 0.6 |
| () Max. Neck Diameter(mm) | 32/38 | 38 | 38 | |
Max. Preform Height(mm) | 140 | 140 | 100 | |
Max. Container Diameter(mm) | 105 | 110 | 65 | |
Max. Container Height(mm) | 320 | 340 | 250 | |
Electrical System | Heating Oven | 2×9 | 4×4 | 8×8 |
| × Box × Channel | 2×9 | 4×12 | 8×7 | |
Number of Lamp(pcs) | 18 | 48 | 56 | |
Heating Power(kw) | 21.6 | 57.6 | 67.5 | |
Installed Power(kw) | 25.5 | 65 | 75 | |
Voltage(V) | 220V/380V/3phases | |||
Air System | Blowing Pressure(Mpa) | 3.5 | 3.5 | 3.5 |
High Pressure Air Consuming(L/min) | 2000 | 4200 | 5600 | |
Chiller System | Temperature(c) | 10-15 | ||
Pressure(Mpa) | 0.3-0.5 | 0.3-0.5 | 0.4 | |
Flow Rate(L/min) | 40 | 80 | 80 | |
Heating Power(HP) | 4 | 5 | 5 | |
Machine | (L×W×H) Machine Dimension(mm) | 2600×1800×1800 | 3800×2000×2000 | 4800×2200×1800 |
Weight(kg) | 3500 | 6000 | 5500 | |
