High Precision Zmde Industrial CNC Drilling Machine for H Beam Steel

Product Description

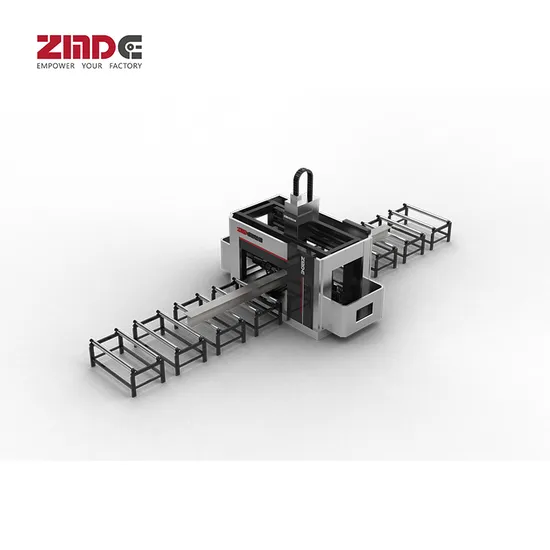

ZMDE Industrial 3D CNC Drilling for H Beam Steel

Technical Parameters

Item.	Model.	Machine Technical.
CNC 3D drill	ZMD-GSWZ10070/3A	1.H-beam: 150x80~1000x700mm 2.U-beam: 150x80~1000x400mm 3.Box beam: 150x80~1000x400mm 4.Thickness: ≤80mm 5.Length: 12m 6. Short material limit: automatic processing ≥ 3000mm 7.Manual processing: 690~3000mm 8.Power source: AC 380V 50HZ 3-phase

This advanced device excels at drilling precise holes on three sides of H-beam steel simultaneously, thanks to its 7 CNC axes. With CAD/CAM directly generating processing programs, it accommodates a maximum H-beam section size of 1000×500mm and a drilling diameter of up to 33.5mm. The control system integrates a computer numerical control system, AC servo system, photoelectric encoder, and PLC. Simply input the workpiece size, and our system will automatically generate the machining program, which can be stored, recalled, displayed, and processed by part number at any time.

More Machine Configuration (Due to different product models, the actual product may differ slightly from the picture)
Machine Model		ZMD-SWZ-74-A
H Beam Processing range(mm)		150×100-700×400
Automatic feeding length(mm)		1500-12000
Max. Web plate thickness(mm)		≤40
Max. weight of workpiece(kg)		4000
Number of drilling spindles		3×3=9
Spindle speed range(r/min)		180-720
Axial working speed(mm/min)		20-200
pper unit spindle feed travel distance(mm)		220
Max. drilling diameter(mm)		Φ33.5
Total power(kw)		≈30
Equipment Dimension L×W×H(mm)		28000×4220×3220

Company Profile
Founded in 2013, ZMDE Co., Ltd. stands as a high-tech enterprise specializing in assembly-building intelligent equipment. Recognized as one of the national specialization, speciality, and new 'small giants' enterprises, our core industry encompasses the steel structure assembly building intelligent industrial mother machine and the IoT industry. Our dedication to research, development, manufacturing, sales, and service sets us apart in the competitive landscape.intelligent control system two plates.
Our headquarters is strategically located in Lingang New Area, Pudong New District, Shanghai. This 32,000-square-meter facility houses the Research Institute of Artificial Intelligence for Assembled Buildings, focusing on high-end core technologies in AI, Intelligent Buildings, and Industrial IoT. It primarily handles the company's management and R&D functions.
Our Shandong base, situated in Weicheng District, Weifang City, is dedicated to researching, developing, and producing intelligent industrial mother machines for steel beams and walls of assembled buildings.mother machine for walls of assembled buildings.

FAQ
1. Q: What is the minimum order quantity for your products?
A: Our minimum order quantity is just 1 PCS, offering unparalleled flexibility for all our esteemed clients. 2. Q: Could you specify the payment terms you accept? A: For your utmost convenience, we accept both L/C (Letter of Credit) and T/T (Telegraphic Transfer). 3. Q: What is the typical delivery time for your orders? A: Our standard delivery time is approximately 30 days, ensuring your orders are fulfilled promptly and efficiently. 4. Q: What is the duration of your warranty period? A: Our warranty period lasts for 1 year. Moreover, original manufacturers' equipment parts come with lifelong maintenance benefits. 5. Q: Do you offer ODM/OEM services? A: Absolutely, we proudly offer both ODM and OEM services to cater to your specific needs and requirements.
