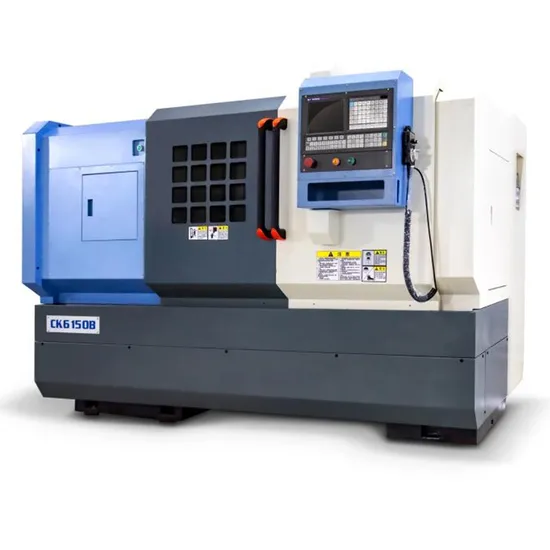

Ck-6150 High Precision Manufacturer ISO Certified CNC Lathe Machine

Product Description

Product Parameters

Item	Main Parameter
Maximum turning diameter on the bed	Φ500mm
Maximum turning diameter on the carriage	Φ300mm
Maximum workpiece length	1000mm
Bed rail width	390mm
Skateboard maximum stroke (X direction)	500mm
Z-direction pallet maximum stroke	850mm
Spindle through hole diameter	Φ82mm
Spindle speed range	0~1600rpm
Spindle front end specification	D8
main motor power	7.5kW+11KW Frequency converter
Tailstock sleeve taper	MT5
Tailstock sleeve diameter	75mm
Tailstock sleeve stroke	165mm
positioning accuracy	0.01mm
Repeatability	±0.005mm
Processing ellipticity	0.004mm
Processing roughness	Ra1.6
Electric knife holder	Station (optional 6 stations)
Cutter size	25*25mm
Input power	50Hz 380V
Net weight of machine tool	2600kg

Company Profile
1.professional r&d team with 20 years of experience provide the over all solution for machine and processing.
2.Exporting to more than 50 countries worldwide
3.We own ISO certificate and SGS certification to prove our quality.
Henan Front Intelligent Equipment Co., LTD .
Henan FRT Group (Henan Front Intelligent Equipment Co.,Ltd.),its subsidiaries Luoyang Yujie Industry and Trade Co.,Ltd.,and Luoyang E-find Precision Bearing Manufacturing Co.,Ltd.,benefit from Luoyang's heavy-duty manufacturing advantages.Henan FRT Group has eighteen years experience of exploration and active innovation,has developed into a leading science and technology enterprise integrating scientific research and development, production and manufacturing, sales, technical services, and import and export trade.
FRT Group has been in the machinery industry for eighteen years and is committed to the three major fields of mechanical equipment, mechanical parts and precision bearings. The group has a group of experienced mechanical design teams, production and processing teams, assembly teams, and sales teams, and has excellent production equipments and processing technology, excellent testing instruments, complete product quality assurance system and after-sales service, consistently put product quality and users value first, adhere to integrity and long-termism, the group's core values allow customers achieving success is rooted in the hearts of company personnel.
Our Customers


FAQ
Q:What is your minimum order quantity and warranty?
A:MOQ is one set, and warranty is one year.
Q:How can I choose the most suitable machines ?
A:Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
Q:What is the payment Terms ?
A:T/T ,50% initial payment when order ,50% balance payment before shipment ; Irrevocable LC at sight .
4.Can your company send the technical personnel to our company and direct our workers for free?
A:When the machine arrive the buyer's installation site, we timely send mechanical and electrical engineers to install according to the buyer's schedule, the buyer undertakes board and lodging of personnel abroad in the process of installation, and also USD200.00 per day per person. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
