Mining Machinery Gp Single Cylinder Hydraulic Cone Crusher Stone Cone Crusher Plant

Product Description

Mining Machinery GP Single Cylinder Hydraulic Cone Crusher Stone Cone Crusher PlantProduct DescriptionFeed Size:80-350mm
Output Size:5-60mmCapacity:40-1000tphComplete specificationsThere is always a suitable solution for youContact UsSend Message or

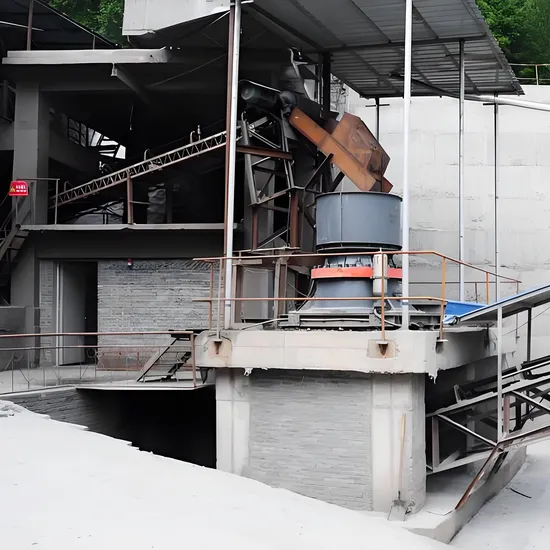

Chat Now for Latest price!!!Detailed PhotosGP Single Cylinder Hydraulic Cone Crusher Advantages and Features
1.Three kinds of hydraulic protecting parts(protecting oilcan,locking oilcan and hydraulic driving oilcan) not only protectthe machinery,but also can deal with troubles withoutdisassembly the parts,
2.Easy operation, reliable performance and can adjust thefinished products sizes automatically,
3.The crushing chamber is specially designed according toparticles-layer- pressure principle.The special chamber andthe suitable rotary speed improve crushing ratio and capacity,so does the cubic product percentage.
GP Single Cylinder Hydraulic Cone Crusher Working Principle
When a GP Single Cylinder Hydraulic Cone Crusher works, driven by the motor, the transmission shaft rotates under the action of belt pulley and triangular belt. Next, the transmission shaft drives the eccentric sleeve to make it rotate around the axis. Meanwhile, the eccentric sleeve forces the movable cone to do pendular movement. This movement makes the movable cone and fixed cone sometimes close to, sometimes far away from the rolling wall. Materials are continuously shocked, squeezed and crushed in the crushing cavity between the crushing wall and the rolling wall. Finally, materials are discharged out of the machine when their fineness reaches the discharging standard.
Product Parameters

Model		GDP 300			GDP 500			GDP 800
Cone Bottom Diameter (mm)		1200			1650			2200
Feed Opening Size (mm)		220	150	80	300	230	100	350	290	130
Discharge Opening Adjustment Range (mm)		20-50	9-25	5-13	25-60	13-30	7-14	30-60	15-35	8-15
Maximum Feed Size at Cone Bottom (mm)		165	130	70	240	195	85	300	230	110
Capacity (t/h)		90-260	45-120	40-100	210-480	128-280	100-200	600-1000	350-680	260-400
Main Motor	Model	Y315M2-6			Y315M2-6			Y400-6
	Power (kw)	220			315			400
	Voltage (v)	380			380			380
Rotation Speed (r/min)		300			250			160
Lubrication Station Capacity (L/min)		63			125			250
Machine Dimensions	Length (m)	3.95			3.37			4.7
	Width (m)	1.9			2.6			3.6
	Height (m)	3.14	3.1	3.06	4.1	4.04	3.99	5.4	5.4	5.4
Machine Weight (t)		19	18.6	18.6	37.1	37	36.9	77.9	77.1	76.8
Remarks		1. Machine weight does not include the motor. 2. The motor and main machine are not connected by belt transmission.

Market distribution
Packaging & Shipping
Certifications
FAQ1. Are you manufacture or trading company?
We are factory, established in 2010.
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. What is your payment method?
30% deposit in T/T advance, 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at lowest cost.
5. If I need the complete crushing plant can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
6: How to get the free solution and quotation?
Please send inquiry to us ,leave your whatsapp and email, our sales manager will contact you within 1 hours.
Our servises
Pre-sales Service: The wide product range enables us to provide our customers with stand-alone machines orcomplete processing plants.Based on our customers' request and budget, our experts makeefficient , reliable solutions.Following customers' order we produce strictly, what's more, beforeplacing the order every customer has the chance to visit DBM working machines or complete plantin the site. To ease the trip for every visitor to China, in particular the first-time visitor, we provide FOR FREEall relevant visitor-friendly services including invitation letter preparation, hotel reservation, airportpick-up, incity transportation, and sightseeing guide, etc.
After Sales ServiceAfter-sales Service
*Send the engineers to guide the installation.
*Install and adjust the equipment for customers.
*Train the operator for customers.
*We also provide the technical service for our customers after the installation
Company ProfileCompany Introduction
advanced Manufacturer of Crushing &Grinding Machines Shanghai dingbo has always been committed to manufacturing mining crushing equipment, sand-making equipment and industrial grinding equipment.
History --- 20 yearsAnnual Output Value --- 100 million1.Boasts its 30000 square meters production base2.20 years industry experience3.Owns complete modernized metal cutting equipment, equipped with advanced Solidworks 3D mechanical design and Computerized Simulation Test System4.Professional technology and after-sales service team5.Achieved ISO9001:2000 Quality Management Certificate and EU CE Certificate.6.Have been exported to more than 130 countries7.Products cover more than 20 models of 3 major series: mill series, crushing series, and sand making series.Contact UsSend Message or Chat Now for Latest price!!! Tips: please tell me your material and capacity to become our quality clients which will have 2%-10% discount please tell me the following questions, so we can send you accurate quotation with additional discount:
♥ What's the raw materials you want to process(such as granite, basalt, river stone)?
♥ What is capacity you want tons per hour? such as100TPH, 150TPH, 200TPH.
♥ Your email address or phone number
♥ Other requirements. (We are the leading manufacturer of mining machinery: jaw crusher, impact crusher, cone crusher, sand making machine, mobile crushing plant, vibrating feeder, vibrating screen, belt conveyor, raymond mill)
