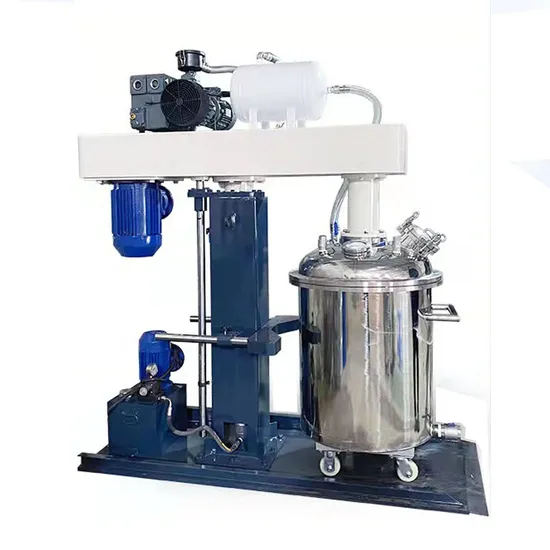

Hydraulic Mixer with Cowles Disc for Paint Glue Dispersing

Product Description

Hydraulic mixer with Cowles disc high speed Dissolvers with Cowles Disc for painting coating glue
High speed mixer Mixers Hydraulic mixer
Single Shaft High-Speed Dissolvers
Double shaft high speed mixer
Three-shaft high speed mixer
Hydraulic mixer with Cowles disc high speed Dissolvers with Cowles Disc
High speed mixer Mixers Hydraulic mixer
Reliability, economy, versatility, three important reasons why Cowles dissolvers are popular choices for fast, repeatable processing of medium-size production batches. Hydraulic mixer include a hydraulic lift that rotates a full 360 degrees for effortless tank changes, and a high speed mixer. the cowles mixer usually comes with 1450rpm or 3000rpm. Sometimes users will also want variable speed controller for the hydraulic mixer. Multi-shaft hydraulic mixer is also available in our factory.
Hydraulic mixer can be used to mixing any kind of liquid, cosmetic product such as paint, honey and sauce, even at viscosities exceeding 1,000,000 centipoise (cps).
Hydraulic mixer with Cowles disc high speed Dissolvers with Cowles Disc
High speed mixer Mixers Hydraulic mixer
Hydraulic mixer can be equipped together with a buffer tank or a storage tank. The tank can be stainless steel under request. A high-speed mixer impeller swirls ingredients throughout the tank. When using two shaft type hydraulic mixer, the second, low-speed anchor blade wipes the vessel walls, pushing product continuously back into the high-shear zones for thorough mixing.
Hydraulic mixer with Cowles disc high speed Dissolvers with Cowles Disc
High speed mixer Mixers Hydraulic mixer
Hydraulic mixer which have 3 shafts
The third mixer eliminates dead spots or hot spots in heat or shear-sensitive products. Use all three blades simultaneously, or turn off the high-speed impeller and use with low-speed blade only for proper mixing conditions. Third shaft comes in standard and custom styles.
Hydraulic lift high speed mixer with cowles disc / High-Speed Dissolvers
Hydraulic mixer with Cowles disc high speed Dissolvers with Cowles Disc
High speed mixer Mixers Hydraulic mixer Greater product uniformity, finer batch circulation, minimal heat buildup. Mixes/disperses high-viscosity products 50,000 to 4,000,000 centipoise. 2hp to 350 hp motors available. Wide variety of tank sizes and types available: vacuum / non-vacuum, flat/dish bottoms, carbon/stainless steel, jacketed / unjacketed. Lab to pilot to production machines. Designed for easy operate. Slow anchor blade wipes vessel walls, pushes product to high-shear impellers. High-speed blade(s) disperses products. Cowles discs with 100 to 400 mm diameter Shaft move distance from 1000mm to 1500mm customized Optional third shaft handles high-viscosity and heat or shear-sensitive product. Wide range of distinct blade designs. Vacuum, pressure, heated or cooled tanks. Many mounting and discharge options. Processes latex paints, inks, sealants, coatings, caulks, cosmetics, foods, putties, dyestuffs, resins, plastics, ceramics, grease, wood fillers, epoxies, mastics, clays, adhesives and polymers. Custom-designed units for your application. Ram discharge presses available for all machines. Explosion-proof models available.
Hydraulic lift high speed mixer with cowles disc / High-Speed Dissolvers Hydraulic mixer with Cowles disc high speed Dissolvers with Cowles Disc High speed mixer Mixers Hydraulic mixer
