Crusher and Sand Making Machine Mobile Jaw Crusher Quartz Jaw Crusher

Product Description

Product Description
Heavy Duty Crusher for Efficient Stone Crushing and Mining Applications
Production Description:
Unleash the peak of stone crushing innovation with our advanced jaw crusher. Engineered to deliver unmatched production capacity, it boasts impressive crushing ratios and superior efficiency. Perfectly tailored for primary crushing duties, it effortlessly tackles both hard and medium-hard stones, processing an array of ores with compressive strengths reaching up to an astonishing 320MPa. Achieve medium particle sizes in one seamless operation. Ideal for seamless integration with equipment such as cone crushers, impact crushers, and state-of-the-art sand making machines, it forms a comprehensive sand and gravel production line, guaranteeing top-notch performance every time.
Our jaw crusher lineup is essential for limestone stone crushing, featuring distinguished PE models like PE-400×600, PE-600×900, PE-750×1060, and the robust PE-900x1200. Each model is meticulously engineered to meet specific crushing needs, delivering precision and reliability in every task.Mining Equipment Application Process:
The journey begins with stone transportation by truck to
our formidable jaw crusher (Impact crusher) through a reliable feeder system, guaranteeing steady and efficient material input.
Following crushing, materials are subjected to fine screening via a high-performance vibrating screen,
subsequently, sand dewatering is expertly carried out using cutting-edge spiral or roller sand washing machines, ensuring premium material quality.
Other Products:
Product Parameters

Model	Size of feed opening (mm*mm)	Speed (r/m)	Max feed size (mm)	Motor power (kw)	Capacity(t/h) Closed side setting (mm)
					100	125	150	200	225	250	300
PEW-4230	1060*750	230	630	90-110	180	210	237	294	350
PEW-4836	1200*900	200	760	110-160	210	250	280	320	402
PEW-4840	1200*1000	200	850	132-160		265	302	370	480
PEW-6048	1500*1200	190	1000	185-250			415	520	580	660	750

Model	Feeding opening(mm)	Feeding size(mm)	Discharging size(mm)	Capacity(t/h)	Rotation speed of eccentric shaft (r/min)	Power(kw)	Weight(t)	Dimensions(mm)
PE-150x250	150x250	125	10-40	1-3	350	5.5	0.6	720x660x850
PE-250x400	250X400	210	20-60	5-20	300	15	2.8	1450x1280x1350
pe-400x600	400x600	340	40-100	16-60	275	30	7	1730x1730x1630
PE-500x750	500x750	425	50-100	40-110	275	55	12	1980x2080x1870
PE-600x900	600x900	500	65-160	60-200	250	75	20	2290x2290x2400
PE-750x1060	750x1060	630	80-140	115-330	250	110	29	2660x2430x2800
PE-900x1060	900x1060	685	230-290	160-400	250	110	33	2870x2420x2940
PE-900x1200	900x1200	750	95-165	220-450	200	110	52	3380x2876x3330
PE-1000x1200	1000x1200	850	195-265	315-500	200	110	55	3480x2876x3330
PE-1200x1500	1200x1500	1100	150-300	400-800	180	160	100.9	4200x3300x3500
PEX-150x750	150x750	120	18-48	8-25	320	15	3.8	1200x1530x1060
PEX-250x750	250x750	210	25-60	13-35	330	30	5.5	1380x1750x1540
PEX-250x1000	250x1000	210	25-60	16-52	330	37	7	1900x1400x1400
PEX-250x1200	250x1200	210	25-60	20-61	330	45	8.5	2140x1660x1500
PEX-300x1300	300x1300	250	20-90	16-105	300	75	11	2400x1950x1700

Jaw Crusher Application:
1. Meet the innovative jaw crusher, a versatile powerhouse meticulously crafted to master the medium and fine crushing of the most resilient ores and rocks. This crucial instrument caters to the metallurgy, mining, chemical, cement, construction, refractory materials, ceramics, and a plethora of other essential industries with unmatched precision and steadfast reliability.
2. Engineered for superior performance, this jaw crusher excels in crushing both resilient and pliable ores with compressive strengths reaching up to 300MPa. Whether tackling pebbles, granite, quartz, or construction debris, this machine seamlessly processes materials such as calcite, concrete, limestone, coal gangue, ferrous silicon, basalt, sandstone, rock salt lumps, and iron ore, demonstrating its comprehensive adaptability.
3. Positioned as the primary crushing beacon, the jaw crusher serves as the backbone of the aggregate and mineral processing sectors. Extending its superiority to fields like construction material recycling, metallurgy, the chemical industry, electric power generation, and water conservancy, it offers unparalleled utility and versatility across a multitude of applications.
Jaw Crusher Operating Principle
Empowered by potent motor power, the jaw crusher operates with meticulous precision. The motor wheels, intricately connected through a triangle belt and slot wheel, propel the eccentric shaft to orchestrate a coordinated and precise motion in the moving jaw plate. This synchronized movement effectively crushes materials within the carefully formed cavity by the fixed and moving jaw plates, alongside side liners, ensuring efficient discharge of processed material through the discharging opening.

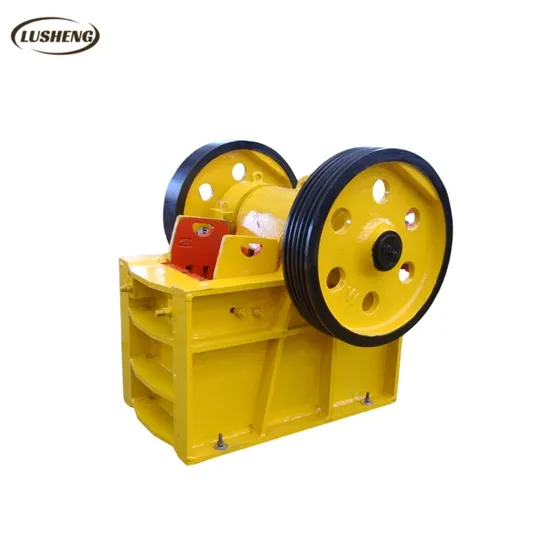

Feature of PE 250*400 Jaw Crusher
1. Featuring an exceptionally high crushing ratio, this jaw crusher blends hassle-free maintenance with unwavering reliability, establishing itself as the go-to solution for all your crushing demands.
2. It assures a consistent and uniform final grain size, thereby maximizing the quality of the output material and significantly enhancing the overall value of the end product.
3. Its simplistic structure translates to minimal operating costs, substantially boosting operational efficiency and curtailing expenditures.
4. Delivering a reliable working condition, this jaw crusher guarantees steadfast performance, offering peace of mind and unwavering operational stability.
Certifications
Company Profile
Shandong Huimin Lusheng Metal Products Co., Ltd. is a trailblazer in the creation of cutting-edge screening equipment, crushers, and a comprehensive suite of auxiliary machinery. As a frontrunner in the industry, backed by an expert team, we shine in both research and development as well as production excellence. Our tailor-made designs are crafted to address all your mining machinery demands, perfectly customized to your exact requirements. Our extensive product range features Jaw Crushers, Cone Crushers, Impact Crushers, Vertical Impact Crushers, Hammer Crushers, Vibrating Feeders, Vibrating Screens, Sand Washers, Belt Conveyors, along with advanced Grinding Machinery like Raymond Mills, High-pressure Suspension Mills, Ultrafine Mills, Roller Mills, and Ball Mills. These top-tier machines are widely applied across diverse sectors including mining, construction materials, chemicals, metallurgy, transportation, and hydraulic engineering, ensuring high performance and reliability.
In our steadfast dedication to modernization and boosting global market competitiveness, we consistently incorporate elite management, esteemed scientific researchers, and proficient graduates into our team. By utilizing the most advanced technology from leading global innovators such as the United States, Germany, Japan, and beyond, we propel self-driven innovation and reach pioneering breakthroughs that redefine industry standards.
Our company stands out by offering not only superior quality products at the most competitive prices but also providing expert recommendations for equipment selection and delivering optimal solutions precisely tailored to your specific needs. Rely on us to enhance your operational performance with our exceptional offerings.
With our strong R&D and production strengths, stringent quality assurance protocols, and impeccable reputation, we are fully committed to satisfying all our customers' demands. Feel free to reach out for any inquiries. We warmly welcome friends from various sectors to visit, provide guidance, and engage in dynamic business dialogues. Join us to explore a realm of opportunities.Packaging & Shipping
Our Advantages
1. Experience unprecedented efficiency combined with minimal energy consumption, ensuring standout performance that truly excels;
2. Discover a masterpiece of engineering with a simple yet robust design, promising effortless maintenance and exceptional durability for long-lasting use;
3. Revel in the benefits of a fully enclosed design that effectively eliminates dust pollution, providing a clean and safe environment for your workspace;
4. Rely on the steadfast reliability of a stable working station, paired with seamless operations that guarantee smooth, uninterrupted productivity at all times;
5. Significantly enhance productivity with a high screen utilization rate, featuring a generous unit area that reduces blockages and allows for quick and easy screen replacements;
6. Achieve unparalleled precision with screening accuracy reaching an impressive 96% or higher, coupled with a substantial processing capacity, making it ideal for handling the most demanding tasks effortlessly.
After Sales Service
1. Pre-Sale Services:
(1) Leverage our expert guidance to ensure the selection of the perfect equipment model, custom-tailored to your specific requirements and operational goals;
(2) Delight in bespoke design and manufacturing services that guarantee each product meets your unique specifications with unparalleled excellence;
(3) Benefit from comprehensive and meticulous training for your technical team, ensuring they achieve operational excellence and peak proficiency.
2. Services During the Sale:
(1) Enjoy a thorough pre-delivery inspection process, assuring the highest standards of product quality and reliability are met;
(2) Collaborate with us to craft innovative and successful problem-solving strategies, precisely aligned with your specific demands.
3. After-Sale Services:
(1) Acquire expert support in crafting your initial construction scheme, providing a solid foundation for success and growth;
(2) Experience professional installation and precise debugging of your equipment, ensuring it operates at its highest potential;
(3) Benefit from comprehensive on-site training for your first-line operators, facilitating a seamless transition into full operational capacity.
FAQ
Q1.Are you a manufacturing or trading company?
A1.We are a manufacturer/ factory, established in 2010.
Q2. How long is the warranty? Does your company supply the spare parts?
A2.One year(Calculated from the equipment arrives the customer's side.). Spare parts for you at the lowest cost.
Q3.What about Warranty? What will we do if the machine is broken down?
A3.The warranty period for all of structural and mechanical equipment is one year. The warranty period for all electric motors is half one year. Wear parts are not covered by warranty unless the component part is found to be flawed.
Q4.What is your payment method?
A4.30% deposit in T/T advance, 70% balance before shipment.
Q5. If I need the complete crushing plant can you help us to build it?
A5.We can help you set up a complete production line and provide related professional advice. We had already built many mining projects in China & Overseas.
Q6.What's the after sale service of your company?
A6.We will provide foundation drawing and video to the clients for installation. Besides, we can provide guidance service for installation and operation of workers, etc.
Q7. Can your company provide wearing parts?
A7.We can deliver you the spare parts within 10 working days after your order. If your equipment are not manufactured by our company, please provide us the wearing parts drawing or number.
Q8.What should we need to do for if we want to get a best quotation?
A8.If you want us recommend a suitable type for you; please let us know the below informations:
1).What products does the equipment screen: _____
2).Input/Output size: _____
3). Moisture:_____%
4). The capacity (tons per hour) _____
5). Voltage:______V,Frequency:______HZ, 3 phase
6). Material type:Q345R carbon steel?
Q9.What services are available?A9.Professional engineer design the production line for you. Pre-check and accept products before delivery.Professional technical guidance for installation
