3m Solvay Daikin Peroxide Grade FKM Terpolymer Fluoroelastomer Rubber Precompound Compound

Product Description

Company Profile
Sichuan Dowhon founded in 2002, headquartered in Chengdu National Industrial Park- Meishan Jinxiang Industrial Park.
The largest FKM manufacturer in China, with the actual output is 6000mt in 2023 which is the total sum of No.2 - No.5.2 CNAS approved labs;1 10,000 clarification workshop for smart-wearable devices;1 100,000 clarification workshop for FKM precompounds and compounds.13 producing lines for FKM precompounds and compounds.Over 85% market share for Chinese smart-wearable devices. Product Description

FD-601E is a wide molecular weight distribution fluoroelastomer precompound which include copolymer of hexa-fluoropropylene and vinylidene-fluoride, curatives. It is designed for the compression molding product such as O-ring, V-ring and gasket.
Basic characteristics F Content 66% Specific Gravity 1.81 Physical form Slab Color Off-white Solubility Ketones and Esters Mooney Viscosity ML 1+10@ 121ºC 61
Features
Excellent low temperature resistanceExcellent chemical resistance	lGood mold flow lLow compression set
Recommended Processing Procedures FD-601E can be compounded with internal mixers or two-roll mills with standard fillers and other ingredients that are used in typical fluoroelastomer formulations. All the dry ingredients should be blended before adding to the rubbery solid. During compounding, full cooling should be accompanied. After mixing, the compound should be cooled as quickly as possible. Packing information FD-601E is packed with PE film in carton. The weight is 20kg net per carton Safety and handling * Store in well ventilated place * Smoking is forbidden strictly in working areas * Avoid eye contact * Wash thoroughly any contacted skin and clothing after handling. * Further safety and handing guide, can follow the product's Material Safety Data Sheet or consult Dowhon's people.

Product Parameters
Typical properties

Compound	phr
FD-601E	100
N990	30
MgO-150	3
Ca(OH)2	6
Carnauba Wax	1

Rheological properties
GOTECH Moving Die Pheometer (GT-M3000A) 100 cpm 0.5 Arc 177ºC@ 6min

		Test Method
ML, lb.in	2.21	ASTM D6601
MH, lb.in	21.36	ASTM D6601
Ts2, min	1:08	ASTM D6601
T10, min	1:07	ASTM D6601
T90, min	2:16	ASTM D6601

Physical Properties
Press Cure 180ºC@5min,
Post Cure 230ºC@24hour

		Test Method
Tensile Strength, Mpa	15.9	ASTM D412
Elongation at Break, %	210	ASTM D412
Hardness, Shore A	75	ASTM D412

Compression set %

200ºC@70h

18

ASTM D395, method B

Low Temperature Resistance

Tr10, ºC

-17

ASTM 1329

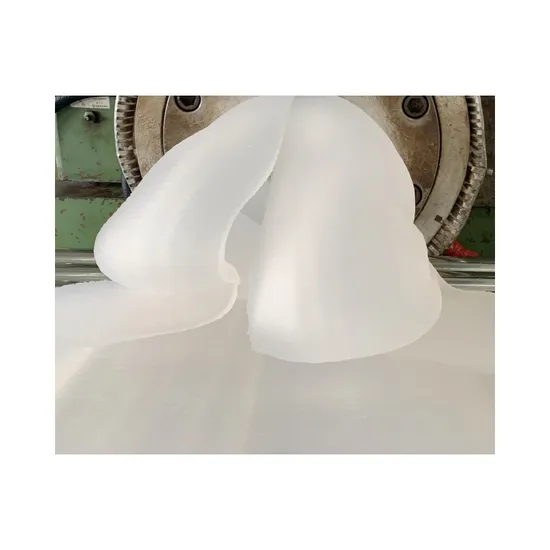

Detailed Photos

Packaging & Shipping
20kgs/25kgs per carton by courier, like FedEx, DHL etc; 500kgs/625kgs/700kgs per pallet for shipping.
Installation Instructions
Certifications
ISO9001, ISO14001, IATF16949
Currently has 65 patents, 15 invention patents are under application, participated in the formulation of 4 National Standards.
FAQ
1, What's your MOQ?
BY air MOQ is 20-25KG, by sea MOQ is 100KG.
2, What's your delivery time?
For stock goods, we can arrange delivery within 3 working days, otherwise delivery time is around 7-14 working days.
3, What's your package?
Usually goods are packaged with PE film in carton. The weight is 20-25kg net per carton. 500kgs/625kgs/700kgs in a pallet.
4, How can we select the exactly grade which suit for our usage?
Please contact our sales, we'll recommend suitable grade according to your typical physical properties and other related information.
