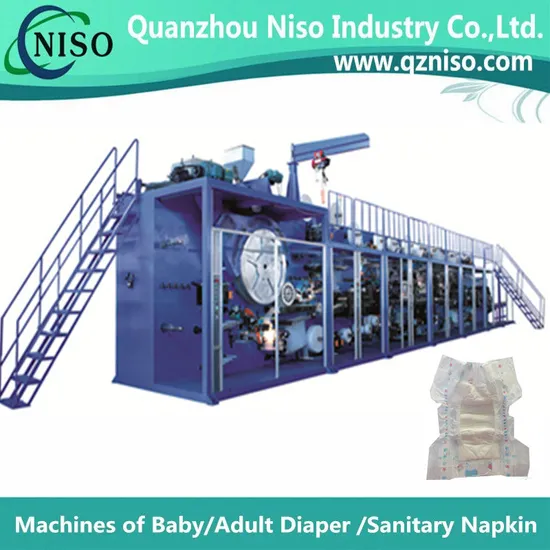

Frequency of Full Automatic Economic Baby Diaper Manufacturing Machine

Product Description

Frequency of full Automatic Economic Baby Diaper Manufacturing Machine
Technical Parameter

Model	YNK400-FC
Type	Frequency type
Capacity	400-450pcs/min( Medium size)
Machine size	L:20-36m,W:5-7m,H:5-6m.(According to customer's plant size)
Operation area	L:20-36m,W:5-7m,H:5-6m
Install power	220KW
Air compressor	3000-4000NL/min
Total weight	60T
Operator Qty	1-2
Efficient rate	>85%
Reject rate	<2%
Packing	Antirust oil & PE film cover & Seaworthy wooden box.
H.S Code	8441809000
Origin	Fujian,China
Delivery time	120days after receiving the deposit.
Payment	T/T, L/C
Standard	CE,ISO,SGC

Main Product Feature
1. produce regular baby diaper,economic baby diaper and high grade baby diaper
2.Materials of stereo-protection complex and molded on economic baby diaper manufacturing machine.
3.Waistband,frontal tape and side tape are cut automatically
4.Extension of rubber band can be regulated
5.The quantity of SAP and fluff pulp can be adjusted freely
6. Raw materials automatic unwinding system,automatic tension control system,automatic splicing units,automatic rejection units,automatic web guard system.
7.Frontal tape and side tape out-set from the main machine to make it convenient to change raw material
8. Machine attached with fully automatic packing machine(stacker),make packing simpler and save labor force
9. Diapers making machine equipped with production door
10.Touchable Screen:Machine switch on/off,running speed,time,counting pieces,parameter setting,alarm,error display,error enquiry(functions setting appear on screen are different according to different machine type)
Optional device:
1:Perfume spraying unit
2:Wetness display function
We also offer the following type

model	driven mode	speed(PCS/MIN)	weight(T)	capacity	machine size(L*W*H)
YNK500-SV	full servo driving	500-600	60	330kw	31*8*5.5m
YNK450-HSV	semi-servo driving	400-450	60	240kw	27*8*5.5m
YNK400-FC	inverter driving	400-450	60	190kw	27*8*5.5m

Raw Materials needed for Diaper Manufacturing.
1. Baby diapers C Grade:
pulp + hydrophilic N.W + hydrophobic N. W + tissue paper + PE film + SAP + hot melt glue + BOPP frontal tapes + BOPP side tape + Spandex
2. Baby diapers B-Grade:
pulp + hydrophilic N.W + hydrophobic N. W + tissue paper + PE film (breathable PE film) + SAP + hot melt glue + BOPP frontal tapes + BOPP side tape + ADL + Spandex + Elastic Waistband
3. Baby diapers A-Grade:
pulp + hydrophilic N.W + hydrophobic N. W + tissue paper + clothlike laminated film+ SAP + hot melt glue + hook side tape + Loop frontal tape+ ADL + Spandex + Elastic Waistband
Packing & Delivery
If any interesting,pls feel free to contact me.
