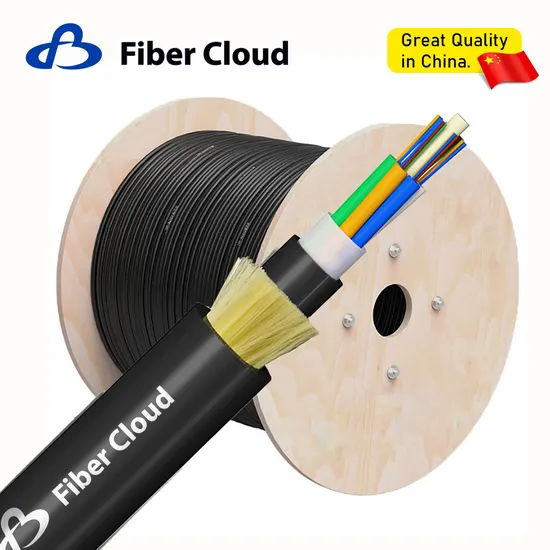

Double PE Jacket Self-Supporting Aerial Span 300m ADSS G652D Fiber Optic Cable

Product Description

All Dielectric Self-Supporting Aerial ADSS Optical Fiber Cable Product Description ADSS optical cable complies with IEEE 1222 as well as IEC60794-1 standard.
• Can be installed without shuting off the power.
• For overhead power lines under 110kV, PE outer sheath is applied.
• For power lines equal to or over 110kV, AT outer sheath is applied.
• Excellent AT performence.The maxmium inductive at the operating point of AT sheath can reach 220KV.
• Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops.
• Large span lengths and the largest span is over 1000m.
• Good performence of tensile strength and temperature.
• The design life span is over 30 years.
Product Parameters Technical Parameters

Ref. outer diameter	Ref. Weight(kg/km)		Rec. daily max working tension	Max allo wable working tension	Break strength	Strength member CSA	Modulus of elasticity	Heat expansion coefficient	Suitable span(m) NESC Standard(m)
(mm)	PE sheath	AT sheath	(kN)	(kN)	(kN)	(mm2)	(kN/mm2)	×10-6/K	A	B	C	D
11.8	117	124	1.5	4	10	4.6	7.6	1.8	160	100	140	100
12	121	129	2.25	6	15	7.6	8.3	1.5	230	150	200	150
12.3	126	134	3	8	20	10.35	9.45	1.3	300	200	290	200
12.6	133	141	3.6	10	24	13.8	10.8	1.2	370	250	350	250
12.8	138	145	4.5	12	30	14.3	11.8	1	420	280	400	280
13.1	145	153	5.4	15	36	18.4	13.6	0.9	480	320	460	320
13.5	155	163	6.75	18	45	22	16.4	0.6	570	380	550	380
13.8	163	171	7.95	22	53	26.4	18	0.3	670	460	650	460
14.4	177	186	9	26	60	32.2	19.1	0.1	750	530	750	510
14.6	182	191	10.5	28	70	33	19.6	0.1	800	560	800	560
14.8	195	204	12.75	34	85	40	20.1	0.1	880	650	880	650

NESC Standard(m):Applicable climate conditions of cable can be divided into four categories

Climate Type	Wind Speed(m/s)	Ice(mm)	Extra Load(N/m)
A	25	0	0.7
B	35	0	0.7
C	10	5	2.5
D	10	10	4.4

Optical Characteristics

Fiber Type	attenuation				bandwidth		Aperture value	Cable cutoff wavelength
	(+20ºC)
	@850nm	@1300nm	@1310nm	@1550nm	@850nm	@1300nm
G.652	---	---	≤0.36dB/km	≤0.22dB/km	---	---	---	≤1260nm
G.655	---	---	≤0.40dB/km	≤0.23dB/km	---	---	---	≤1450nm
50/125µm	≤3.3dB/km	≤1.2dB/km	---	---	≥500MHz·km	≥500MHz·km	0.200±0.015 NA	---
62.5/125µm	≤3.5dB/km	≤1.2dB/km	---	---	≥200MHz·km	≥500MHz·km	0.275±0.015 NA	---

Match ADSS installation accessories and installation drawings.
