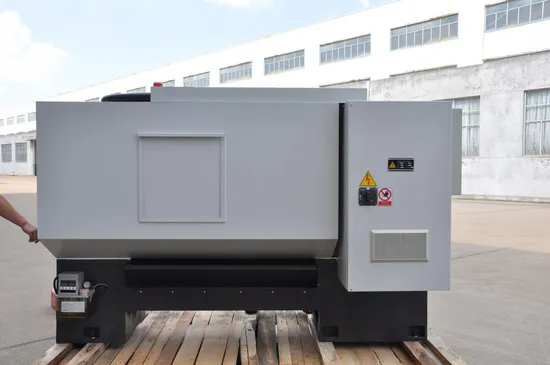

Ck6130 Advanced Technology Flat Bed Oil Country Metal Micro CNC Lathe Machine
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
CK6130
Type
Single-Axis Automatic Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Transport Package
Wood Case
Specification
1500× 945× 1380mm
Trademark
MacTech
Origin
Jiangsu
Product Description
Product DescriptionFeatures :
Either vertical or horizontal 4-stataion or 6-stataion tool post as well as gang tool can be selected. The post is located on precision contrite gears with a high repeated positioning accuracy.
| Item | Unit | CK6130 |
| Processing | ||
| Max.cutting Dia. for disc parts | mm | 300 |
| Max. cutting Dia. for axle parts | mm | Ø135/Ø100(Gang tools) |
| Max.workpiece length | mm | 500 |
| Max. turning length | mm | 390 |
| 6-way turret Max. turning length | mm | 280 |
| 6-way turret Max. turning diameter | mm | 185 |
| Spindle | ||
| Spindle nose | D4 or A2-5 | |
| Spindle bore | Ø | Ø38 or Ø43 |
| Taper of spindle hole | MT.No.5 or40° Taper | |
| Steps of spindle speed | Stepless | |
| Range of spindle speed | rpm | 200~3500 |
| Feed | ||
| Rapid feed for axis Z | m/min | 10 |
| Rapid feed for axis X | m/min | 8 |
| Travel | ||
| Max. travel of axis Z | mm | 460(18") |
| Max. travel of axis X | mm | 165/260(Gang tools) |
| Turret | ||
| Tool post stations | Gang tool post or power tool post | |
| Tool cross section | mm | 16×16 |
| Tailstock | ||
| External diameter of tailstock sleeve | mm | 50 |
| Taper of tailstock sleeve | MT.No.3 | |
| Max. travel of tailstock sleeve | mm | 130 |
| Others | ||
| Min.input | 0.001 | |
| Power of main motor | kW | 3 |
| Power of cooling pump | W | 120 |
| Overall dimensions (L×W×H) | mm | 1500×945×1380 |
| Net weight | kg | 1100 |
