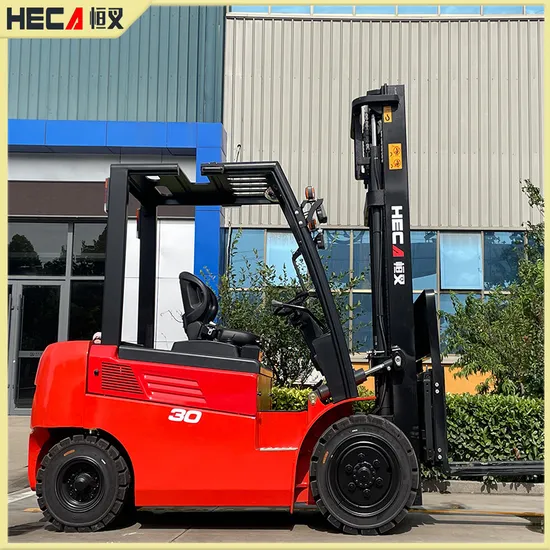

Mini 3 Ton Electric Forklift with 48V Battery and 5m Lifting Height

Product Description

EF330A Balanced 3Ton electric forklift Product Description Advantages of 3.0-ton electric forklift:
-Carrying capacity of 3000kg, stable and economical.
-High strength top protection frame, optional with tempered glass or metal cover plate, plug-in one-way opening, convenient and easy to exchange for batteries.
-ISO quality/management/environmental certification, European CE certification, Russian EAC certification
-Wide view gantry,
-Front and rear working LED lights, optional with three red and blue range lights,
-Branded batteries and chargers
-SEVCON or Zapi AC controller
-Lead acid battery: Adopting PZS German standard lead acid battery, optional with automatic water adding system
-Lithium battery: Using well-known domestic brand batteries. Powerful and maintenance free; The battery can be equipped with counterweights to save vehicle costs.
-Reasonable structure, better controller heat dissipation
-Adopting powerful AC domestic maintenance-free drive motors to improve overall performanc
Product Parameters

Model	EF330A	EF335A
Loading Capacity(KG)	3000	3500
Loading Centre(MM)	500	500
Mast Lowered Height(MM)	2230	2230
Safegurad Height(MM)	4260	4265
Length(MM)	2680	2730
Width(MM)	1260	1260
Min.Turning Radius(MM)	2480	2500
Weight(KG)	4200	4390
Driving Motor(KW)	16.6	16.6
Pump Motor(KW)	21	21
Lithium Battery(V/AH)	80	80
Battery Weight(KG)
Controller Type	AC	AC
Controller Manufacturer	ZAPI	ZAPI

Characteristics of Electric Forklifts
1.SMART Four (4) wheeled forklifts are designed to be efficient, quiet, and provide a clean air environment.
2. High performance AC drive motors are installed parallel to the frame width, lowering the position of the battery compartment, resulting in a lower center of gravity and enhancing stability.
3. The forklift is equipped with AC drive, pump, and steering motor, providing high torque performance and reducing maintenance.
4. The high-quality J-beam and C-channel structure create a sturdy and rigid mast, eliminating deflection and achieving maximum durability and performance.
5. Large handles and lower step heights allow operators to easily enter and exit the driver's seat Advanced suspension seats have fully adjustable front, rear, and lumbar positions, providing additional comfort for operators of various sizes. The position of the right hand forward hydraulic control rod conforms to ergonomics, is easy to reach, and can achieve single hand multifunctional. Adopting ordinary car pedal layout, occupying a large area.
Detailed Photos
1.Ergonomics
Stepping two steps makes it easy to enter the cab.
The adjustable steering column allows the driver to adjust the position according to their own needs.
Integrated lighting switch and steering wheel.
The ABS dashboard in the driver's cab is durable and aesthetically pleasing.
The design of the joystick position conforms to ergonomic principles and can reduce driver fatigue.
The view of the mast is clear and wide, with high visibility.
2.Favorable security and stability
The lower center of gravity of the entire vehicle design, increasing the wheelbase and wheelbase of the vehicle, not only greatly improves the stability of the vehicle, but also increases the remaining load capacity of the vehicle
Adopting a high-efficiency integrated axle box drive axle, the structure is compact and the power is strong.
Multifunctional display screen, displaying usage time, fault codes, battery status, and forklift operation information.
Fully AC motor with regenerative braking.
The operator in place perception system completely avoids unsafe accidents caused by Incorrect operation when the driver is not in the vehicle.
The hydraulic and electrical components are equipped with overload protection to eliminate unsafe factors during use.
3.Efficient, environmentally friendly, and energy-saving
The walking motor adopts a new generation of high-efficiency three-phase AC motor, which has high speed, excellent acceleration, reliable driving performance, climbing ability, and greatly improves production efficiency and productivity
Adopting efficient dual module low noise gear pump and high-precision gear reduction device, the overall vehicle noise is below 65 decibels
No emissions, no pollution, more environmentally friendly
The use of efficient and energy-saving LED lighting fixtures throughout the vehicle combines a series of advantages such as long service life, high efficiency and energy conservation
Regenerative braking function is activated when stopping acceleration, reversing front and rear, driving on slopes, and braking, allowing the battery to recover energy and extend battery life
4.intelligent control
Multiple operation function modes are suitable for different operating conditions
Accurate computational control ensures vehicle driving stability
The perfect combination of compact all AC drive motors and efficient frequency converters
Large LED LCD control panel for real-time monitoring of vehicle status
Additional multiple optional functions to achieve multiple speed control, job control, function display, etc
Timed charging function to avoid peak electricity consumption and lower usage costs
5.Easy to maintain, maintenance free
Maintenance-free three-phase AC motor for the entire vehicle, with high protection level and no vulnerable parts, significantly reducing maintenance costs
Application of CAN bus control technology to achieve reliable data transmission
