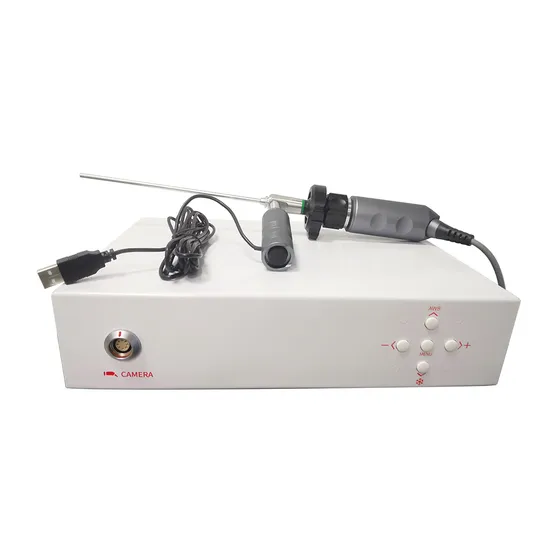

Cheap Price CMOS 720p Endoscopy Camera Portable Endoscope Imaging System for Rigid Endocopic Ent

Product Description

Product Parameters

Product Item No.

TU-VC01A

Endoscope Video Processor Parameters
Input	CVBS(1000TVL)
Output	VGA+CVBS
Resolution	720P 60fps
OSD MENU	UP,DOWN,LEFT,RIGHT,MENU button
IMAGE SENSOR	1/2.8" Sony CMOS
BRIGHTNESS	1-20 steps
SHARPNESS	1-10 steps
BACKLIGHT	OFF/BLC/HLC/WDR
AWB	AUTO/MANUAL
FREZZ	SUPPORT
D-ZOOM	1-10x
Endoscope mode	Transforaminal/Fiber/Arthroscope/Cystoscope/Hystero/Raparoscope/E.N.T
TEMPERATURE	-30ºC to 70ºC
LANGUAGE	CHINESE/ENGLISH....etc
Power Supply	DC12V 150mA<2W
Camera Head Size	101.84*38.5mm
Image Processor Size	300*200*85mm

Products Description Product Composition: CVBS endoscope camera system is fully functional endoscopy solutions of specifically designed for industrial medical. CVBS input, VGA/CVBA output, there are control menu and shortcut key function. Widely used in medical industry.
TU-VC01A Features: 1.1/2.8" SONY CMOS, 720p resolution;
2.1-20 steps brightness adjustment, 1-10 steps sharpness, 1-10x D-zoom;
3. FRESS, AWB, Multi- languages; Image Processor Box SET/UP/DOWN/LEFT/RIGHT SET: 1. For Enter and confirm functions. Press the MENU, you can enter the camera menu, if you change the parameter of the camera, press MENU if for confirm.
2. Left, right, up, down are for direction Function. 3. The up, down, left, right also written the hot keys function already, UP for AWB, DOWN for Freeze, LEFT for zoom in, RIGHT for zoom out Shortcut key AWB:Before use,point the lens at the white paper, press the white balance button and wait for the white balance to adjust. FREEZE:Make the image to freeze The TU-VC01A packing include:
1. Image Processor Box;
2. Power Cord;
3. VGA Cord;
4. CVBS Cord.
Please Note: The handle camera is OPTIONAL part. Recommended Product
