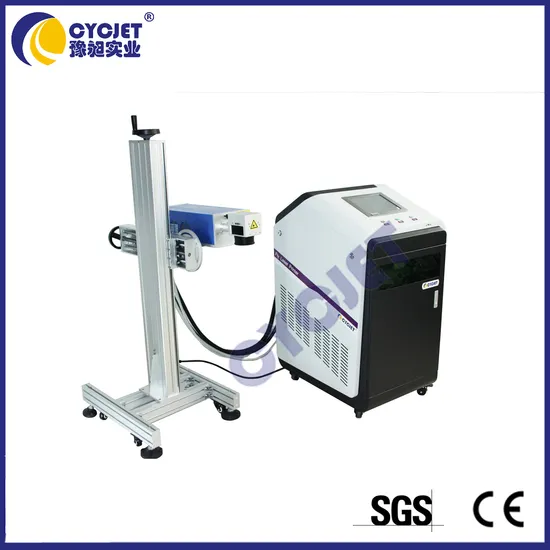

Cycjet 03W 05W 10W UV Laser Marking Machine on Plastic Pipe and Fitting
| US$55,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
UV03F
Cooling System
Water Cooling
Technical Class
Pulse Laser
Laser Wavelength
Deep Ultraviolet
Laser Classification
Solid Laser
Type
UV
Marking Method
Scanning Marking
Name
Laser Marking Machine
Application
Bottle Caps, Bottle
System Language
English
Cooling
Air
Pulse Frequency
20 kHz - 100 kHz
Marking Range
110 mm X 110 mm (Can Be Customized)
Standard Package
Wooden Case
Weight
110kgs
Transport Package
Wooden Case with Foam
Specification
155X55X56cm
Trademark
CYCJET
Origin
Shanghai
HS Code
8456110090
Production Capacity
300units/Month
Product Description
Application Scope:Suitable for electronic components, electrical products, IT industry, auto parts, hardware tools products, precision instruments, gift accessories, medical equipment and other high-end products of precision, fine logo printing. Typical applications such as, plastic (PA66) insulation flying laser marking, metal plate laser marking, packing box body online laser marking, etc.
Advantage: 1, Perfect design software, easy to learn and operation2, Less Mechanical Faliure3, Operation Status: Fly and Standstill4, The PVC, PPR,PE Pipe Code will change color after mark,the demonstration of effects is better than ink priter. 5, The code can not move or erase it6, No consumer goods, less production cost Terms Of Payment: T/T, LC After-sale Service 1, Warranty Valid: 18 Month2, Online or Spot Training
Details and Specifications:
| PERFORMANCE | Frame Material | ALUM. | ||
| Laser Device | UV Laser Device | |||
| Power | ≥3W | |||
| Laser Wavelength | 355 nm | |||
| Galvanometer deflection | High Precision dual dimensional scanning system | |||
| Marking speed | ≤12000mm/s | |||
| Master Control | Highly integrated board with 10 inch Color Touch screen | |||
| Operating System | LINUX based with High Speed Pipe Marking Software | |||
| Cooling | Water Cooling System | |||
| Marking Specifications | Focus Distance | Focus 190mm | ||
| Marking line type | Dot matrix, bold, vector all in one(both dot matrix and vector) | |||
| Minimum line width | 0.01mm | |||
| Repeatability accurate positioning | 0.003mm | |||
| Marking Area | Standard 110mm×110mm(Customized available) | |||
| Marking height | Standard Character height 110mm | |||
| Marking Length | Unlimited | |||
| Positioning mode | Red light positioning and focusing | |||
| Number of characters | Any line(multi-line) within marking range | |||
| Line Speed | Standard 0~230m/min (depends on material &text) | |||
| Support type | Typeface | Chinese , English, available to customized | ||
| Marking | Number, logo, image, letter, serials number, system date & time,etc... | |||
| File format | CNF/PLT | |||
| Bar code | CODE39,CODE128,CODE126,QR,Z-Code | |||
| Others | Power Supply | 100-220V/50-60HZ | ||
| Power Consumption | 800W | |||
| Net Weight | 88kg | |||
| Oversize | 140cm X 135cm X 75cm | |||
| Environmental Requirement | 0ºC-45ºC; humidity≤95%; non-condensing; no shaking | |||
| The Quality Standard of CYCJET UV Laser Marking Machine | ||||
| GB 7247-87 | Radiation safety of laser products, requirements for equipment classification and user's Guide | |||
| GB10320-88 | Electrical safety of laser equipment and facilities | |||
| ISO 9000-3 | International software standards | |||
| GB/T12123-89 | Sales packaging process | |||
| IEC 536 | Classification of electrical and electronic equipment for protection against electric shock | |||
